Ford Bronco taillamp assembly diagrams for 1980-86, 1987-91 and…

'80-96 F-series & Bronco Taillamps
IF THE IMAGE IS TOO SMALL, click it.

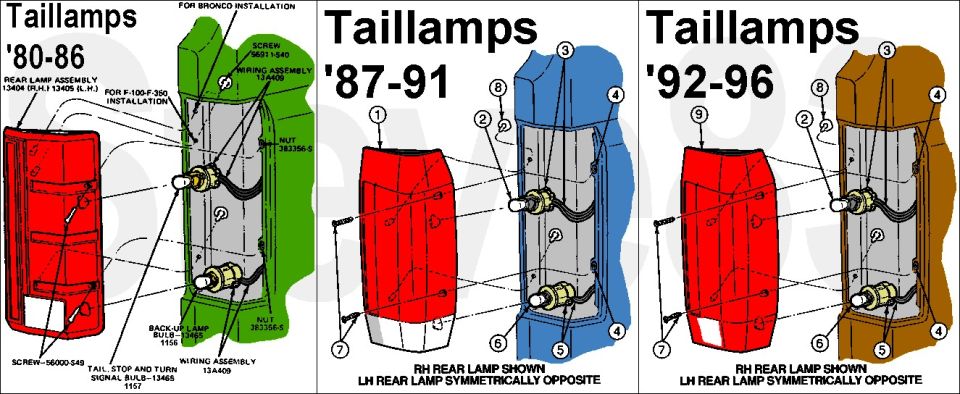

1 Rear Lamp ('87-91) RH 13404; LH 13405
2 Stop/Turn/Hazard/Parking Bulb (3357) 13465
3 Stop/Turn/Hazard/Parking Socket & Wiring Assembly 13A409
4 Nut (2 Req'd) 383356
5 Reverse Socket & Wiring Assembly 13A409
6 Reverse Bulb (3356) 13465
7 Screw (2 Req'd) 56000-S49
8 Screw (2 Req'd) 56911-S40 or N801603-S61
9 Rear Lamp ('92-96) RH 13404; LH 13405

Some '87-89 trucks may use '80-86 bulbs & sockets.
