What is the Ford part number for the Dana 50 IFS axle housing?

The housing is labeled 3010 in the diagram.

What are the part numbers for the Dana 50 IFS axle arm assemblies?

The right-hand axle arm assembly is 3B402 and the left-hand axle arm assembly is 3B403.

What part number is the steering knuckle on a Dana 50 IFS?

The steering knuckle is 3130 for the right-hand side and 3131 for the left-hand side.

What universal joint kit does the Dana 50 IFS front axle use?

The diagram shows Universal Joint Kit 3249 at both shaft joints.

What are the shaft assembly part numbers for the Dana 50 IFS?

Shaft assembly 3219 for the right-hand side and 3220 for the left-hand side; a separate shaft 3M387 and slip shaft are also shown.

Home/ Registry/ Ford/ Bronco/ 1980-1986/ “That dirty old truck”/ Photo supermotors.net/registry/media/1168579

Dana 50 IFS Front Axle Exploded Parts Diagram - Ford Part Numbers

Dana 50 IFS front axle exploded parts diagram with labeled components and part numbers

‹ ›

Reference · 1980-1986 BroncoAll 61 exploded parts diagrams

Dana 44 IFS TTB Front Axle Exploded Diagram - Ford Bronco & F-150 4x4 Parts

1994-1997 Ford F-Series/Bronco RKE, Anti-Theft & Amp Module Mounting Diagram

Ford 8.8" Semi-Floating Rear Axle Exploded Diagram: Parts & Part Numbers

Dana 50 IFS Front Axle Exploded Parts Diagram - Ford Part Numbers

Ford FS-6 A/C Compressor Exploded Diagram - Clutch, Front & Rear Head Parts

Ford Steering Column Wiring Diagram - Multi-Function Switch & Shift Interlock

1987-95 Ford Ignition RFI Capacitor Installation Diagram - 4.9L 5.0L 5.8L 7.5L

Ford Dual-Function Fuel Reservoir (Early) Diagram - Dual Tank Flow & Filter

61exploded parts diagrams1980-1986 Ford Bronco More reference

Wiring diagram

Ford accessories catalog page with cellular mobile telephone and 40-channel CB emergency radio

Brochure

Ford door certification label dated 11/95 with GVWR 6300LB, P235/75R15XL tires and VIN 1FMEU15H4TLA76236

Spec plate

1992 Ford E4OD Transmission Fault Code Diagnosis Chart - DTC List & Symptoms

Service procedure

Schematic

1996 Ford Bronco/F-Series Starting System - Section 03-06 Contents

Manual page

Trim panel hole layout photos for positions A, B and C with tape measure readings from the body line

Blueprint

Ford 1996 5.8L vehicle information decal with vacuum hose routing diagram and ASF-32P plug

Vacuum routing

Torque spec

'95 F150 fuse and relay chart with fuse panel layout, ATC and Maxi fuse amp tables

Fuse chart

Dana 50IFS Twin Traction Beam (TTB) Exploded
IF THE IMAGE IS TOO SMALL, click it.

Shock absorber lower bolt N605704S439 or N605704S2

See also:
What's the DIFF?
Dana Axle Expert
. . .

Part of 1980-1986 Ford Bronco Exploded Parts Diagrams

Owner caption January 2022 · Photo 6020 of 6546

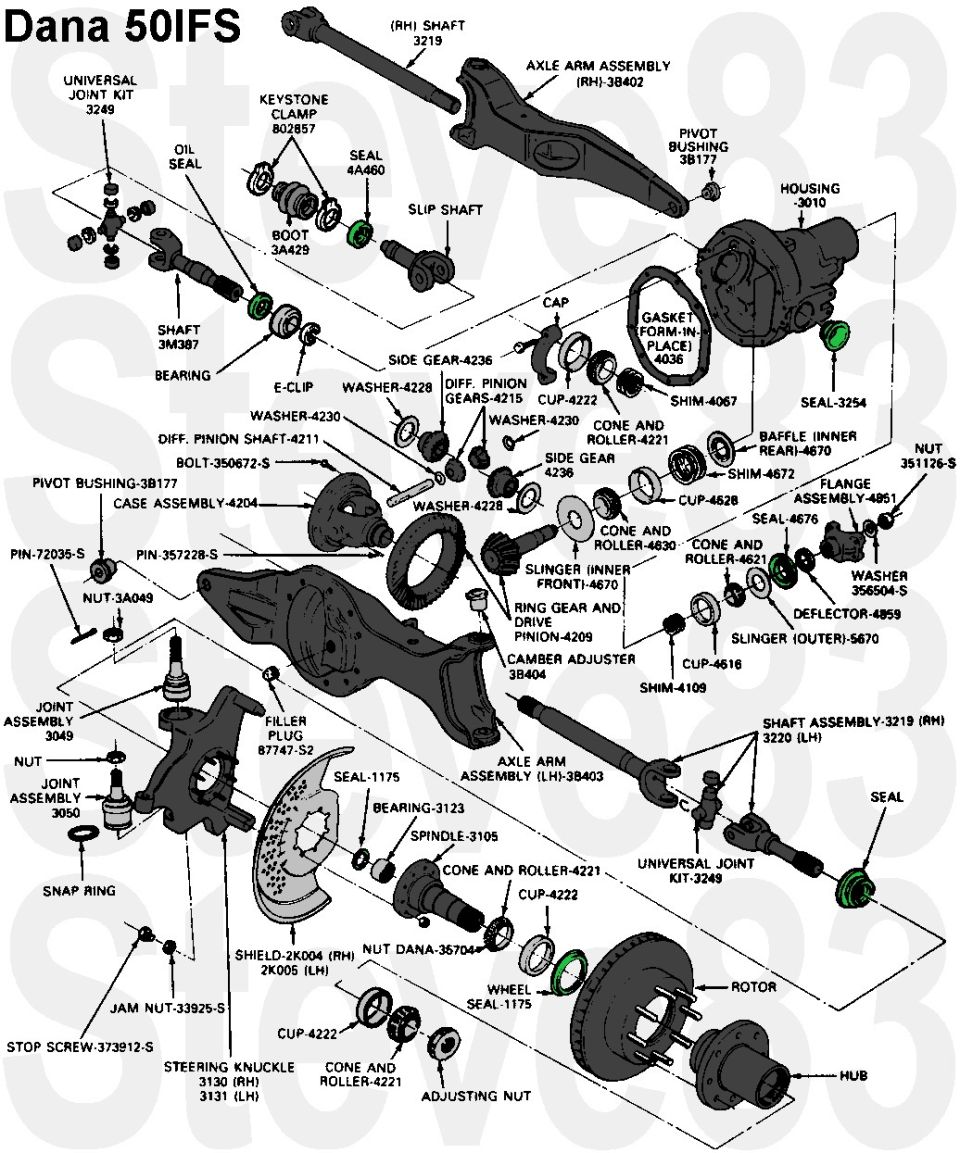

This document is an exploded parts diagram of the Dana 50 IFS (Independent Front Suspension) front axle, as used on Ford trucks. It illustrates every major component of the axle assembly with Ford base part numbers, including the axle housing (3010), right and left axle arm assemblies (3B402/3B403), axle shafts (3219 RH / 3220 LH), slip shaft, universal joint kits (3249), differential case assembly (4204), ring gear and drive pinion (4209), side gears (4236), differential pinion gears (4215) and shaft (4211), various bearings, cones and rollers (4221, 4621, 4630), cups (4222, 4616, 4628), shims, seals (3254, 4676, 1175, 4A460), slingers, deflector (4859), pivot bushings (3B177), camber adjuster (3B404), steering knuckle (3130 RH / 3131 LH), ball joint assemblies (3049, 3050), spindle (3105), spindle bearing (3123), brake dust shield (2K004 RH / 2K005 LH), rotor, hub, and associated hardware such as the keystone clamp (802857), jam nut (33925-S), stop screw (373912-S), and filler plug (87747-S2). A reader can identify how the front axle, differential, and hub/spindle assemblies fit together and look up part numbers for ordering replacement components or planning a rebuild.
