What is the torque spec for the transaxle drain plug?

10 - 20 N·m (1.0 - 2.0 kg-m, 7 - 14 ft-lb).

What torque is specified for the final gear to differential case bolts?

74 - 88 N·m (7.5 - 9.0 kg-m, 54 - 65 ft-lb).

How tight should the clutch housing to transmission case bolts be?

16 - 21 N·m (1.6 - 2.1 kg-m, 12 - 15 ft-lb).

What is the torque for the support rod to transaxle?

31 - 42 N·m (3.2 - 4.3 kg-m, 23 - 31 ft-lb).

What torque should the reverse/gear switch on the transmission case be tightened to?

2.5 - 3.9 N·m (0.25 - 0.4 kg-m, 1.8 - 2.9 ft-lb).

Home/ Registry/ Nissan/ Micra/ 1990 Nissan Micra/ Photo supermotors.net/registry/media/252917

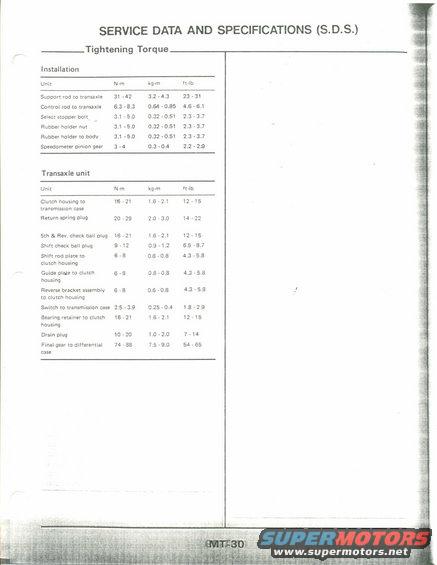

Nissan Micra Manual Transaxle Tightening Torque Specs - MT-30 S.D.S.

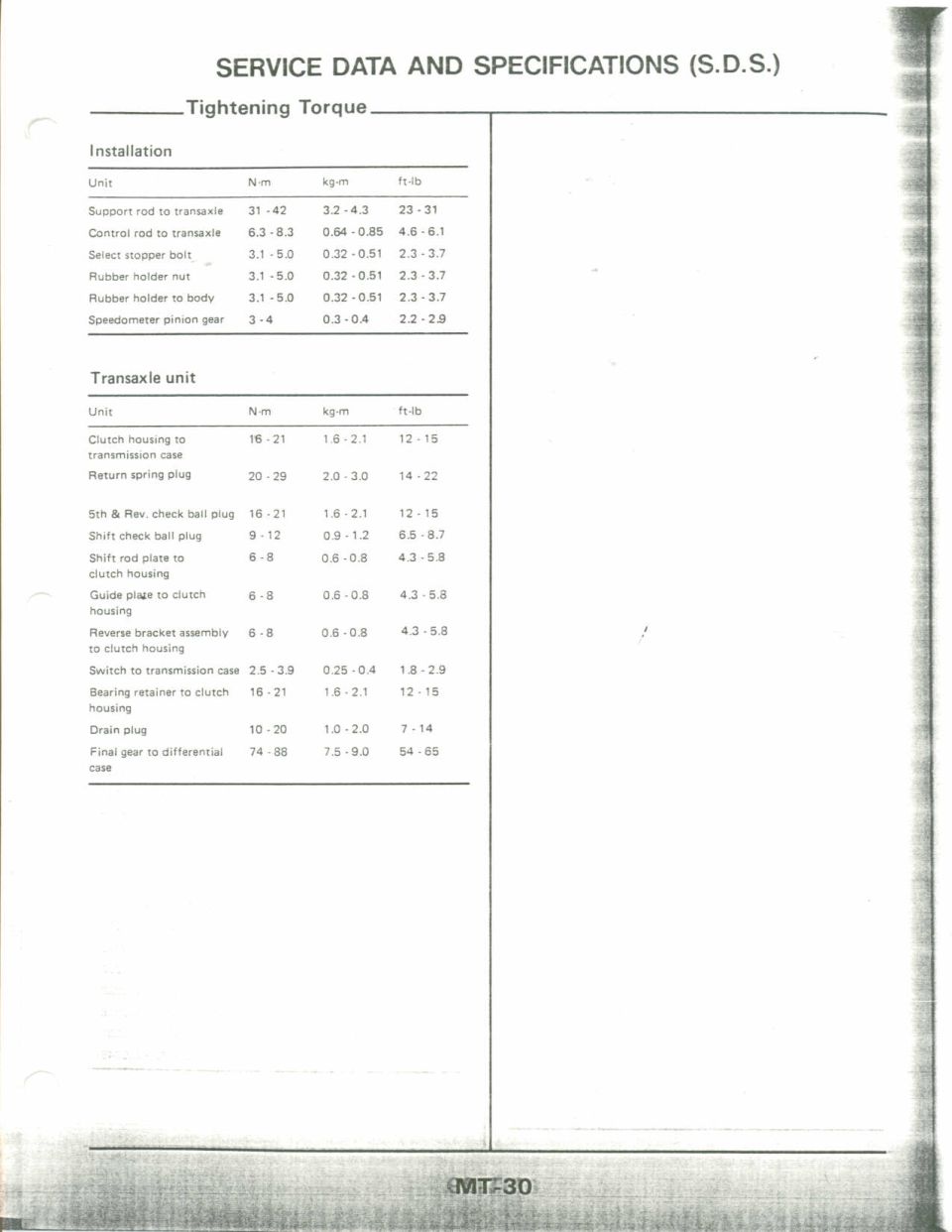

Service Data and Specifications tightening torque chart for transaxle and shift linkage fasteners

‹ ›

Manual transaxle SDS tightening torque table: clutch housing to case 16-21 N-m, final gear to differential case 74-88 N-m, drain plug 10-20 N-m.

AI caption October 2005 · Photo 178 of 412

This document is a Service Data and Specifications (S.D.S.) page (page MT-30) from a manual transmission/transaxle section of a factory service manual, uploaded to the gallery of a 1990 Nissan Micra. It provides tightening torque specifications in two tables, with values given in N·m, kg-m, and ft-lb. The 'Installation' table covers transaxle installation fasteners: support rod to transaxle (31-42 N·m), control rod to transaxle (6.3-8.3 N·m), select stopper bolt, rubber holder nut, rubber holder to body (all 3.1-5.0 N·m), and speedometer pinion gear (3-4 N·m). The 'Transaxle unit' table covers internal and case fasteners: clutch housing to transmission case (16-21 N·m), return spring plug (20-29 N·m), 5th & reverse check ball plug (16-21 N·m), shift check ball plug (9-12 N·m), shift rod plate, guide plate, and reverse bracket assembly to clutch housing (all 6-8 N·m), switch to transmission case (2.5-3.9 N·m), bearing retainer to clutch housing (16-21 N·m), drain plug (10-20 N·m), and final gear to differential case (74-88 N·m). A reader can use this page to correctly torque fasteners during transaxle removal, installation, and overhaul.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What is the torque spec for the transaxle drain plug?: 10 - 20 N·m (1.0 - 2.0 kg-m, 7 - 14 ft-lb).
What torque is specified for the final gear to differential case bolts?: 74 - 88 N·m (7.5 - 9.0 kg-m, 54 - 65 ft-lb).
How tight should the clutch housing to transmission case bolts be?: 16 - 21 N·m (1.6 - 2.1 kg-m, 12 - 15 ft-lb).
What is the torque for the support rod to transaxle?: 31 - 42 N·m (3.2 - 4.3 kg-m, 23 - 31 ft-lb).
What torque should the reverse/gear switch on the transmission case be tightened to?: 2.5 - 3.9 N·m (0.25 - 0.4 kg-m, 1.8 - 2.9 ft-lb).
