Transmission mainshaft and gears disassembly manual page MT-12 w…

Transmission mainshaft and gears disassembly manual page MT-12 with diagrams and specs
Transmission mainshaft and gears disassembly manual page MT-12 with diagrams and specsOriginal file
Transmission mainshaft and gears disassembly manual page MT-12 with diagrams and specs

87 Service ManualView all 403

Exploded view of transmission gear components with shafts, gears, bearings, and synchros Exploded view of transmission shift components with forks, rods, and shift mechanism Manual transaxle disassembly steps with figures: removing case bolts, position switch, reverse idler gear, bea Transaxle disassembly steps: removing final drive, shift rod plate, retaining pin, shifter, welch plug and sel Clutch housing and transmission case repair: input shaft oil seal, control shaft seal, rear bearing, welch plu Clutch housing and transmission case repair: mainshaft front and rear bearing outer race removal and installat Input shaft front bearing repair: remove snap ring, pull bearing, press new bearing, with snap-ring thickness Transmission mainshaft and gears disassembly manual page MT-12 with diagrams and specs Service manual page on transmission mainshaft and gears repair, MT-13 Manual page showing mainshaft and gear repair with synchronizer assembly and snap ring specs Service manual page on transmission mainshaft and gear repair with diagrams and specs Service manual page showing transmission mainshaft and gear assembly steps Service manual page with transmission final drive disassembly diagrams Service manual page MT-18 showing differential final drive assembly and clearance measurement diagrams. Final drive and shift control repair: retaining pin, final gear, speedometer gear, fork rod and reverse bracke Transmission service manual page on mainshaft and differential bearing preload adjustment. 403photos in this albumView all

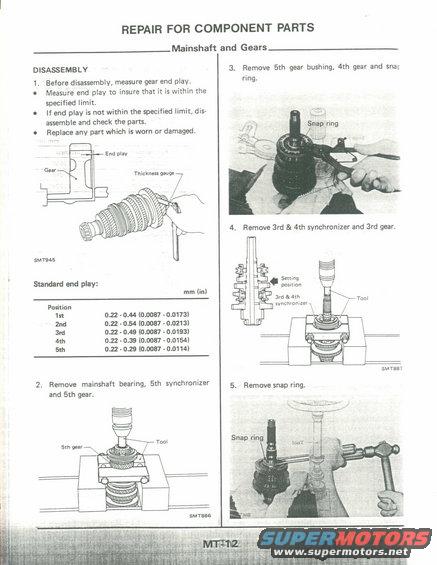

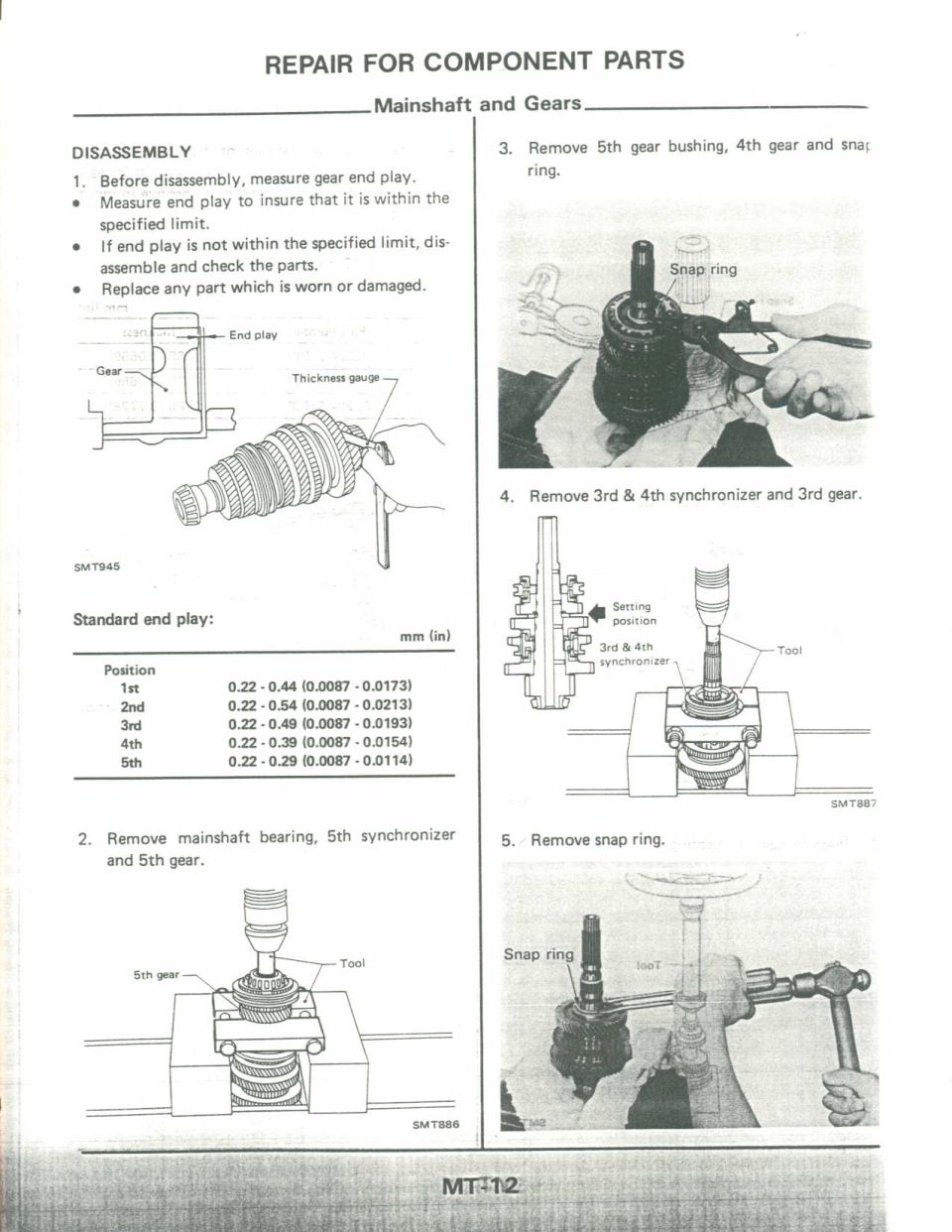

Scanned page from a manual transmission service manual titled 'REPAIR FOR COMPONENT PARTS - Mainshaft and Gears,' showing disassembly steps with illustrations of measuring gear end play, removing 5th gear bushing, synchronizers, and snap rings using shop tools. Includes a standard end play specification table in mm and inches.

AI caption · Photo 159 of 412

REPAIR FOR COMPONENT PARTS DISASSEMBLY 1. Before disassembly, measure gear end play. I Measure and play (0 insure that it is within the specified |imit. - If end play is not within the specified limit, dis- assemble and check the parts. 0 Replace any pan which is worn or damaged. End piav Thicknm gauge 5M T945 Standard and play: mm (in) Position 1n 0.22 0.44 (0.0087 - 0.0173) 2nd 0.22 - 0.54 (0.0037 - 0.0213) 3rd 022 - 0.49 (0.0087 - 0.0193] am 0.22 - 0.3 (0.0087 - 0.0154) 5. 0.22 - 0.29 (0.0087 - 0.0114) 2. Remove mainshaft bearing, 5th svnchronizer and 5th gear. T I 59. gel! smaas Mainshaft and Gears 3. Remove 5th gear bushing, 4th gear and sna; ring. semng 905mm 3rd 5 4th Tum syncnrumzer . / SMTEET 5. Remove snap ring. Snap ring
