Nissan automatic transmission disassembly manual page AT-17 with…

Nissan automatic transmission disassembly manual page AT-17 with step diagrams
Nissan automatic transmission disassembly manual page AT-17 with step diagramsOriginal file
Nissan automatic transmission disassembly manual page AT-17 with step diagrams

87 Service ManualView all 403

Service manual page AT-11 on inhibitor switch adjustment and diff side oil seal replacement Automatic transaxle removal and installation: torque converter to drive plate with runout spec Automatic transaxle removal and installation: torque converter to drive plate with runout spec Scanned service-manual page on automatic transaxle removal and installation, AT-13 Automatic transaxle major overhaul exploded view with component callouts and tightening torque key Major overhaul exploded diagram of automatic transaxle showing gears, clutches, servo, governor and case compo Automatic transaxle disassembly: drain fluid, remove converter, oil pan, control valve body and manual valve Nissan automatic transmission disassembly manual page AT-17 with step diagrams Automatic transaxle disassembly steps: lock washer, idler gear bolt, front cover bolts, output shaft, seal bus Disassembly page with exploded breakdown of internal gears, carriers, clutches, snap rings and thrust bearings Service manual page AT-20 showing automatic transmission disassembly steps with diagrams Service manual page AT-21 showing automatic transmission disassembly steps 28 through 31 Service manual page on oil pump repair with diagrams and part tables Oil pump exploded diagram with gears, housing, plate, seal rings, thrust washer plus clearance inspection figu Service manual page AT-24 with oil pump assembly diagrams Exploded diagram of automatic transaxle control valve body identifying each valve, spring, plug and separator 403photos in this albumView all

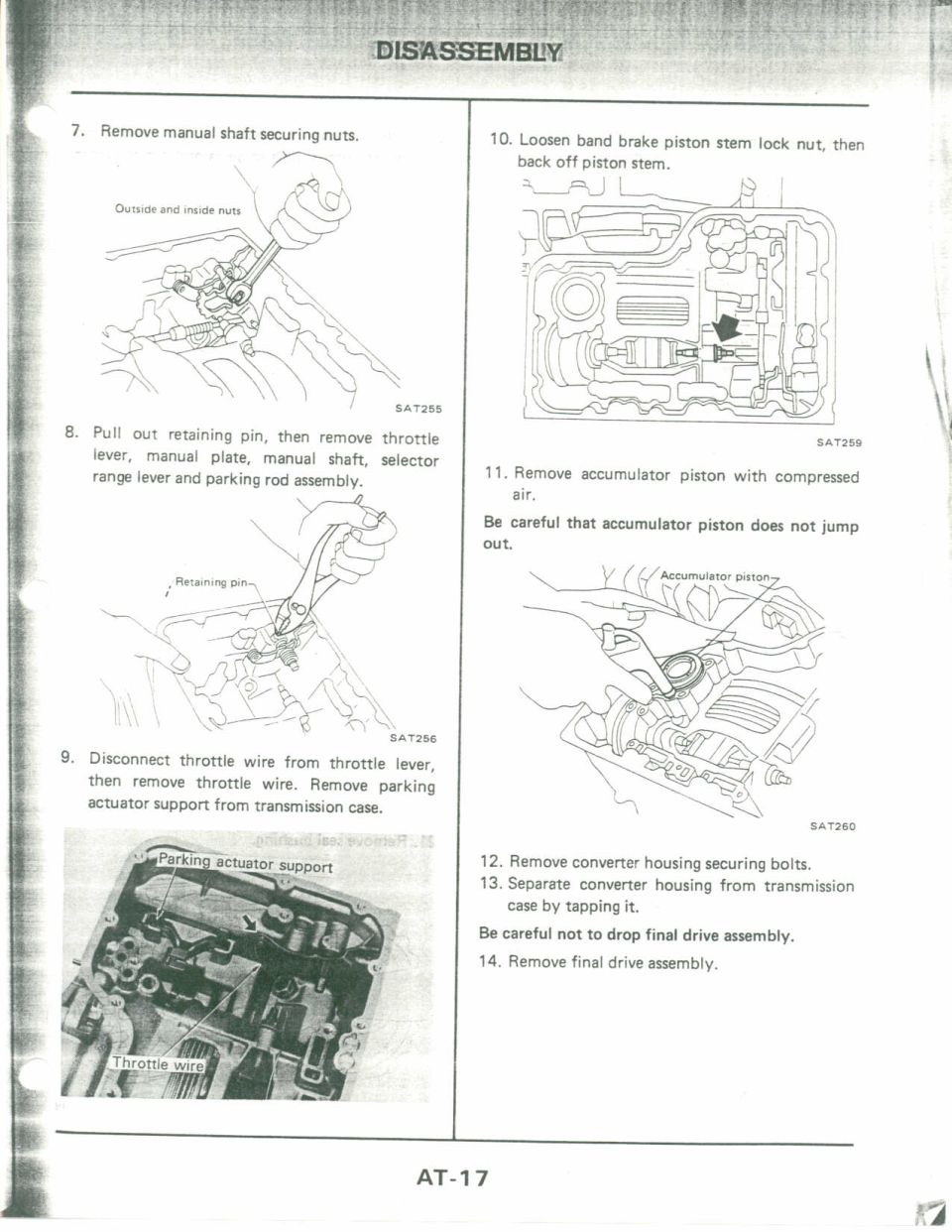

Photocopied page AT-17 from a Nissan automatic transmission service manual, headed "DISASSEMBLY," with line-art diagrams for steps 7-14 covering removal of the manual shaft securing nuts, retaining pin and throttle lever, band brake piston stem, and accumulator piston. A grainy inset photo at lower left labels the parking actuator support and throttle wire.

AI caption · Photo 199 of 412

SATZSS 8. Pull out retaining pin, then remove throttle lever, manual plate, manual shaft, selector range lever and parking rod assembly. / SATZBE 9. Disconnect throttle wire from throttle lever, then remove throttle wire. Remove parking actuator support from transmission case. 10t Loosen hand brake piston stem lock nut, then back off piston stem. : 24 l sAT259 11. Remove accumulator piston with compressed air. Be careful that accumulator piston does not jump out / ///A::umulum plnon 5At25u 12, Remove converter housing securing bolts, 13 Separate converter housing from transmission case by tapping it. Be careful not to drop final drive assembly. 14 Remove final drive assemblyv AT-1 7
