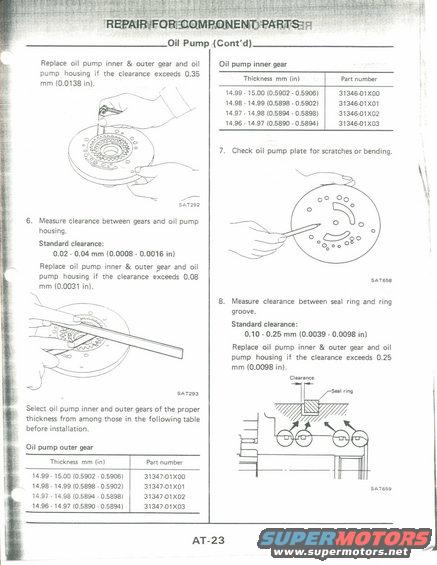

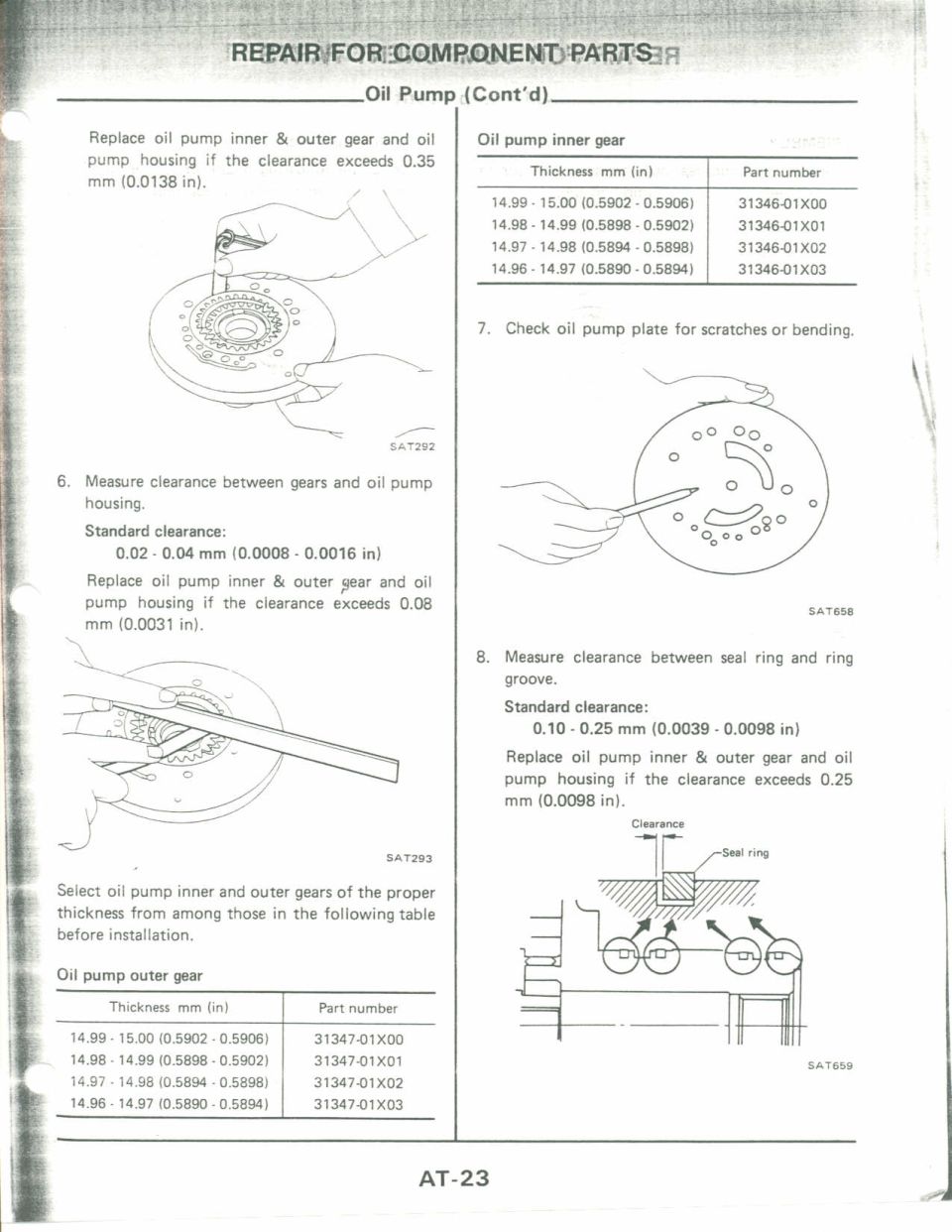

Replace oil pump inner 8i outer gear and oil pump housing if the clearance exceeds 0.35 mm (0.0138 in). 6. Measure clearance between gears and oil pump housing. Standard clearance: 0.02 - 0.04 mm (0.0008 - 0.0016 in) Replace oil pump inner 8: outer gear and oil pump housing if the clearance exceeds 0.08 mm (0.0031 in). sAr292 Oil Pump (Cont'd) Oil pump inner gear Thickness mm (in) Part number 14.99 - 15.00 (0.5902 - 0.5906) 3134501X00 14.98 - 14.99 (0.5898 - 0.59021 31346-01X01 14.97 -14.98(0.5894 - 0.5898) 3134601X02 14.96 14.97(0.5890 - 0.5894) 31346-01 X03 groove. Standard clearance: 7. Check oil pump plate for scratches or bending. stress 8. Measure clearance between seal ring and ring 0.10 - 0.25 mm (0.0039 - 0.0098 in) Replace oil pump inner & outer gear and oil pump housing if the clearance exceeds 0.25 mm (0.0093 in). Clearance . . SATZBJ 5' rim Select oil pump inner and outer gears of the proper / thickness from among those in the following table before installation. 17 Oil pump outer gear Thickness mm (in) Part number a 14.99 - 15.00 (0.5902 - 0.5906) 3134701X00 ( 1 14.98 - 14.99 (0.5898 - 0.5902) 3134701X0l 5AT659 14.97 A14.98(0.5894 - 0.5898) 3134701X02 14.96 ~ 1497 (0.5890 ~ 0.58941 31347-01X03 AT-23 a Mr
