Service manual page AT-21 showing automatic transmission disasse…

Service manual page AT-21 showing automatic transmission disassembly steps 28 through 31
Service manual page AT-21 showing automatic transmission disassembly steps 28 through 31Original file
Service manual page AT-21 showing automatic transmission disassembly steps 28 through 31

87 Service ManualView all 403

Automatic transaxle major overhaul exploded view with component callouts and tightening torque key Major overhaul exploded diagram of automatic transaxle showing gears, clutches, servo, governor and case compo Automatic transaxle disassembly: drain fluid, remove converter, oil pan, control valve body and manual valve Nissan automatic transmission disassembly manual page AT-17 with step diagrams Automatic transaxle disassembly steps: lock washer, idler gear bolt, front cover bolts, output shaft, seal bus Disassembly page with exploded breakdown of internal gears, carriers, clutches, snap rings and thrust bearings Service manual page AT-20 showing automatic transmission disassembly steps with diagrams Service manual page AT-21 showing automatic transmission disassembly steps 28 through 31 Service manual page on oil pump repair with diagrams and part tables Oil pump exploded diagram with gears, housing, plate, seal rings, thrust washer plus clearance inspection figu Service manual page AT-24 with oil pump assembly diagrams Exploded diagram of automatic transaxle control valve body identifying each valve, spring, plug and separator Service manual page on automatic transmission control valve body with spring chart and disassembly diagrams Control valve body cleaning and assembly notes with valve body photos and separator plate inspection figures Service manual page AT-28 on automatic transaxle control valve body assembly and adjustment High-reverse clutch exploded diagram with piston, springs, plates, snap rings plus disassembly figures 403photos in this albumView all

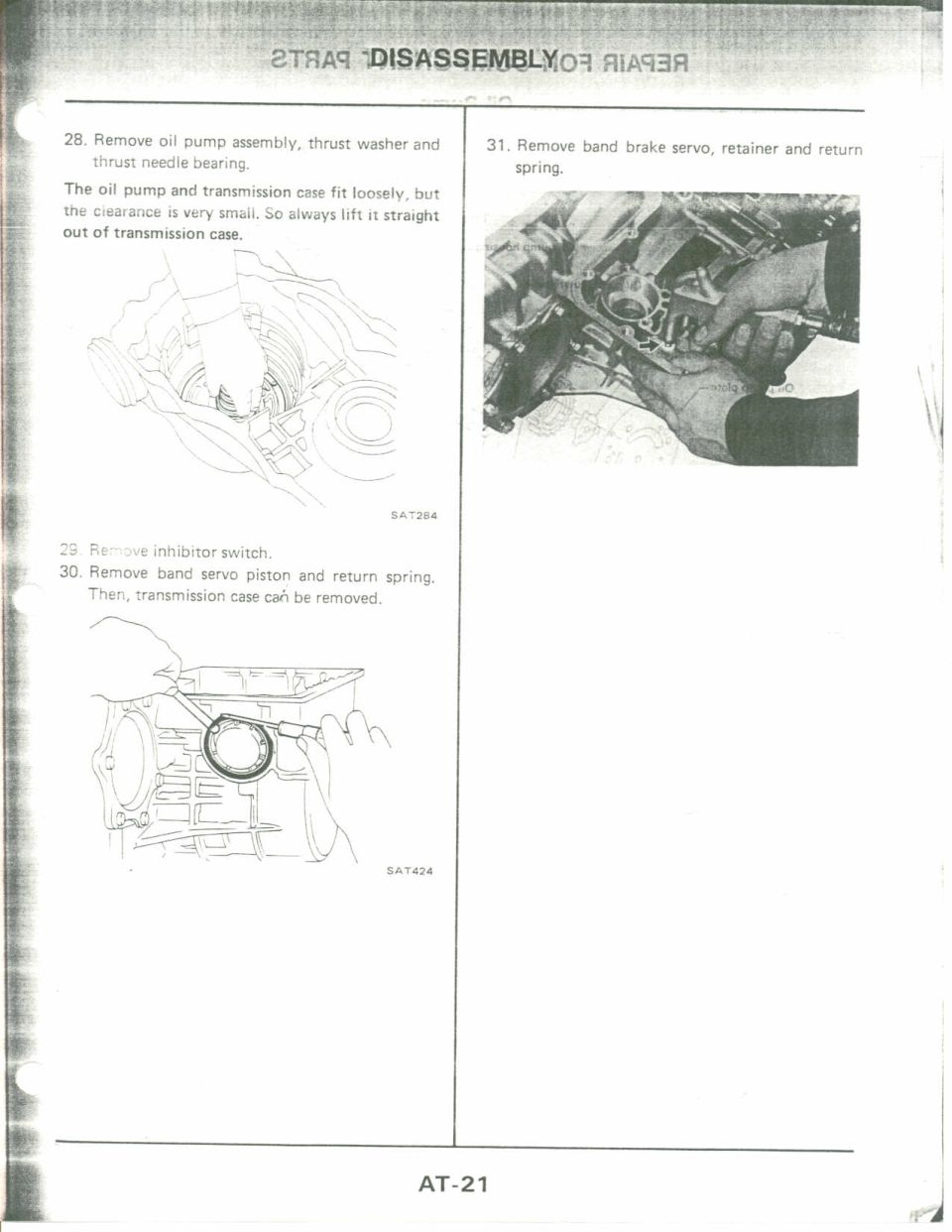

Photocopied page AT-21 from an automatic transmission service manual, headed "DISASSEMBLY," with numbered steps 28-31 covering removal of the oil pump assembly, inhibitor switch, band servo piston and band brake servo. Line drawings and one photo illustrate the procedures, and the header text is mirrored from a double-sided scan.

AI caption · Photo 203 of 412

trait; lamoarnman - 28. Remove oil pump assembly, thrust washer and ihrust needle hearing. The oil pump and transmission case fiI loosely, but the clearance is very small, So always llfl n stralghx out of iransmission case. sATzsa 2 F:- :EinhibltOVSWiICh. 30. Remove band servo piston and return spring. Then, transmission case can be removed. SATA2A 31. Remove band brake servo, retainer and return spring. AT-21
