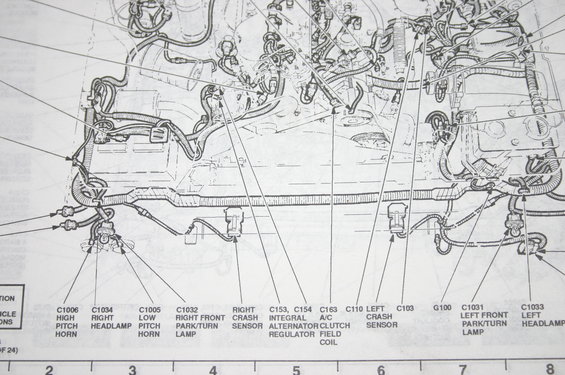

1994 Ford Bronco Engine Compartment Connector Location Diagram C1031-C1034 G100

This is a cropped scan of a page from a factory-style electrical/vacuum troubleshooting manual showing a component location illustration of a vehicle's engine compartment as viewed from the front. The line drawing depicts the engine, front crossmember, headlamp/park lamp area, and the front wiring harnesses, with arrowed callouts identifying connectors and grounds. Legible callouts include: C1006 High Pitch Horn, C1034 Right Headlamp, C1005 Low Pitch Horn, C1032 Right Front Park/Turn Lamp, Right Crash Sensor, C153/C154 Integral Alternator Regulator, C163 A/C Clutch Field Coil, C110 Left Crash Sensor, C103, G100 (ground), C1031 Left Front Park/Turn Lamp, and C1033 Left Headlamp. A grid coordinate strip numbered 2 through 8 runs along the bottom edge, and a partially visible note indicates this is one sheet of a 24-page foldout set ("...OF 24"). A reader can use this page to physically locate front-end lighting connectors, horns, crash (airbag) sensors, the alternator regulator connectors, the A/C clutch field coil connector, and ground point G100 in the engine compartment. The page itself shows no explicit year, make, or model; it was uploaded as documentation for a 1994 Ford Bronco.
