What torque do the headlamp nuts and screws require on a 1994 Ford Bronco/F-Series?

The nut and washer (item 2, N621906-S55M) is torqued to 4-7 N·m (36-61 in-lb), and the screw (item 3, N801603-S55) is torqued to 1.4-2.3 N·m (13-20 in-lb).

What is the Ford part number for the headlamp bulb and headlamp assembly?

The headlamp bulb is item 8, part number 13007, and the headlamp itself is item 9, part number 13005. The headlamp bulb retainer is 13N019.

What vehicles does this headlamp removal diagram cover?

The page is titled 'Headlamp, F-Series and Bronco' and is from the 1994 Econoline / F-150, F-250, F-350 / Bronco / F-Super Duty Body/Chassis manual dated Aug 1993.

What part number is the headlamp door (bezel) on these trucks?

The headlamp door is item 6, part number 13043. The radiator grille opening panel is item 5, part number 8190.

What holds the headlamp in place besides screws?

The diagram lists J-nuts (item 4, N806851-S100) and a headlamp mounting clip (item 12, 13N020), plus a headlamp bulb retainer (item 11, 13N019).

Home/ Registry/ Ford/ Bronco/ 1992-1996/ 1994 Ford Bronco/ Photo supermotors.net/registry/media/471568

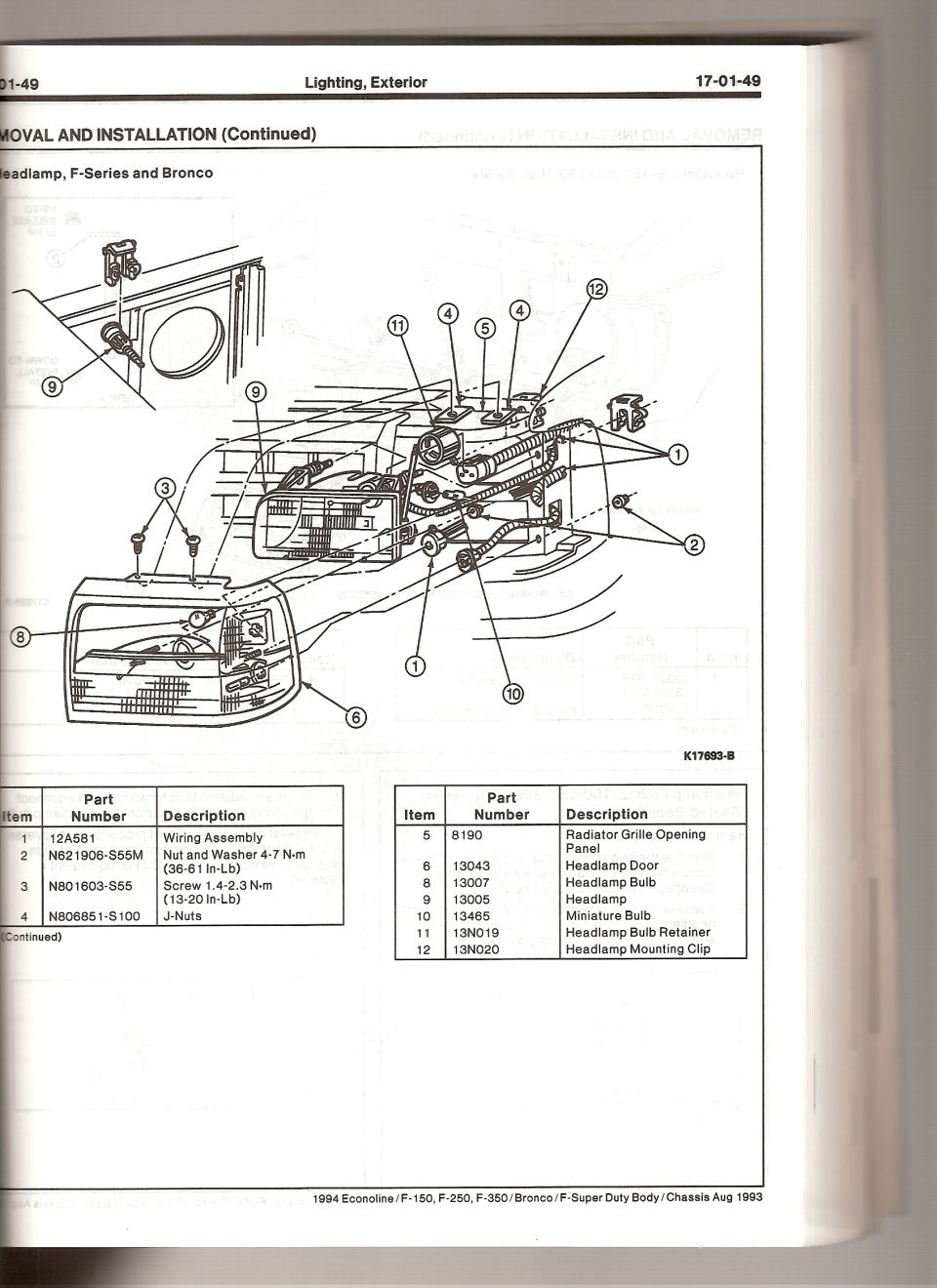

1994 Ford Bronco & F-150/F-250/F-350 Headlamp Removal - Exploded Parts Diagram

1994 Ford F-Series/Bronco headlamp exploded view, part numbers and fastener torques

‹ ›

Ford service-manual exploded parts view (sec 17-01-49) of F-Series/Econoline/Bronco headlamp assembly with part numbers and nut/screw torque specs.

AI caption January 2007 · Photo 225 of 1902

This is a page (17-01-49) from the 1994 Ford Econoline / F-150, F-250, F-350 / Bronco / F-Super Duty Body/Chassis service manual (dated Aug 1993), covering the section 'Lighting, Exterior — Removal and Installation (Continued): Headlamp, F-Series and Bronco.' It contains an exploded-view illustration (figure K17693-B) of the front headlamp assembly, showing how the headlamp, headlamp door, bulbs, wiring, retainers, and mounting hardware fit together, with numbered callouts (1-12). Two parts tables identify the callouts: item 1 wiring assembly (12A581); item 2 nut and washer N621906-S55M with a torque spec of 4-7 N·m (36-61 in-lb); item 3 screw N801603-S55 torqued to 1.4-2.3 N·m (13-20 in-lb); item 4 J-nuts N806851-S100; item 5 radiator grille opening panel (8190); item 6 headlamp door (13043); item 8 headlamp bulb (13007); item 9 headlamp (13005); item 10 miniature bulb (13465); item 11 headlamp bulb retainer (13N019); and item 12 headlamp mounting clip (13N020). A reader can learn the part numbers, component names, fastener torque values, and the physical arrangement needed to remove and reinstall the headlamp assembly on 1994 F-Series trucks and Broncos.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What torque do the headlamp nuts and screws require on a 1994 Ford Bronco/F-Series?: The nut and washer (item 2, N621906-S55M) is torqued to 4-7 N·m (36-61 in-lb), and the screw (item 3, N801603-S55) is torqued to 1.4-2.3 N·m (13-20 in-lb).
What is the Ford part number for the headlamp bulb and headlamp assembly?: The headlamp bulb is item 8, part number 13007, and the headlamp itself is item 9, part number 13005. The headlamp bulb retainer is 13N019.
What vehicles does this headlamp removal diagram cover?: The page is titled 'Headlamp, F-Series and Bronco' and is from the 1994 Econoline / F-150, F-250, F-350 / Bronco / F-Super Duty Body/Chassis manual dated Aug 1993.
What part number is the headlamp door (bezel) on these trucks?: The headlamp door is item 6, part number 13043. The radiator grille opening panel is item 5, part number 8190.
What holds the headlamp in place besides screws?: The diagram lists J-nuts (item 4, N806851-S100) and a headlamp mounting clip (item 12, 13N020), plus a headlamp bulb retainer (item 11, 13N019).
