What is the specification for the vehicle speed sensor in the ABS quick test?

With the ignition Off, measure between pins 21 + 22 on the Hz and mV scale; the specification is 6 mV/Hz or greater.

What does the amber ABS warning light mean on a 1996 Ford Bronco/F-Series?

It warns the driver that the ABS has been disabled. Normal power-assisted braking remains, but the wheels can lock during a panic stop while the indicator is on. If the system is OK, Code 16 will be present.

How do I retrieve ABS diagnostic trouble codes on these trucks?

Use the Rotunda New Generation Star Tester 007-00500 (or equivalent) or the light flash technique. For the Star Tester, turn the ignition off, locate the data link connector labeled ANTI-LOCK TEST in the engine compartment, connect the tester, proceed with on-board diagnostics, and turn the key to RUN.

What multimeter does Ford specify for these ABS measurements?

Rotunda 88 Digital Multimeter 105-00053 or equivalent; if not used, higher wheel speed may be required for the frequency meter to function correctly.

Why must frequency and voltage be measured at the same wheel speed?

Because the result of voltage output divided by frequency does not change with wheel speed, but it is crucial that both measurements are taken at the SAME wheel speed for a valid check of the anti-lock sensor or vehicle speed sensor output.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ 1996 Ford Bronco/ Photo supermotors.net/registry/media/1110169

1996 Ford Bronco/F-150 ABS Diagnosis & Testing - Quick Test, Code Retrieval

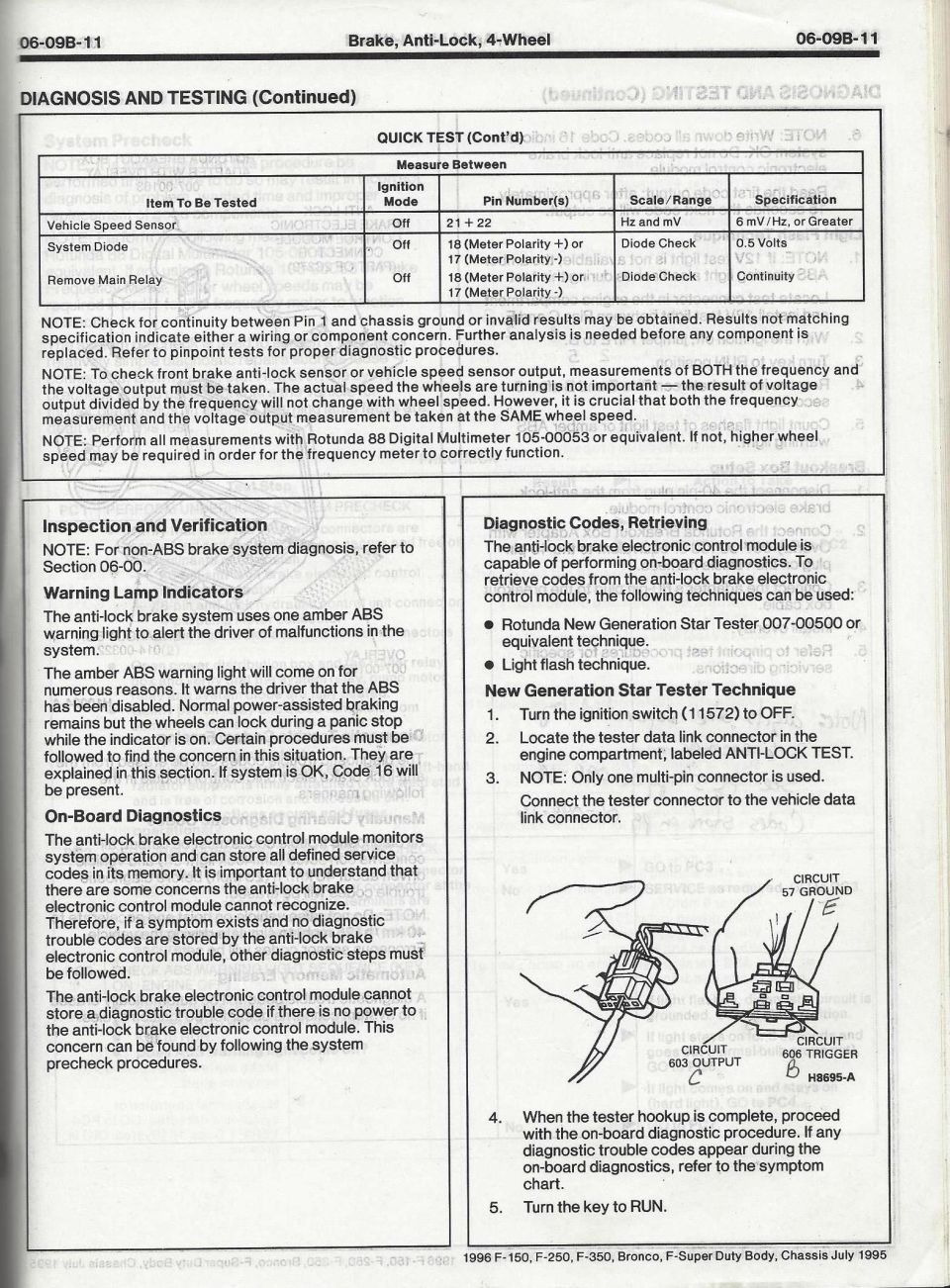

Scanned 1996 F-150 service manual page, ABS quick test specs, inspection, and diagnostic code retrieval

‹ ›
