What is the specified tie-rod length "L" for the Nissan R22T manual steering gear?

Tie-rod length "L" is 107.1 mm (4.22 in). Install the lock nut and tie-rod outer socket to the inner socket, adjust to this length, then tighten the lock nut.

What is the rack stroke measurement for the R22T manual steering rack?

Rack stroke length "ℓ" should measure 66.7 mm (2.626 in).

How are the steering rack boot clamps installed on the R22T?

Wrap the boot clamp around the boot groove twice, then tighten by twisting the rings at both ends four or four and one-half turns with a screwdriver while pulling with a force of approximately 98 N (10 kg, 22 lb).

What should be done if pinion rotating torque is out of specification?

If pinion rotating torque is out of specifications, readjust it.

Home/ Registry/ Nissan/ Micra/ 1990 Nissan Micra/ Photo supermotors.net/registry/media/293996

Nissan R22T Manual Steering Gear Tie-Rod & Boot Assembly - Service Manual ST-10

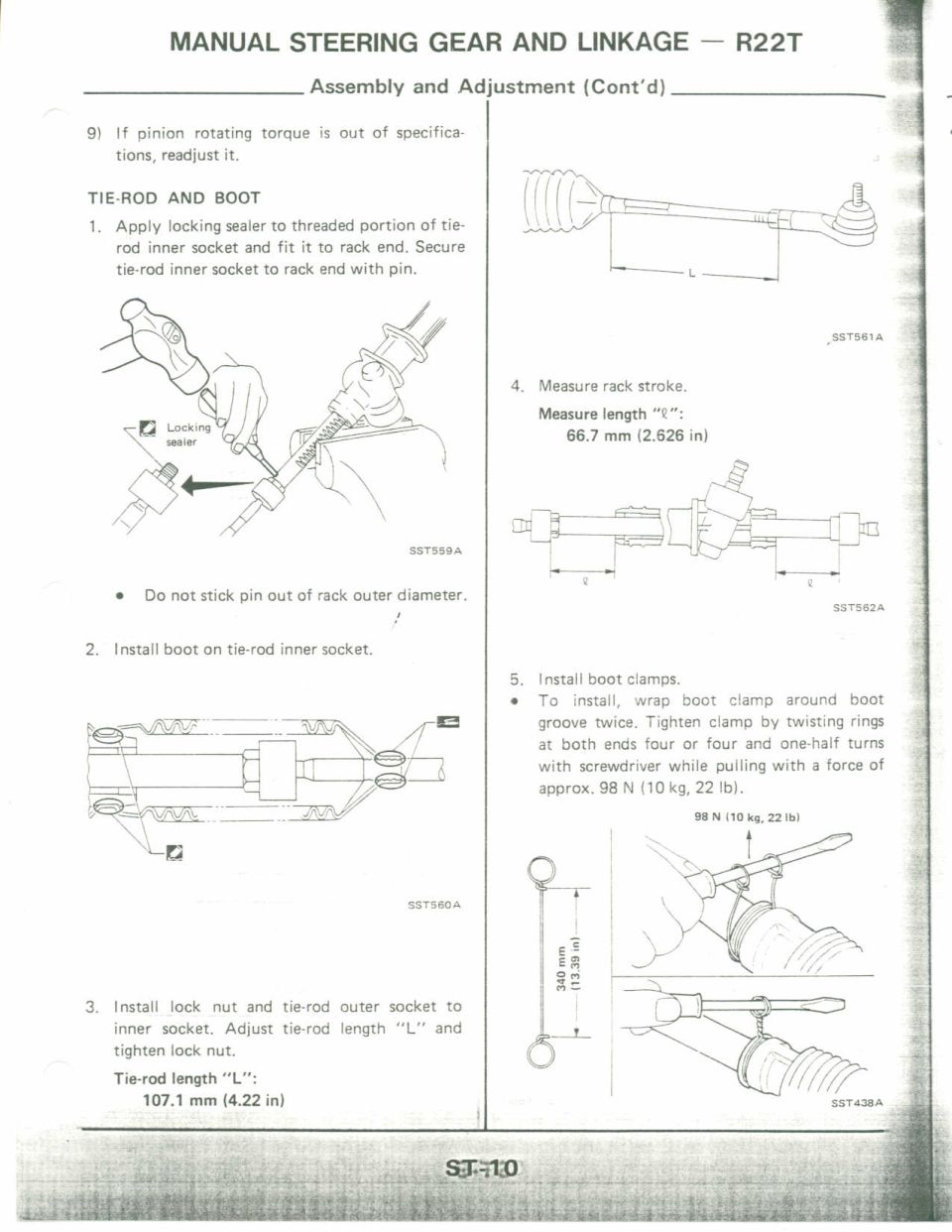

Manual steering gear R22T tie-rod and boot assembly with tie-rod length and rack stroke specs

‹ ›

Steering shop manual page ST-10: tie-rod inner socket locking sealer, set tie-rod length L 107.1 mm, rack stroke 66.7 mm, and boot clamp install torque ~98 N.

AI caption February 2006 · Photo 310 of 412

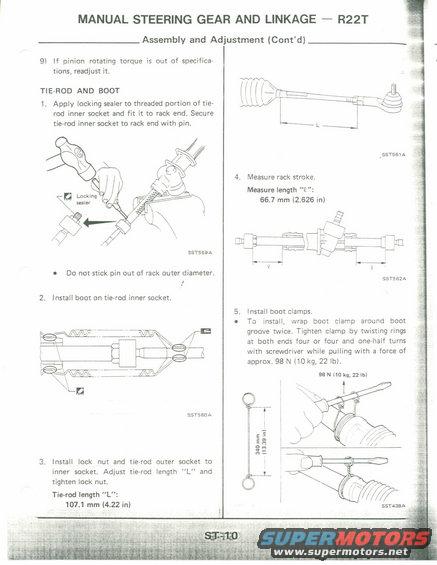

This is page ST-10 of a Nissan service manual covering assembly and adjustment of the R22T manual steering gear and linkage. It concludes a pinion adjustment step (readjust if pinion rotating torque is out of specification) and then details the tie-rod and boot assembly procedure in five steps: (1) apply locking sealer to the threaded portion of the tie-rod inner socket, fit it to the rack end, and secure it with a pin, cautioning not to let the pin protrude beyond the rack outer diameter; (2) install the boot on the tie-rod inner socket; (3) install the lock nut and tie-rod outer socket, adjusting tie-rod length "L" to 107.1 mm (4.22 in) before tightening the lock nut; (4) measure rack stroke, with length "ℓ" specified at 66.7 mm (2.626 in); and (5) install boot clamps by wrapping the clamp around the boot groove twice and twisting the rings four to four-and-a-half turns with a screwdriver while pulling with approximately 98 N (10 kg, 22 lb) of force. Illustrations (SST559A, SST560A, SST561A, SST562A, SST438A) show pin installation, boot fitting, tie-rod length measurement, rack stroke measurement, and clamp tightening (with a 340 mm / 13.39 in clamp wire dimension).

Is this accurate? Sign in to help verify it.

Frequently asked questions

What is the specified tie-rod length "L" for the Nissan R22T manual steering gear?: Tie-rod length "L" is 107.1 mm (4.22 in). Install the lock nut and tie-rod outer socket to the inner socket, adjust to this length, then tighten the lock nut.
What is the rack stroke measurement for the R22T manual steering rack?: Rack stroke length "ℓ" should measure 66.7 mm (2.626 in).
How are the steering rack boot clamps installed on the R22T?: Wrap the boot clamp around the boot groove twice, then tighten by twisting the rings at both ends four or four and one-half turns with a screwdriver while pulling with a force of approximately 98 N (10 kg, 22 lb).
How is the tie-rod inner socket attached to the rack end?: Apply locking sealer to the threaded portion of the tie-rod inner socket, fit it to the rack end, and secure it with a pin. Do not let the pin stick out beyond the rack outer diameter.
What should be done if pinion rotating torque is out of specification?: If pinion rotating torque is out of specifications, readjust it.
