How do you remove the steering wheel?

Remove the steering wheel using special tool ST27180001 (J25726-A), a steering wheel puller.

How should the steering wheel be installed?

Install it on the column shaft in a straight-ahead position, aligning with the punch mark (upward). After installing, turn the wheel to make sure it moves smoothly and that the number of turns from straight-ahead to left and right locks are equal.

How is the steering lock removed and reinstalled?

Break the self-shear type screws with a drill or other appropriate tool to remove it. To install, fit new self-shear type screws and then cut off the screw heads.

What should be checked when fitting the steering lower joint?

Be sure the tightening bolt faces the cutout portion of the shaft perfectly, and ensure the slit position of the lower joint is aligned with the steering gear cap or spacer mark. Remove the hole cover if necessary.

Home/ Registry/ Nissan/ Micra/ 1990 Nissan Micra/ Photo supermotors.net/registry/media/293989

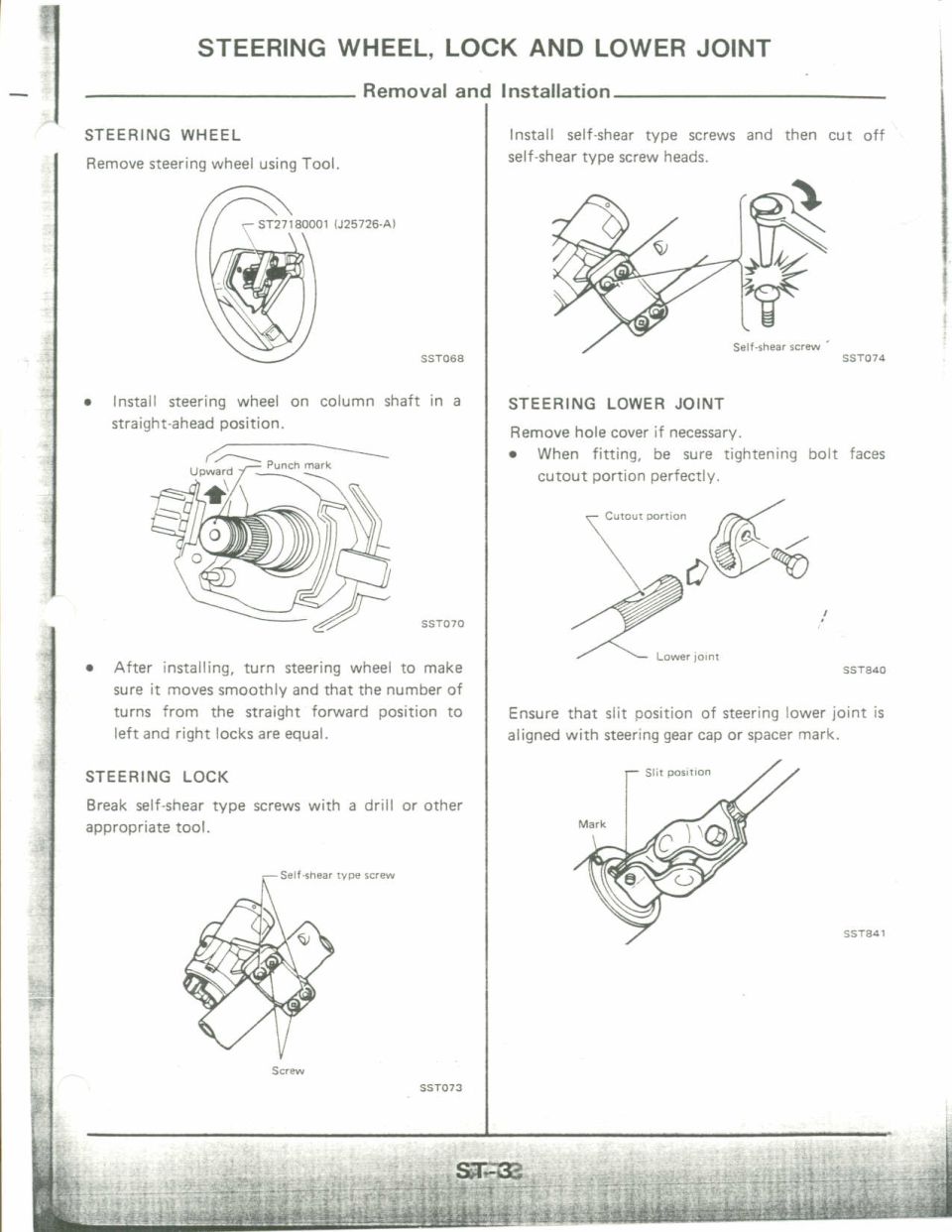

Nissan Micra Steering Wheel, Lock & Lower Joint Removal/Installation - ST-32

Steering wheel, lock and lower joint removal and installation instructions

‹ ›

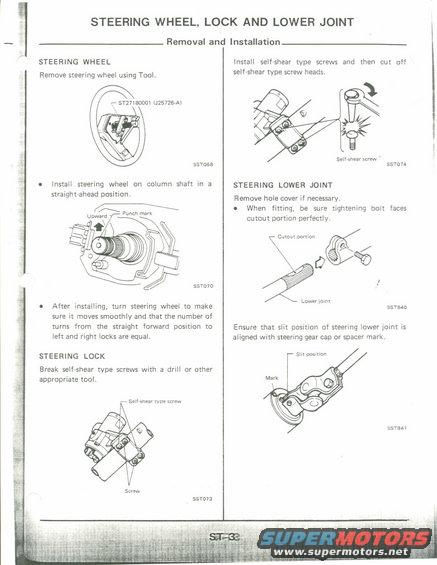

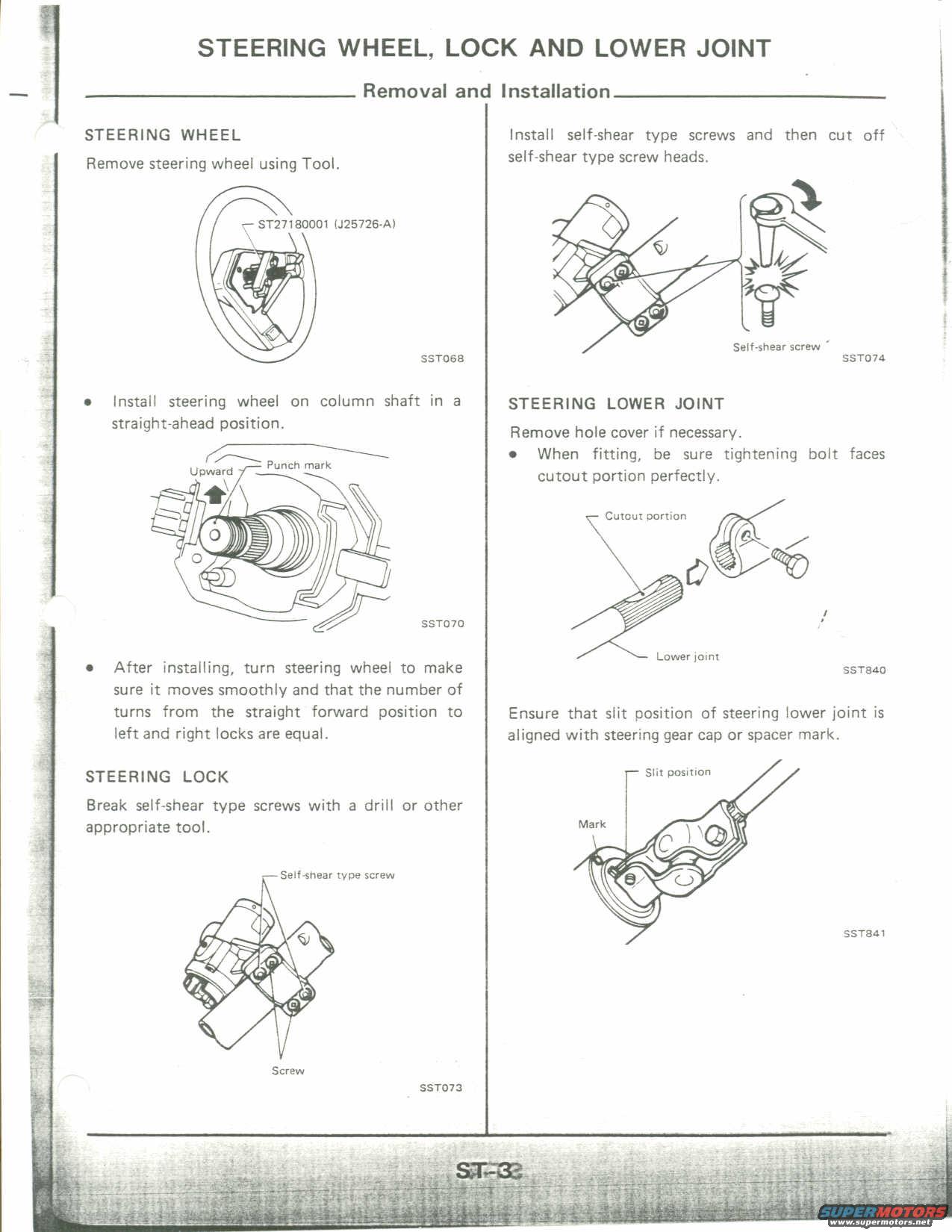

Service manual page with steering wheel, steering lock and lower joint removal and installation steps and alignment figures.

AI caption February 2006 · Photo 304 of 412

This service manual page covers removal and installation of the steering wheel, steering lock, and steering lower joint. For the steering wheel, it instructs removal using special tool ST27180001 (J25726-A), installation on the column shaft in a straight-ahead position aligned with a punch mark (arrow pointing upward), and a post-installation check that the wheel turns smoothly with equal numbers of turns from straight-ahead to left and right locks. For the steering lock, it explains breaking the self-shear type screws with a drill or other appropriate tool for removal, then installing new self-shear type screws and cutting off their heads to secure the lock. For the steering lower joint, it advises removing the hole cover if necessary, ensuring the tightening bolt faces the cutout portion of the shaft perfectly when fitting, and verifying that the slit position of the lower joint aligns with the steering gear cap or spacer mark. Five illustrations (figure references SST068, SST070, SST073, SST074, SST840, SST841) show the puller tool on the wheel, column shaft punch mark, self-shear screws on the lock housing, cutting the screw head, the cutout/lower joint fit, and the slit/mark alignment. Page reference is ST-32 (Steering section).

Is this accurate? Sign in to help verify it.

Frequently asked questions

How do you remove the steering wheel?: Remove the steering wheel using special tool ST27180001 (J25726-A), a steering wheel puller.
How should the steering wheel be installed?: Install it on the column shaft in a straight-ahead position, aligning with the punch mark (upward). After installing, turn the wheel to make sure it moves smoothly and that the number of turns from straight-ahead to left and right locks are equal.
How is the steering lock removed and reinstalled?: Break the self-shear type screws with a drill or other appropriate tool to remove it. To install, fit new self-shear type screws and then cut off the screw heads.
What should be checked when fitting the steering lower joint?: Be sure the tightening bolt faces the cutout portion of the shaft perfectly, and ensure the slit position of the lower joint is aligned with the steering gear cap or spacer mark. Remove the hole cover if necessary.
