Nissan R22T Manual Steering Gear Inspection & Assembly - Service Manual ST-8

Manual steering gear R22T inspection and assembly: ball-joint torque and rack bushing install

‹ ›

Steering shop manual page ST-8 covering tie-rod ball-joint rotating-torque inspection (0.1-2.9 N·m) and steering-gear rack bushing/pinion assembly with matching-mark alignment.

AI caption February 2006 · Photo 308 of 412

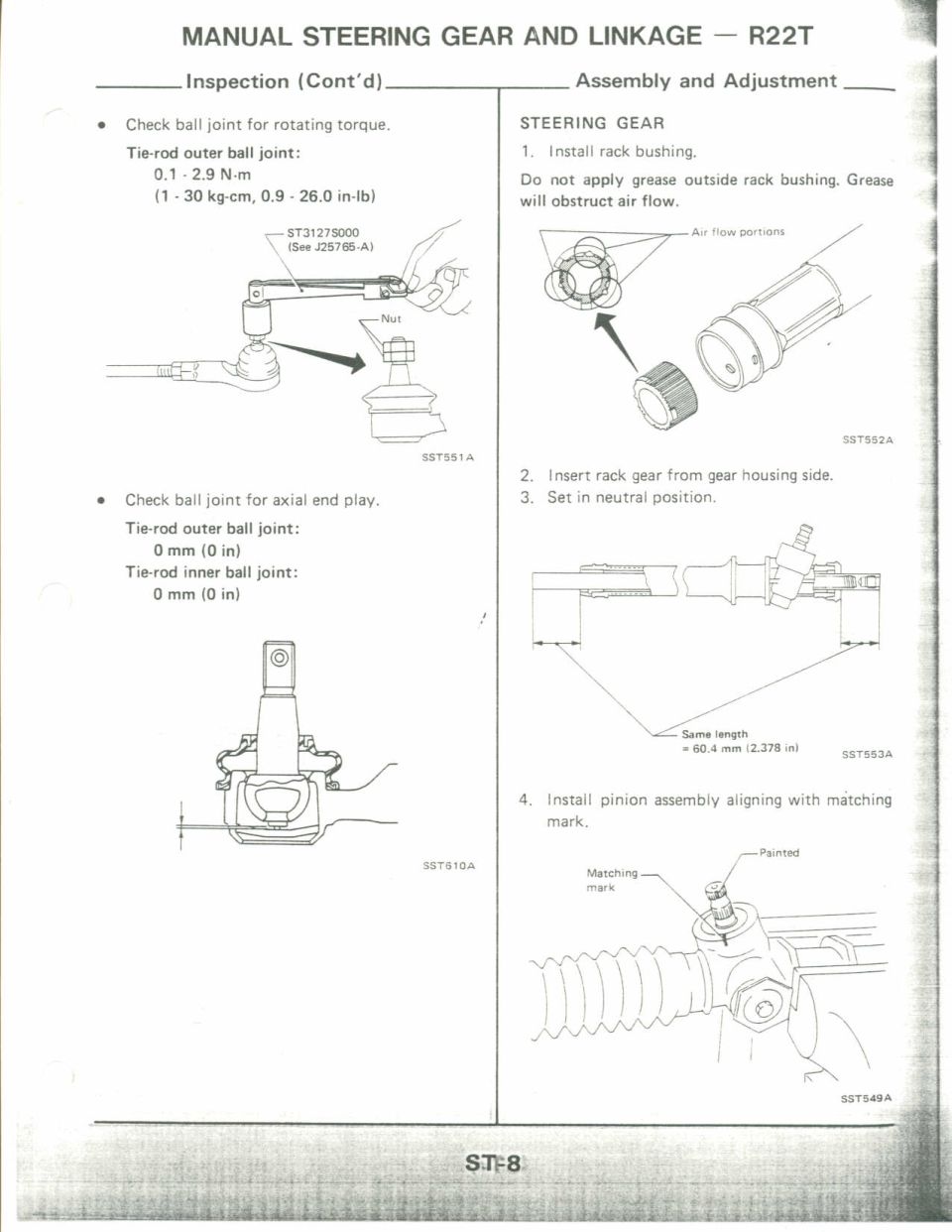

This is page ST-8 from a Nissan factory service manual covering the manual steering gear and linkage, type R22T. The left column continues the Inspection section, giving specifications for checking the tie-rod ball joints: rotating torque for the tie-rod outer ball joint should be 0.1–2.9 N·m (1–30 kg-cm, 0.9–26.0 in-lb), measured using special tool ST3127S000 (See J25765-A); axial end play for both the tie-rod outer and inner ball joints must be 0 mm (0 in). The right column begins the Assembly and Adjustment section for the steering gear: (1) install the rack bushing, with a caution not to apply grease outside the rack bushing because grease will obstruct air flow (air flow portions are shown in an illustration); (2) insert the rack gear from the gear housing side; (3) set the rack in neutral position so both ends extend the same length of 60.4 mm (2.378 in); and (4) install the pinion assembly aligned with the painted matching mark. Illustrations are referenced by figure codes SST551A, SST610A, SST552A, SST553A, and SST549A. This page is useful for anyone rebuilding or inspecting an R22T manual steering rack.
