Nissan Micra Rear Door Removal & Adjustment - Glass, Handle, Lock Striker (BF-8)

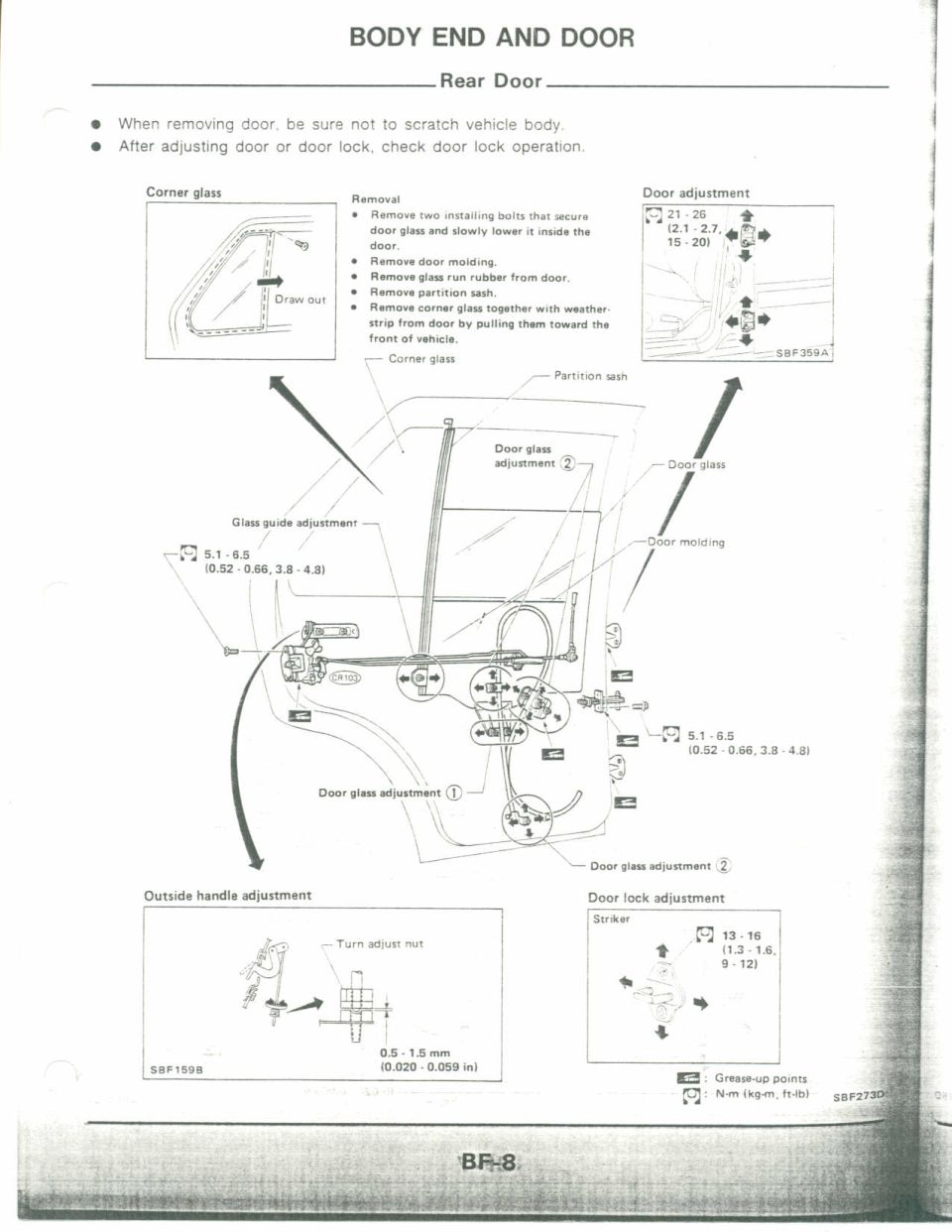

This is page BF-8 from a factory service manual section titled "BODY END AND DOOR," covering the rear door. It begins with two cautions: avoid scratching the vehicle body when removing the door, and check door lock operation after adjusting the door or door lock. A removal procedure lists five steps: remove the two installing bolts securing the door glass and lower it inside the door, remove the door molding, remove the glass run rubber, remove the partition sash, and remove the corner glass with its weatherstrip by pulling toward the front of the vehicle. A large exploded diagram of the rear door identifies the corner glass, partition sash, door glass, door molding, and glass guide adjustment points, with door glass adjustment points labeled (1) and (2). Torque specifications are given: door adjustment (hinge) bolts 21-26 N·m (2.1-2.7 kg-m, 15-20 ft-lb); glass guide/regulator fasteners 5.1-6.5 N·m (0.52-0.66 kg-m, 3.8-4.8 ft-lb); door lock striker 13-16 N·m (1.3-1.6 kg-m, 9-12 ft-lb). An outside handle adjustment inset shows a turn adjust nut with a clearance of 0.5-1.5 mm (0.020-0.059 in). Grease-up points are marked throughout the diagram, and figure codes SBF359A, SBF159B, and SBF273D appear.
