How do you install the back door window molding using Method 1?

Cut off the top portion of the molding and clean the glass and panel surfaces, apply sealant to the top portion of the molding, cut off the lower portion of the new molding, finish well for a good appearance, and install the molding joint.

How is the molding aligned during installation in Method 2?

Install the molding by aligning the molding mark located on center with the vehicle center, and install it tightly so there is no gap around the corner, then install the molding joint.

What precautions apply when using sealing compound on exterior parts?

Apply sealing compound where necessary while installing parts, and be careful that the sealing compound does not protrude from the parts.

What is required before applying sealant to the windshield or side window weatherstrip?

Apply the sealant only after cleaning the bonding surface for both the windshield weatherstrip and the side window weatherstrip.

Home/ Registry/ Nissan/ Micra/ 1990 Nissan Micra/ Photo supermotors.net/registry/media/294013

Nissan Wagon Exterior Molding & Weatherstrip Installation - Service Manual BF-14

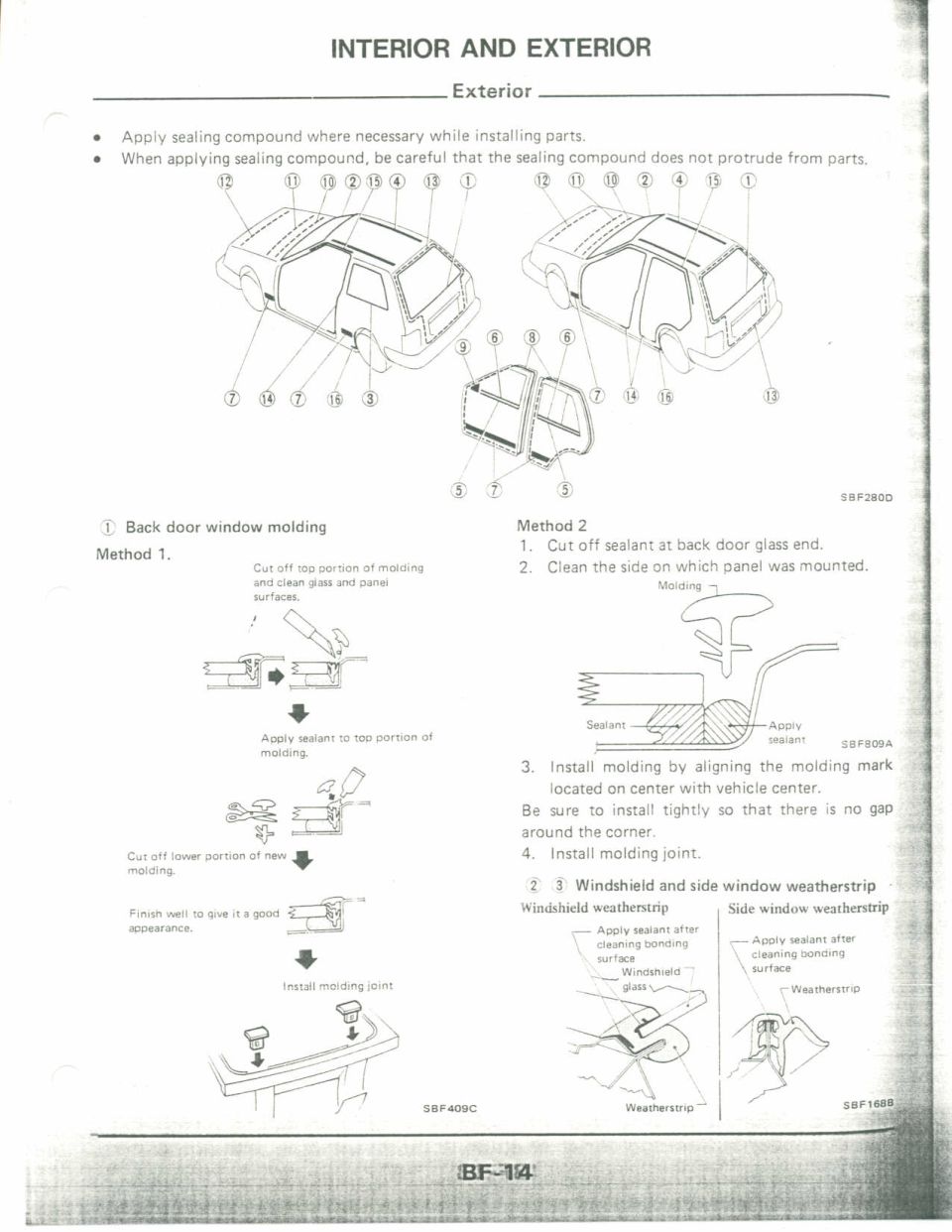

Service manual page: exterior molding and weatherstrip sealing installation figures

‹ ›

Service manual page covering exterior back-door window molding and windshield weatherstrip sealing installation.

AI caption February 2006 · Photo 327 of 412

This is page BF-14 of a factory body (BF) service manual section titled "Interior and Exterior — Exterior." It covers installation of exterior moldings and weatherstrips on a wagon-body vehicle. Two exploded body illustrations (figure SBF280D) identify sixteen numbered molding and weatherstrip locations around the roof, doors, quarter panels, and back door. General cautions instruct the technician to apply sealing compound where necessary during installation and to prevent sealant from protruding from the parts. The page details two methods for installing the back door window molding: Method 1 (figure SBF409C) involves cutting off the top portion of the old molding, cleaning the glass and panel surfaces, applying sealant to the top portion of the molding, cutting the lower portion of the new molding, finishing for appearance, and installing the molding joint. Method 2 (figure SBF809A) involves cutting the sealant at the back door glass end, cleaning the mounting side of the panel, aligning the molding's center mark with vehicle center, installing tightly with no corner gaps, and fitting the molding joint. The page also introduces windshield and side window weatherstrip installation (figure SBF168B), instructing to apply sealant after cleaning the bonding surface for both weatherstrips.

Is this accurate? Sign in to help verify it.

Frequently asked questions

How do you install the back door window molding using Method 1?: Cut off the top portion of the molding and clean the glass and panel surfaces, apply sealant to the top portion of the molding, cut off the lower portion of the new molding, finish well for a good appearance, and install the molding joint.
How is the molding aligned during installation in Method 2?: Install the molding by aligning the molding mark located on center with the vehicle center, and install it tightly so there is no gap around the corner, then install the molding joint.
What precautions apply when using sealing compound on exterior parts?: Apply sealing compound where necessary while installing parts, and be careful that the sealing compound does not protrude from the parts.
What is required before applying sealant to the windshield or side window weatherstrip?: Apply the sealant only after cleaning the bonding surface for both the windshield weatherstrip and the side window weatherstrip.
