Nissan Micra Roof Trim & Headlining Installation - Service Manual Page BF-12

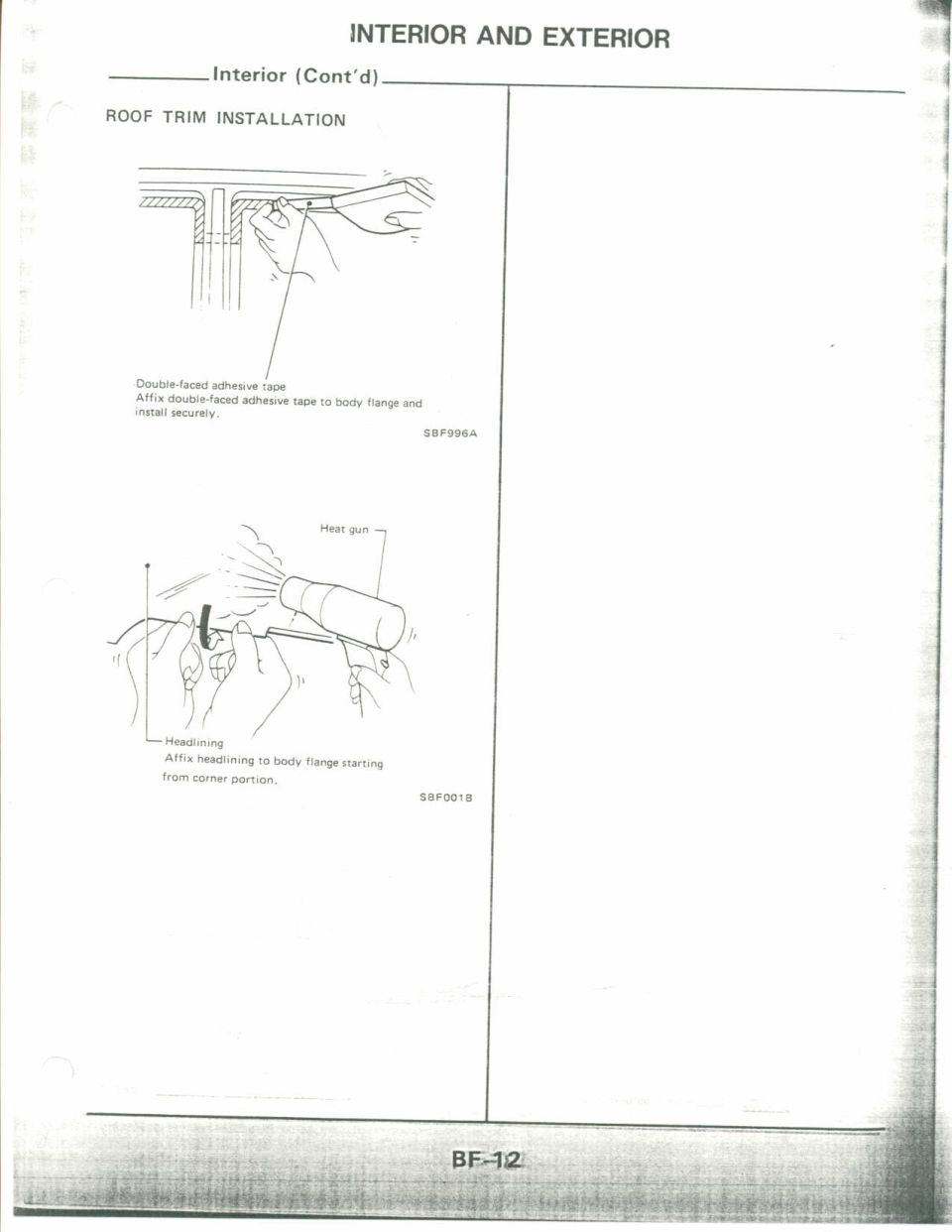

This is a single page (BF-12) from a Nissan factory service manual section titled "Interior and Exterior," continuing the "Interior" subsection with the procedure "Roof Trim Installation." The page contains two labeled illustrations with brief instructions. The first illustration (figure code SBF996A) shows a hand applying trim at the body flange and instructs the technician to affix double-faced adhesive tape to the body flange and install the trim securely. The second illustration (figure code SBF001B) shows two hands working the headlining material while a heat gun is applied; the instruction is to affix the headlining to the body flange starting from the corner portion. No torque values, part numbers, or model/year applicability statements appear on this page. The right column of the page is blank. A reader learns the basic method for reinstalling roof trim and headlining: use double-faced adhesive tape on the body flange, and use a heat gun while attaching the headlining, beginning at the corners. The page was uploaded as part of a large multi-page manual set attributed to a 1990 Nissan Micra.
