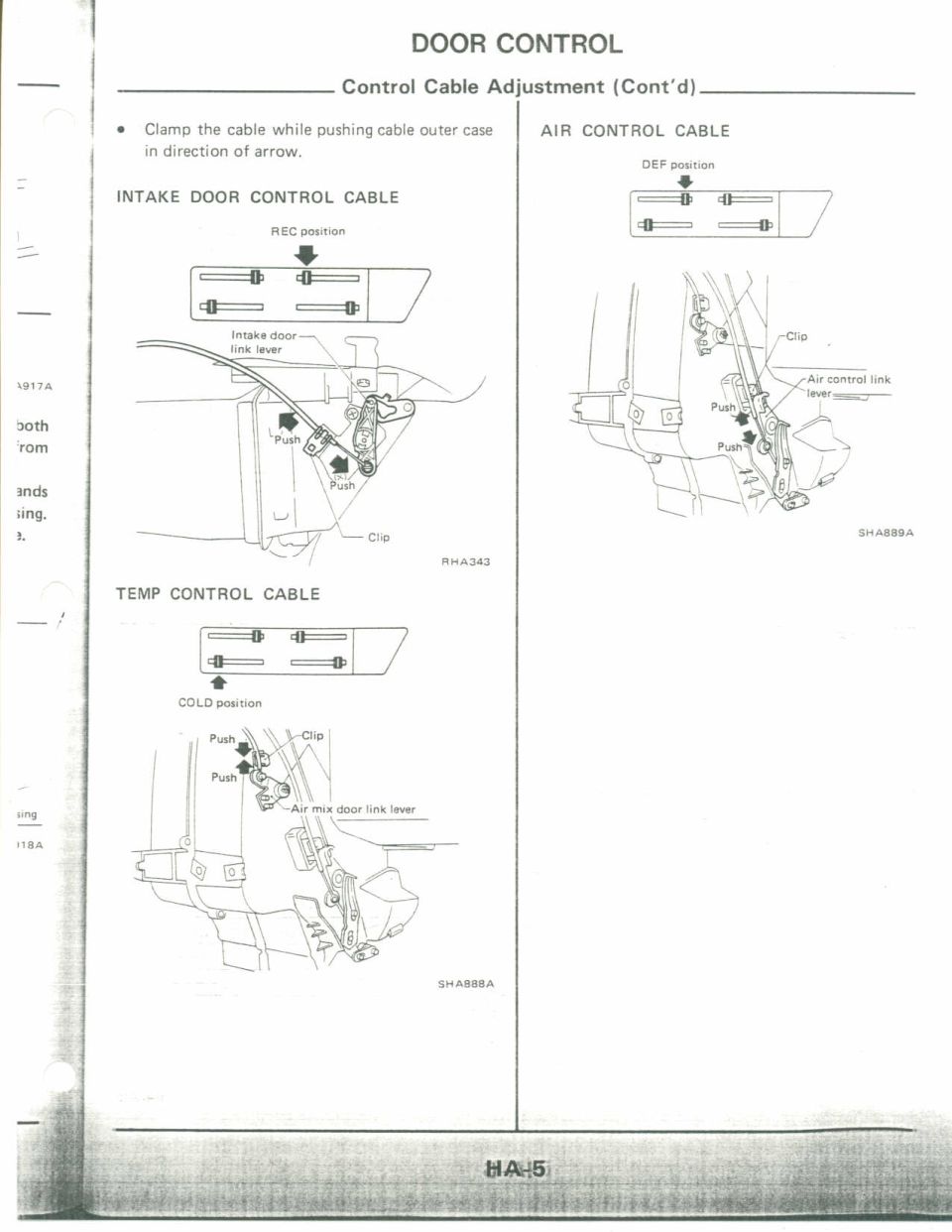

This page is from a service manual section titled "DOOR CONTROL — Control Cable Adjustment (Cont'd)" (page HA-5), covering the heater/ventilation (HVAC) control cable adjustment procedure. It instructs the technician to clamp the cable while pushing the cable outer case in the direction of the arrow shown in each illustration. Three cables are covered: the INTAKE DOOR CONTROL CABLE (adjusted with the control lever set to the REC position, showing the intake door link lever, push directions, and retaining clip — figure RHA343), the TEMP CONTROL CABLE (adjusted with the lever in the COLD position, showing the air mix door link lever, push directions, and clip — figure SHA888A), and the AIR CONTROL CABLE (adjusted with the lever in the DEF position, showing the air control link lever, push directions, and clip — figure SHA889A). Each subsection includes a small diagram of the dashboard control panel indicating the correct lever position and a larger exploded-view illustration of the heater unit showing where the cable is clipped and pushed during adjustment. The page was uploaded as part of a 1990 Nissan Micra service documentation set; no year, model, or engine applicability is stated on the page itself.
