Nissan Micra Heater Control Removal & Cable Adjustment - Service Manual HA-4

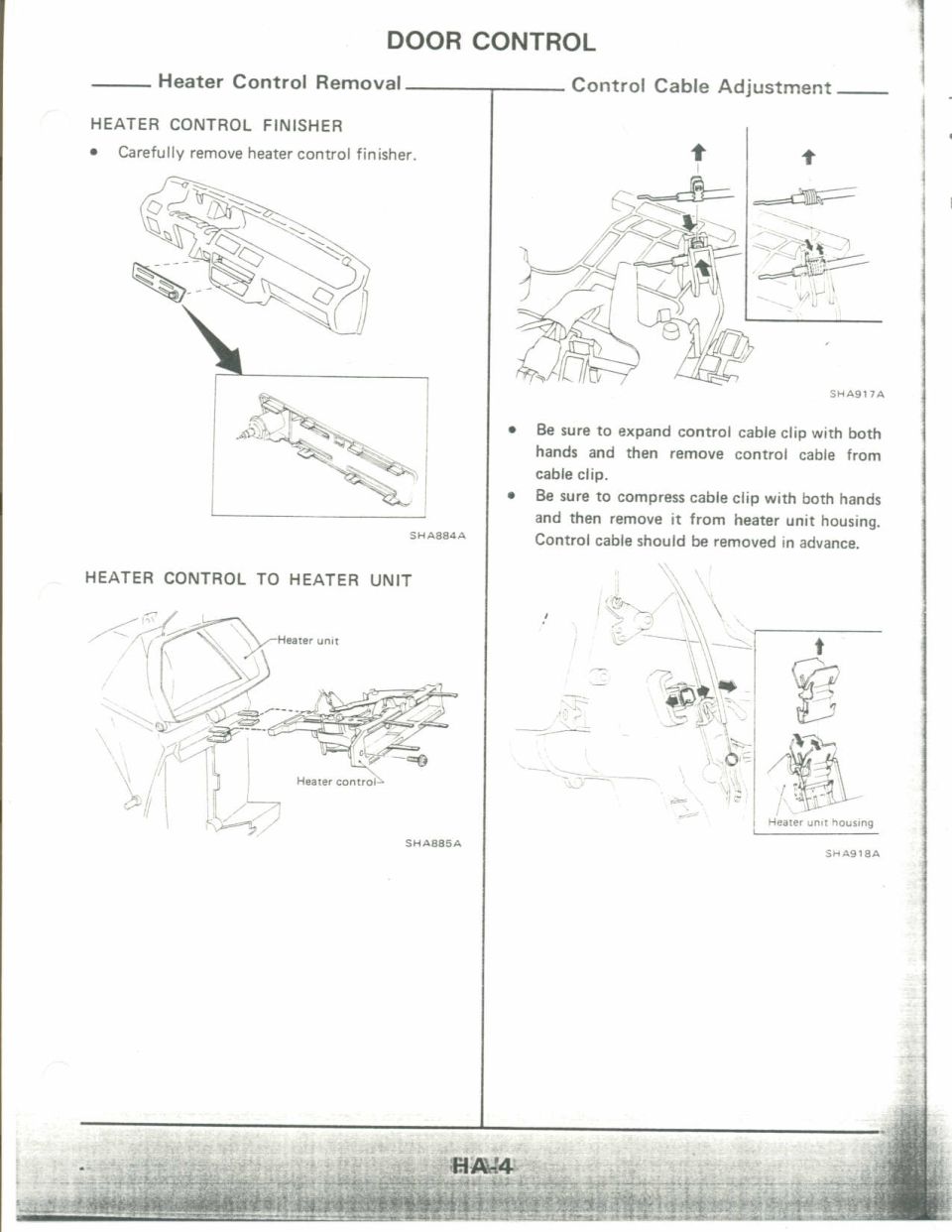

This is page HA-4 of a factory service manual section titled "DOOR CONTROL," covering heater (HVAC) door control service procedures. The left column, "Heater Control Removal," explains removal of the heater control finisher (trim panel) from the instrument panel — instructing the technician to carefully remove the heater control finisher (illustration SHA884A) — and shows the relationship of the heater control assembly to the heater unit, including mounting hardware (illustration SHA885A). The right column, "Control Cable Adjustment," covers control cable and cable clip service: it instructs the technician to expand the control cable clip with both hands and then remove the control cable from the cable clip, and to compress the cable clip with both hands before removing it from the heater unit housing, noting that the control cable should be removed in advance (illustrations SHA917A and SHA918A). A reader can learn the correct sequence and cautions for removing the heater control finisher, separating the heater control from the heater unit, and detaching/adjusting the heater control cables and clips without damaging them. The page is illustration-heavy with four labeled line drawings and minimal text; no torque values, part numbers, or model/year identification appear on the page.
