1978 Ford Bronco Door Glass & Window Regulator Diagram - Runs, Retainers, Parts

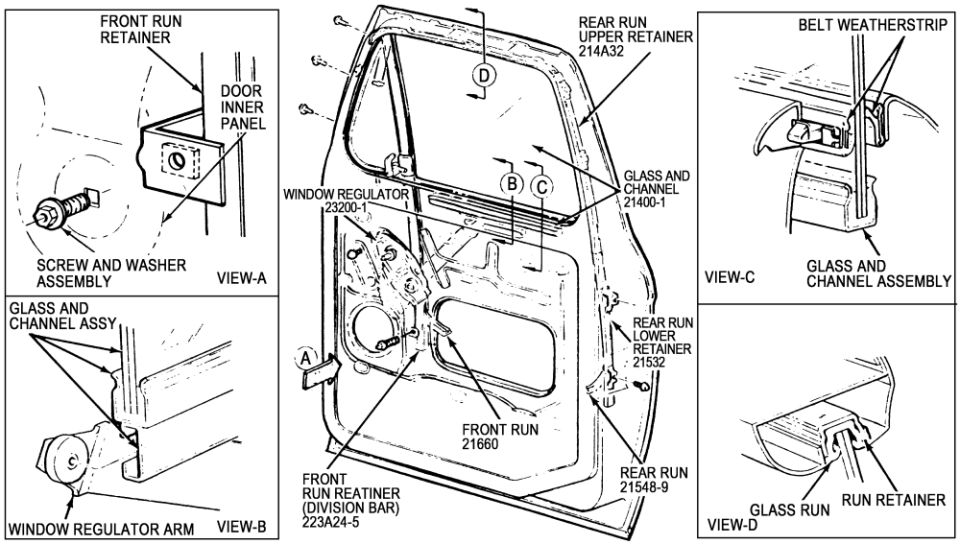

This document is an exploded parts/assembly diagram of a Ford door showing the window glass, regulator, and glass run components. The central illustration depicts the inner door panel with the window regulator (part 23200-1), glass and channel assembly (21400-1), front run (21660), rear run (21548-9), front run retainer/division bar (223A24-5), rear run upper retainer (214A32), and rear run lower retainer (21532). Four detail views are keyed to circled letters A-D on the main drawing. View-A shows the front run retainer attachment to the door inner panel with a screw and washer assembly. View-B shows how the window regulator arm engages the glass and channel assembly. View-C shows the belt weatherstrip in relation to the glass and channel assembly. View-D is a cross-section of the glass run seated in its run retainer. A reader can learn the names, Ford base part numbers, and relative positions of the door glass run and regulator components, which is useful for disassembling, repairing, or replacing door window hardware such as regulators, glass channels, and run retainers.
