1978 Ford Bronco Tailgate Latch Release Mechanism Exploded Diagram

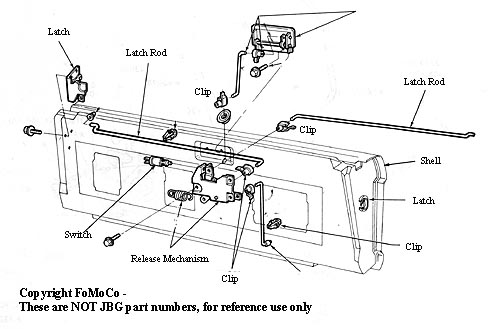

This document is an exploded parts diagram (copyright FoMoCo / Ford Motor Company) showing the tailgate latch release mechanism assembly for a Ford Bronco tailgate. The illustration depicts the inner tailgate shell with the components of the latch/release linkage laid out in exploded view. Labeled parts include the left and right tailgate latches, the left and right latch rods that connect the latches to the central release mechanism, multiple retaining clips that secure the rods, the central release mechanism itself, an electrical switch, and the tailgate shell. The drawing shows how the latch rods route horizontally across the inside of the tailgate from the center-mounted release mechanism out to the latches on each side, with clips holding the rods in place along their length. A note at the bottom states that the labels are NOT JBG part numbers and that the diagram is for reference use only; no Ford part numbers, torque specifications, or year/model applicability text appears in the image. A reader can learn the names, relative positions, and assembly relationships of the tailgate latch release components, useful when disassembling, repairing, or reassembling a Bronco power/manual tailgate latch system.
