What vehicles does this engine support diagram cover?

Per its caption, it covers 1966/72 Ford F100 (4x4) and 1967/72 F250 (4x4) and F350 trucks with 6 CYL. 240 and 300 engines and 8 CYL. 352 and 360 engines.

What is the Ford part number for the front engine insulator?

The front insulator carries base part number 6038, shown in both 6 CYL. and 8 CYL. versions in the front diagram.

What fastener is used repeatedly on the front engine mounts?

Bolt 34808-S (X-67) appears at multiple front mount locations, along with 34810-S (X-69), 33847-S (M-58), 34670-S (M-54), and nuts/washers such as 34446-S and 56450-S.

Which rear support parts are shown for the 1966 F100 4x4?

The 1966 F100 (4x4) rear diagram shows parts 6054, 6068, 6C093, 7A039, 6A023, hardware 351274-S (XX-798), 34809-S (X-68), 354580-S (BB-167), 20388-S (B-80), 34444-S, and frame member 5005.

When was this document published?

Home/ Registry/ Ford/ Bronco/ 1978-1979/ 1978 Ford Bronco/ Photo supermotors.net/registry/media/1146263

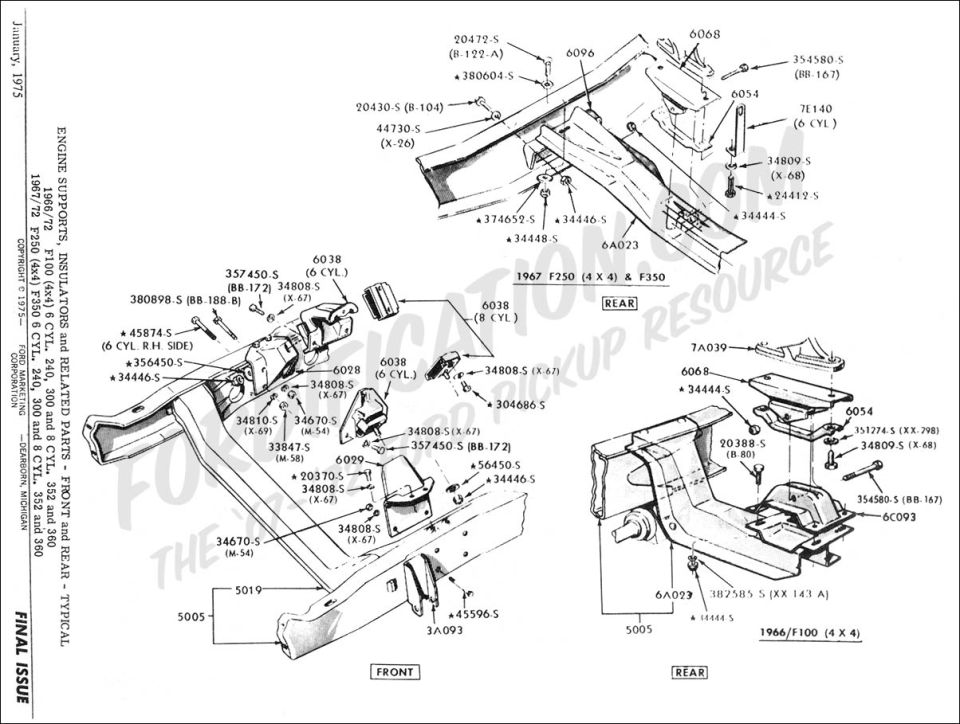

1966-72 Ford F100/F250/F350 4x4 Engine Mounts & Insulators Diagram 240 300 352 360

Ford parts catalog exploded view of front and rear engine support and frame parts

‹ ›

Exploded parts diagram of 1967-79 Ford F-series front and rear engine supports, insulators, and frame components with part numbers.

AI caption March 2019 · Photo 35 of 992

This is a page from a Ford Marketing Corporation parts reference (dated January 1975, marked "FINAL ISSUE") showing exploded-view illustrations of engine supports, insulators, and related parts, front and rear, described as "typical." It applies to 1966–72 Ford F100 (4x4) and 1967–72 F250 (4x4) and F350 trucks with the 240 and 300 six-cylinder engines and the 352 and 360 V8 engines. Three exploded diagrams are shown: the rear engine support arrangement for the 1967 F250 (4x4) & F350, the rear arrangement for the 1966 F100 (4x4), and a front engine mount arrangement showing both 6-cylinder and 8-cylinder insulator (6038) configurations mounted to the frame (5005/5019). Each diagram is fully labeled with Ford base part numbers (e.g., 6038 insulators, 6068, 6096, 6A023, 6C093 supports/brackets, 7A039, 7E140) and hardware part numbers with size codes (e.g., 34808-S (X-67), 34809-S (X-68), 354580-S (BB-167), 357450-S (BB-172), 380898-S (BB-188-B)). A reader can identify the correct engine mount, insulator, bracket, and fastener part numbers and their assembly relationships for these trucks.

This document covers 1966-1972 (published January 1975), which may differ from this 1978 Ford Bronco.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What vehicles does this engine support diagram cover?: Per its caption, it covers 1966/72 Ford F100 (4x4) and 1967/72 F250 (4x4) and F350 trucks with 6 CYL. 240 and 300 engines and 8 CYL. 352 and 360 engines.
What is the Ford part number for the front engine insulator?: The front insulator carries base part number 6038, shown in both 6 CYL. and 8 CYL. versions in the front diagram.
What fastener is used repeatedly on the front engine mounts?: Bolt 34808-S (X-67) appears at multiple front mount locations, along with 34810-S (X-69), 33847-S (M-58), 34670-S (M-54), and nuts/washers such as 34446-S and 56450-S.
Which rear support parts are shown for the 1966 F100 4x4?: The 1966 F100 (4x4) rear diagram shows parts 6054, 6068, 6C093, 7A039, 6A023, hardware 351274-S (XX-798), 34809-S (X-68), 354580-S (BB-167), 20388-S (B-80), 34444-S, and frame member 5005.
When was this document published?: The footer shows January, 1975, Copyright © 1975 Ford Marketing Corporation, Dearborn, Michigan, marked FINAL ISSUE.
