Where is the coolant temperature sending unit on a Ford 5.0L or 5.8L V8?

Per the diagram, the coolant temperature sending unit is located on top of the engine near the distributor, threaded into the manifold area toward the front of the engine, as shown in figure 9.4b.

Does this diagram apply to other Ford V8 engines besides the 5.0L and 5.8L?

Yes, the caption states "other V8 engines similar," meaning the sending unit location is comparable on other Ford V8s.

What years does this manual illustration cover?

The watermark reads "© Haynes 80-96," indicating the source manual covers approximately 1980 through 1996 models.

What landmarks help locate the sending unit in the diagram?

The drawing shows the distributor cap with plug wires and the oil filler cap nearby, with an arrow indicating the direction toward the front of the vehicle for orientation.

Home/ Registry/ Ford/ Bronco/ 1978-1979/ “None”/ Photo supermotors.net/registry/media/434939

Ford 5.0L & 5.8L V8 Coolant Temperature Sending Unit Location - Haynes Diagram

Haynes manual figure showing coolant temperature sending unit location on 5.0L/5.8L V8

‹ ›

Haynes manual figure illustrating the location of the coolant temperature sending unit on 5.0L and 5.8L V8 engines.

AI caption September 2006 · Photo 39 of 126

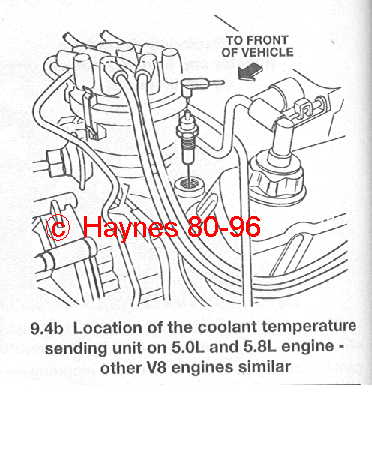

This is a scanned illustration from a Haynes repair manual (watermarked "© Haynes 80-96") showing the location of the coolant temperature sending unit on Ford 5.0L and 5.8L V8 engines, with a note that other V8 engines are similar. The figure is labeled 9.4b. The line drawing depicts the top of the engine, including the distributor cap with spark plug wires, the oil filler cap, and surrounding hoses and wiring. A callout arrow labeled "TO FRONT OF VEHICLE" orients the viewer, and the coolant temperature sending unit is shown threaded into the intake manifold area near the distributor, drawn in an exploded/lifted position to make its mounting point clear. A reader can learn where to find the coolant temperature sending unit on these V8 engines when diagnosing temperature gauge problems or replacing the sender. The document contains no part numbers, torque specifications, or wiring color codes—only the locational illustration and its caption. The "80-96" watermark suggests the manual covers 1980-1996 model years, which is relevant when applying it to specific vehicles.
