Where are grounds G200 and G201 located?

Per the illustration, G200 and G201 are located on the right (passenger) side of the instrument panel area, near connectors C260, C219, C212, C203 and C245; they are circled in the diagram.

Where is the police option fuse holder?

The diagram shows the location of the police option fuse holder at the right side of the dash, near the right kick panel/A-pillar area by connector C323.

Which connector goes to the electric brake controller?

C243 is labeled as the Electric Brake Controller Connector, located on the left side of the instrument panel.

Where is the driver's air bag connector?

C237 is labeled as the Driver's Air Bag Location, at the steering wheel/column area.

Which connectors relate to the transmission and speed sensors?

C111 (4R70W Transmission), C168 (Transmission Range), C112 (Output Shaft Speed), and C1020 (Vehicle Speed Sensor) are shown routed along the floor/console harness area.

Home/ Registry/ Mercury/ Grand Marquis/ 1992-1997/ “The "LSE S/C"”/ Photo supermotors.net/registry/media/457554

Ford Crown Victoria / Grand Marquis Dash Connector & Ground Locations G200 G201

Ford Crown Victoria interior wiring connector location diagram, dash and steering column

‹ ›

Ford Panther-platform interior connector/ground location illustration: dash, steering column and floor harness connectors C200/C219, G200/G201, transmission range and output shaft speed sensors, heated oxygen sensors.

AI caption November 2006 · Photo 398 of 1452

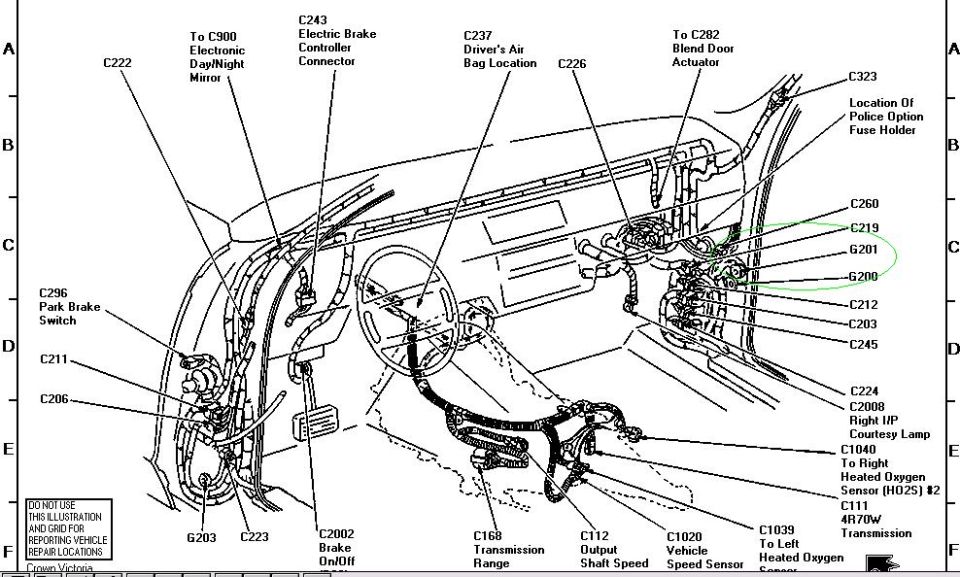

This document is a factory-style component location illustration showing the instrument panel (dashboard) area of a Ford Crown Victoria (also applicable to the Mercury Grand Marquis twin) with wiring harness connectors and ground points identified by callout labels. It maps connector locations behind and around the dash, including C222, C226, C237 (Driver's Air Bag location), C243 (Electric Brake Controller Connector), C296 (Park Brake Switch), C2002 (Brake On/Off switch), C168 (Transmission Range), C112 (Output Shaft Speed), C1020 (Vehicle Speed Sensor), C111 (4R70W Transmission), C1039 and C1040 (left and right Heated Oxygen Sensor HO2S #2 connectors), C2008 (Right I/P Courtesy Lamp), and reference paths to C900 (Electronic Day/Night Mirror) and C282 (Blend Door Actuator). Ground locations G200, G201 (circled by the uploader), and G203 are shown, along with the location of the police option fuse holder near the right side of the dash. Additional connectors C203, C206, C211, C212, C219, C223, C224, C245, C260, and C323 are pinpointed. The illustration uses an A–F grid but carries a warning not to use the grid for reporting vehicle repair locations. This is useful for locating grounds and connectors during electrical diagnosis.
