Ford C3065 Connector Pinout - Driver Seat Belt Buckle Switch Wiring (14A699)

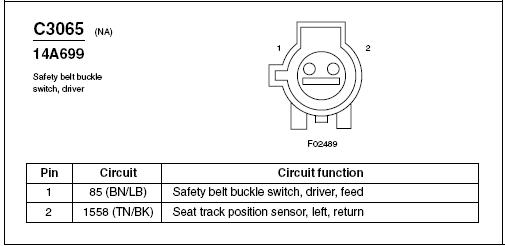

This document is a single connector pinout page from a Ford/Mercury wiring reference, covering connector C3065 (base part number 14A699), identified as the driver's safety belt buckle switch connector. It includes a connector face illustration (figure reference F02489) showing a round two-cavity connector with cavities numbered 1 and 2, plus a pinout table. Pin 1 carries circuit 85, a brown with light blue stripe (BN/LB) wire, functioning as the driver's safety belt buckle switch feed. Pin 2 carries circuit 1558, a tan with black stripe (TN/BK) wire, serving as the left seat track position sensor return. The '(NA)' notation appears next to the connector number. From this page a reader can identify the correct connector by its shape and cavity layout, determine which wire color corresponds to which function, and trace the seat belt buckle switch and seat track position sensor circuits for diagnosis of seat belt warning, airbag/restraint system, or belt-minder related issues. The document itself does not state a model year, vehicle model, or engine applicability; it was uploaded to a 1996 Mercury Grand Marquis gallery.
