1996 Mercury Grand Marquis Ground Wiring Diagram G201 S204 S206 - Grounds 10-6

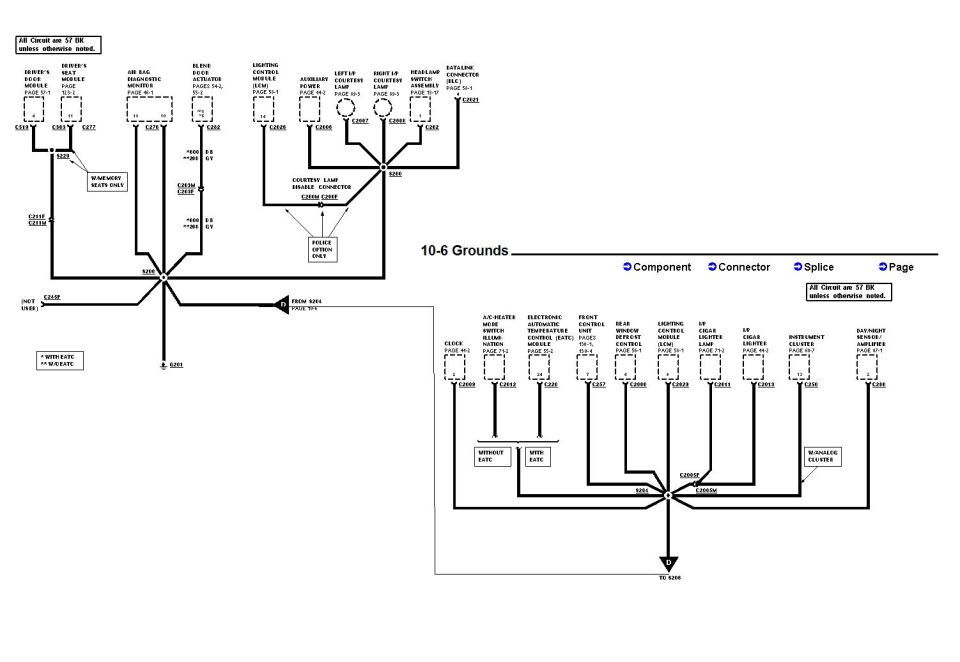

Grounds wiring diagram section 10-6 with component, connector and splice legend

‹ ›

Ground-circuit wiring diagram (section 10-6) showing ground distribution to components with connector/splice legend.

AI caption November 2006 · Photo 397 of 1452

This document is a two-part ground distribution wiring diagram (section 10-6 "Grounds") from a Ford/Mercury factory electrical manual, uploaded for a 1996 Mercury Grand Marquis. All circuits are noted as 57 BK (black) unless otherwise noted. The upper-left diagram shows ground G201 and splices S206, S200 and S229 serving the driver's door module, driver's seat module (memory seats only via S229), air bag diagnostic monitor, blend door actuator (with EATC/without-EATC wire variants 600 DB and 208 GY), lighting control module (LCM), auxiliary power, left and right I/P courtesy lamps, headlamp switch assembly, and the data link connector (DLC). A courtesy lamp disable connector (C200M/C200F) is shown for police option vehicles only. The lower-right diagram shows splice S204 grounding the clock, A/C-heater mode switch illumination, EATC module, front control unit, rear window defrost control, LCM, I/P cigar lighter and its lamp, instrument cluster (with analog cluster note), and day/night sensor/amplifier, joining to S206. Connector numbers (C519, C303, C277, C276, C282, C2026, C2006–C2008, C262, C2021, C2003, C2012, C228, C257, C2000, C2029, C2011, C2013, C250, C286, C2005F/M, C211F/M, C203M/F, C245F) and manual page references are given for each component, allowing a reader to trace interior ground circuits.
