Which DIS module pins drive the ignition coils?

Pin 8 drives COIL 1, pin 11 drives COIL 2, and pin 9 drives COIL 3, all going to the coil pack.

How are the spark plugs paired on the coil pack?

The plugs are paired as 1 (+) with 5 (−), 3 (+) with 4 (−), and 2 (+) with 6 (−).

What signals pass between the DIS module and the EEC-IV processor?

The DIS module sends IDM from its pin 12 to EEC-IV pin 4, and receives SPOUT on its pin 5 from EEC-IV pin 36. The EEC-IV also receives CID on pin 24, PIP on pin 56, and IGN GND on pin 16.

What do the camshaft and crankshaft sensors provide?

The camshaft sensor provides the CID signal and the crankshaft sensor provides the PIP signal; both sensors are powered by VBAT and grounded via IGN GND.

Which DIS module pins are power and ground?

Pins 1 and 2 are VBAT power and pin 7 is IGN GND; a chassis ground is also shown at the module.

Home/ Registry/ Ford/ Taurus/ 1992-1995/ “Taurus SHO”/ Photo supermotors.net/registry/media/545131

Ford DIS Ignition Block Diagram - EEC-IV, Coil Pack & Sensor Wiring (V6)

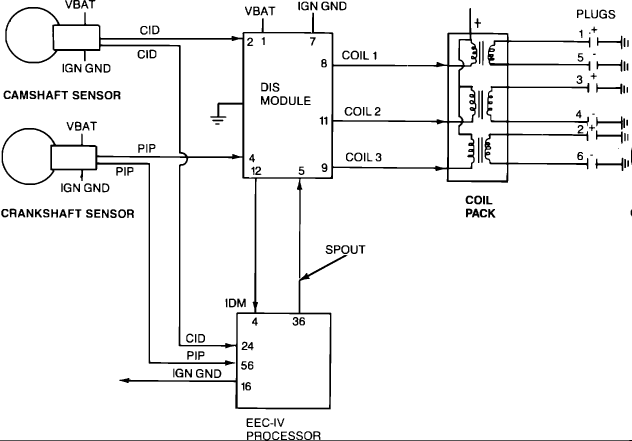

DIS ignition schematic showing cam and crank sensors, DIS module, coil pack and EEC-IV processor

‹ ›
