Ford DIS Ignition Timing Diagram - PIP, CID, SPOUT & Coil Current Waveforms

Ignition timing diagram showing PIP, CID, SPOUT and coil current waveforms versus crank degrees
Ignition timing diagram showing PIP, CID, SPOUT and coil current waveforms versus crank degreesOriginal file
Ignition timing diagram showing PIP, CID, SPOUT and coil current waveforms versus crank degrees

Reference · 1992-1995 TaurusAll 12 schematics

Ford Taurus SHO V6 DIS Wiring Diagram - Distributorless Ignition Schematic Ford DIS Module Pin-Out - 3.0L SEFI SHO & 3.8L SEFI SC Ignition Module Diagram Ford DIS Ignition Timing Diagram - PIP, CID, SPOUT & Coil Current Waveforms Ford DIS Ignition Block Diagram - EEC-IV, Coil Pack & Sensor Wiring (V6) Patent drawings Fig. 3 and Fig. 4 of dual plenum intake with interconnecting passageway V6 Engine PCV / Blow-By Gas Flow Schematic - Crankcase Ventilation Diagram Ford EEC Self-Test Diagnostic Connector Pinout - Signal Return, Fuel Pump Pins 3.0L SHO accessory drive belt routing with generator, A/C compressor and idler pulley callouts 3.2L SHO ATX drive belt routing with power steering, tensioner, generator and A/C pulleys Ford OBD-I Self-Test Hookup Diagram - DLC & STI Connector Jumper Wire (Taurus) V-type engine crankcase ventilation cross-section with fresh air and blow-by gas flow through hoses Ford EEC Self-Test Input (STI) & Data Link Connector (DLC) Diagram - Taurus 12schematics1992-1995 Ford Taurus More reference Focus Fanatic Hocus SHOcus opening spread with the SHO-powered Focus ZX3 by a dockBrochure Excess-Air Factor λ & Ignition Timing Effects on HC, NOx, CO Emissions - ManualManual page Ford Taurus 3.0L V6 Spark Plug Wire & Coil Pack Routing Diagram (1993)Wiring diagram SHO Time swap steps 10-14: shorter Fram PH3614 oil filter, A/C compressor, accessory brackets and exhaustService procedure 1987-95 Ford Taurus SHO TRW Rack & Pinion Steering Parts Diagram & Part NumbersExploded parts 1993 Ford Taurus Fuse Box Diagram - Panel Layout, Flasher & Color CodesFuse chart Aluminum H-Brace Fabrication Blueprint - 1993 Ford Taurus DIY Brace DrawingBlueprint Ford Mustang GT Coupe Premium window sticker with MSRP, fuel economy label and 5-star safety ratingsSpec plate Ford SHO 3.0L/3.2L V6 Engine Specs - Valve, Camshaft, Rod & Bearing ClearancesTorque spec

Timing diagram showing PIP, CID, SPOUT and coil firing waveforms relative to TDC and crank position.

Part of 1992-1995 Ford Taurus Schematics

AI caption · Photo 735 of 1028

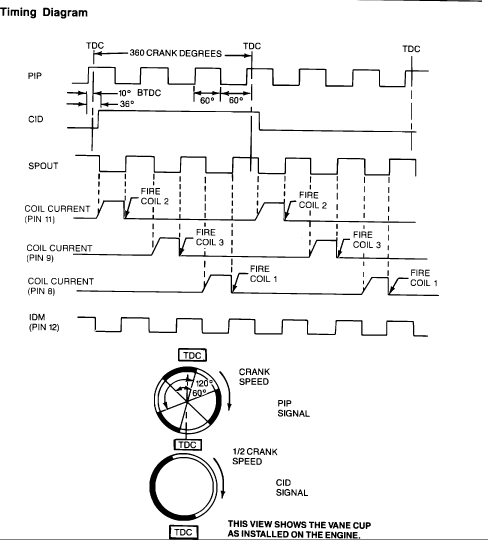

This document is a timing diagram for a Ford Distributorless Ignition System (DIS), uploaded as one page of a multi-page DIS reference set. The upper portion shows waveform traces plotted against crankshaft rotation (marked in TDC references spanning 360 crank degrees) for the PIP (Profile Ignition Pickup) signal, the CID (Cylinder Identification) signal, the SPOUT (Spark Output) signal, and the coil current signals on pins 11, 9, and 8, plus the IDM (Ignition Diagnostic Monitor) signal on pin 12. Annotations show the PIP signal occurring at 10° BTDC with a 36° reference and 60°/60° spacing between events. Dashed lines correlate each SPOUT edge with the firing points labeled "FIRE COIL 2," "FIRE COIL 3," and "FIRE COIL 1," showing the coil firing sequence relative to crank position. The lower portion illustrates the vane cup as installed on the engine: one rotor turning at crank speed generates the PIP signal (with 120° and 60° vane spacing noted), while a second rotor turning at 1/2 crank speed generates the CID signal. A reader can learn the timing relationships among PIP, CID, SPOUT, coil current, and IDM signals in the DIS system and how the vane cup produces the PIP and CID signals.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What signals are shown in this Ford DIS timing diagram?
It shows the PIP, CID, and SPOUT signals, coil current for pins 11, 9, and 8 (with fire points for coils 2, 3, and 1), and the IDM signal on pin 12, all plotted against 360 crank degrees between TDC marks.
At what crank angle does the PIP signal occur?
The diagram marks the PIP signal at 10° BTDC, with an additional 36° dimension and 60°/60° spacing between events.
Which pins carry the coil current signals?
Coil current is shown on pin 11 (Fire Coil 2), pin 9 (Fire Coil 3), and pin 8 (Fire Coil 1); the IDM signal is on pin 12.
How are the PIP and CID signals generated?
Per the lower illustration, the PIP signal is produced by a vane cup rotating at crank speed (with 120° and 60° vane spacing), while the CID signal comes from a element rotating at 1/2 crank speed. The view shows the vane cup as installed on the engine.
In what order do the coils fire in this diagram?
Following the SPOUT edges left to right, the sequence shown is Fire Coil 2, Fire Coil 3, then Fire Coil 1, repeating.
