How is the DIS module grounded?

Per the note in the diagram, Pin 7 (IGN GND) is connected internally to the bottom DIS module mounting holes.

Which pins on the DIS module control the ignition coils?

Pin 8 is COIL 1, Pin 9 is COIL 3, and Pin 11 is COIL 2.

Which engines does this DIS module pin-out apply to?

The document states it applies to the 3.0L SEFI SHO and 3.8L SEFI SC engines (Figure 2).

Which DIS module pins are unused?

Pins 3, 6, and 10 are shown with a dash, indicating no assigned function.

Home/ Registry/ Ford/ Taurus/ 1992-1995/ “Taurus SHO”/ Photo supermotors.net/registry/media/545135

Ford DIS Module Pin-Out - 3.0L SEFI SHO & 3.8L SEFI SC Ignition Module Diagram

Motorcraft DIS module pin-out drawing and pin assignment table for 3.0L SHO and 3.8L SC

‹ ›

Reference · 1992-1995 TaurusAll 12 schematics

Ford Taurus SHO V6 DIS Wiring Diagram - Distributorless Ignition Schematic

Ford DIS Module Pin-Out - 3.0L SEFI SHO & 3.8L SEFI SC Ignition Module Diagram

Ford DIS Ignition Timing Diagram - PIP, CID, SPOUT & Coil Current Waveforms

Ford DIS Ignition Block Diagram - EEC-IV, Coil Pack & Sensor Wiring (V6)

Patent drawings Fig. 3 and Fig. 4 of dual plenum intake with interconnecting passageway

V6 Engine PCV / Blow-By Gas Flow Schematic - Crankcase Ventilation Diagram

Ford EEC Self-Test Diagnostic Connector Pinout - Signal Return, Fuel Pump Pins

3.0L SHO accessory drive belt routing with generator, A/C compressor and idler pulley callouts

3.2L SHO ATX drive belt routing with power steering, tensioner, generator and A/C pulleys

Ford OBD-I Self-Test Hookup Diagram - DLC & STI Connector Jumper Wire (Taurus)

V-type engine crankcase ventilation cross-section with fresh air and blow-by gas flow through hoses

Ford EEC Self-Test Input (STI) & Data Link Connector (DLC) Diagram - Taurus

12schematics1992-1995 Ford Taurus More reference

Focus Fanatic Hocus SHOcus opening spread with the SHO-powered Focus ZX3 by a dock

Brochure

Excess-Air Factor λ & Ignition Timing Effects on HC, NOx, CO Emissions - Manual

Manual page

Ford Taurus 3.0L V6 Spark Plug Wire & Coil Pack Routing Diagram (1993)

Wiring diagram

SHO Time swap steps 10-14: shorter Fram PH3614 oil filter, A/C compressor, accessory brackets and exhaust

Service procedure

1987-95 Ford Taurus SHO TRW Rack & Pinion Steering Parts Diagram & Part Numbers

Exploded parts

1993 Ford Taurus Fuse Box Diagram - Panel Layout, Flasher & Color Codes

Fuse chart

Blueprint

Ford Mustang GT Coupe Premium window sticker with MSRP, fuel economy label and 5-star safety ratings

Spec plate

Ford SHO 3.0L/3.2L V6 Engine Specs - Valve, Camshaft, Rod & Bearing Clearances

Torque spec

DIS module pin-out drawing with a pin assignment table listing VBAT, CID, PIP, SPOUT and coil connections.

Part of 1992-1995 Ford Taurus Schematics

AI caption July 2007 · Photo 736 of 1028

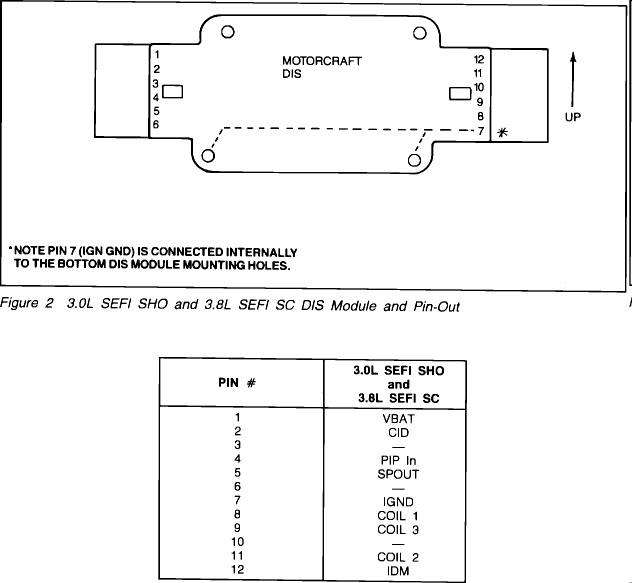

This document is Figure 2 from a Ford/Motorcraft technical reference, showing the DIS (Distributorless Ignition System) module and its connector pin-out for the 3.0L SEFI SHO and 3.8L SEFI SC engines. The upper portion is a physical diagram of the Motorcraft DIS module, showing the 12-pin connector layout: pins 1 through 6 on the left side and pins 12 down to 7 on the right side, with an "UP" orientation arrow. A footnote indicates that Pin 7 (ignition ground, IGN GND) is connected internally to the bottom DIS module mounting holes. Below the diagram, a table lists each pin's function: Pin 1 = VBAT, Pin 2 = CID, Pin 3 = not used, Pin 4 = PIP In, Pin 5 = SPOUT, Pin 6 = not used, Pin 7 = IGND, Pin 8 = COIL 1, Pin 9 = COIL 3, Pin 10 = not used, Pin 11 = COIL 2, Pin 12 = IDM. A reader can use this to identify wiring and signal assignments when diagnosing or repairing the DIS ignition module on these engines.
