2003+ Lincoln Town Car CHMSL Third Brake Lamp Connector C302 Pinout & Wire Colors

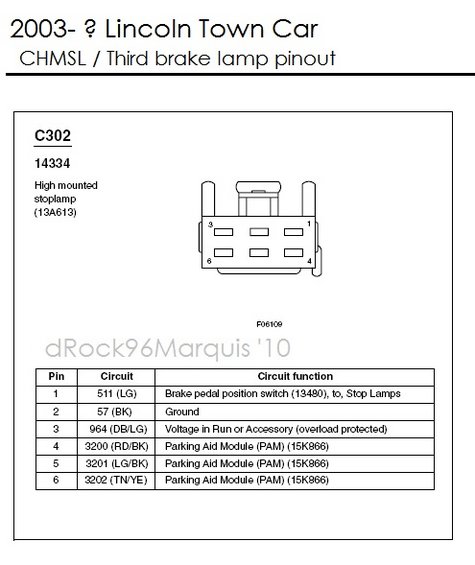

This document is a connector pinout reference for the Center High Mounted Stop Lamp (CHMSL, or third brake lamp) on the 2003 and later Lincoln Town Car. It identifies connector C302 (harness reference 14334) for the high mounted stoplamp (part reference 13A613) and includes a diagram of the 6-pin connector face with pin position numbering. A table lists all six pins with their circuit numbers, wire colors, and functions: Pin 1 is circuit 511 (light green) from the brake pedal position switch (13480) to the stop lamps; Pin 2 is circuit 57 (black) ground; Pin 3 is circuit 964 (dark blue/light green) providing voltage in Run or Accessory (overload protected); and Pins 4, 5, and 6 are circuits 3200 (red/black), 3201 (light green/black), and 3202 (tan/yellow), all connecting to the Parking Aid Module (PAM, reference 15K866). This information is useful for diagnosing third brake lamp or reverse-sensing (parking aid) wiring issues, testing for power and ground at the CHMSL connector, or splicing/repairing the harness. The document is watermarked "dRock96Marquis '10" and references diagram figure F06109.
