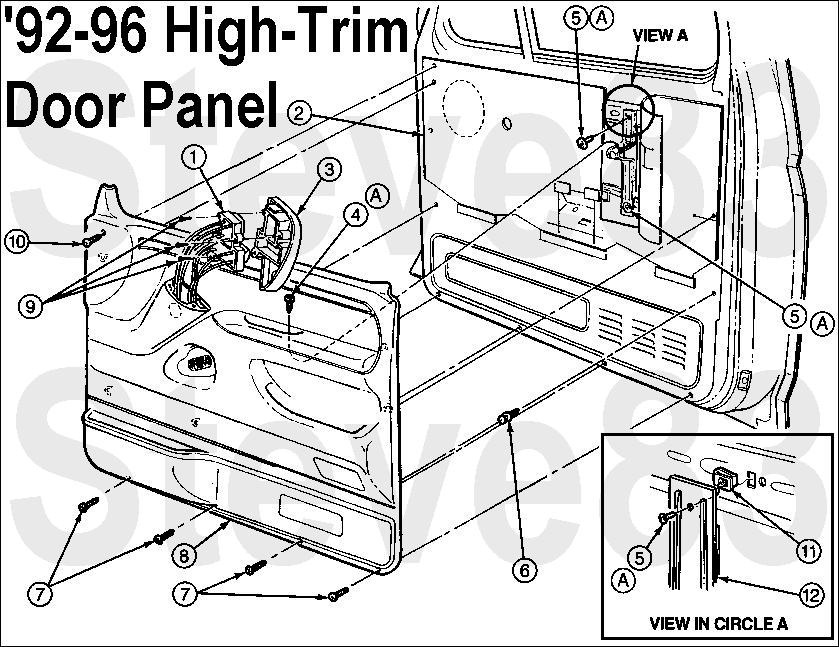

'92-96 Door Panel, High Trim

1 Window Regulator Control Wiring (Part of 14630)
2 Front Door Trim Shield 237A04
3 Window Regulator Switch Housing 14527
4 Screw (1 Req'd Each Side) 56912-S58
5 Screw and Washer 56914-S58
6 Pushpin (5 Req'd Each Side) N801925-S (Au-Ve-Co AUV-AP12565; possible equivalents include Disco 1575, Dorman 963-010, PDQ 2919T)
7 Screw and Washer Assembly (4 Req'd Each Side) N805121-S303
8 Front Door Trim Panel 23942
9 Screw (3 Req'd Each Side) 55928-S2
10 Screw and Washer (1 Req'd Each Side) N806578-S58
11 Spring Nut N802539-S100
12 Armrest Support 24022
A -- Tighten to 1-2 N-m (9-18 Lb-In)

Removal
1. Remove screw(s) retaining the front arm rest pad (24100) to front door trim panel (23942).
2. Remove screw retaining inside door handle (22600). Remove inside door handle.
3. Remove the screw retaining window regulator handle, if equipped. Remove window regulator handle and washer.
4. If equipped with power windows, remove window regulator switch housing (14527).
5. If equipped with power door locks, remove the power door lock switch housing.
6. Remove door lock switch (14028 ), if equipped.
7. Remove outside rear view mirror control (17B676), if equipped.
8. Carefully pry front door trim panel and pushpins away from front door trim shield (237A04), using Windshield and Moulding/Trim Removal Kit. Never pull on front door trim panel to remove pushpins from front door trim shield.

Installation
1. Follow removal procedures in reverse order.
2. Tighten screw and washer assembly 1-2 N-m (9-18 lb-in).
