Ford Bronco Radius Arm Frame Mount Bracket Blueprint - Hole Dimensions (CAD)

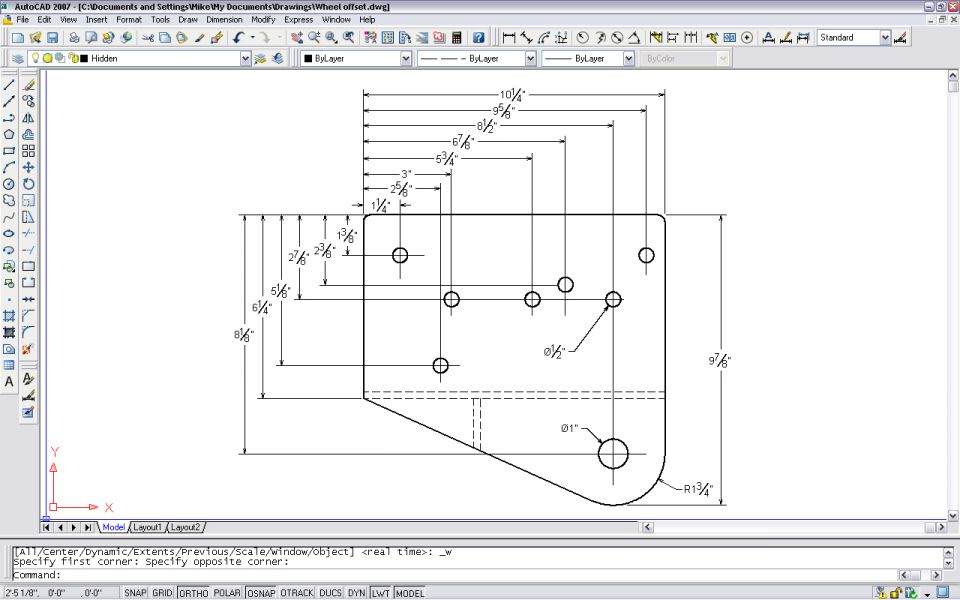

This document is a screenshot of an AutoCAD 2007 session showing a dimensioned 2D blueprint of a flat plate/bracket, saved as "Wheel offset.dwg." The part is roughly 10 1/4 inches wide by 9 7/8 inches tall with a rounded (R1 3/4") lower-right corner and an angled lower-left edge. Seven 1/2-inch diameter holes are located across the plate at fully dimensioned positions: horizontal spacings of 1 1/4", 2 5/8", 3", 5 3/4", 6 7/8", 8 1/2", 9 5/8", and 10 1/4" from the left edge, and vertical spacings of 1 3/8", 2 3/8", 2 7/8", 5 1/8", 6 1/4", and 8 1/8" from the top edge. A single 1-inch diameter hole is located near the bottom-right of the plate. Dashed hidden lines cross the lower portion of the plate. The uploader filed it as "Radius Arm Frame Mounts_1.jpg" in an album containing related bracket and radius-arm dimension drawings, suggesting it is a fabrication template for a radius arm frame bracket for a 1995 Ford Bronco. A reader can use this drawing to lay out and drill a replacement or custom bracket, since all hole positions, diameters, the corner radius, and overall envelope dimensions are given in inches.
