1995 Ford Bronco Radius Arm Frame Mount Bracket Blueprint - Dimensions Drawing

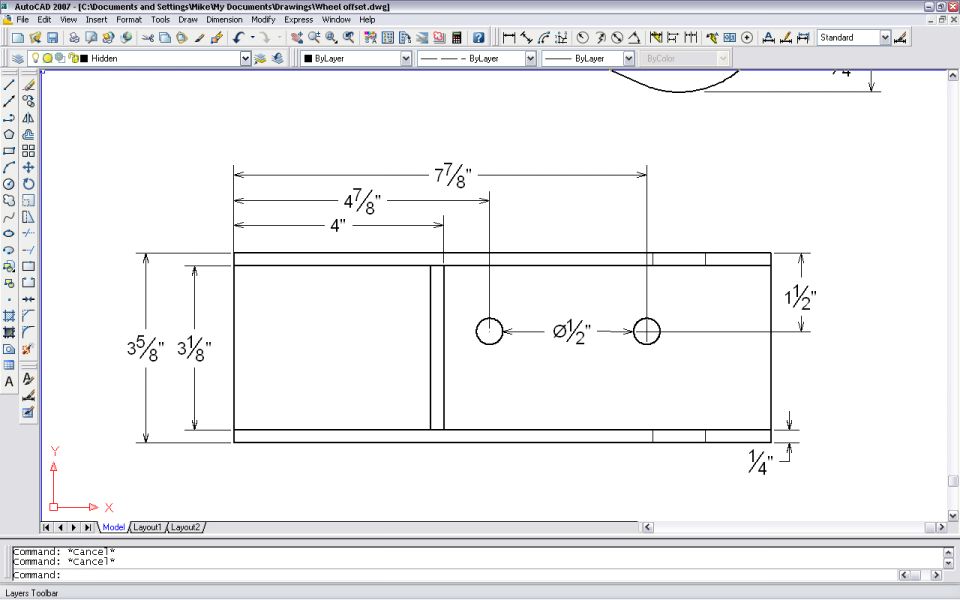

This document is a screenshot of an AutoCAD 2007 session displaying a dimensioned 2D blueprint from a file named "Wheel offset.dwg," uploaded as part of a set of radius arm frame mount drawings for a 1995 Ford Bronco. The drawing shows a side view of a rectangular bracket (apparently a channel or C-section frame mount) with two 1/2"-diameter holes. Key dimensions include: overall length reference of 7 7/8" to the far hole center, 4 7/8" to the near hole center, 4" to an internal plate or divider, overall height of 3 5/8", inner height of 3 1/8", hole centerline located 1 1/2" down from the top edge, and 1/4" material/flange thickness at the bottom. A reader can use these dimensions to fabricate or verify the geometry of a radius arm frame mount bracket, including hole spacing and placement for the mounting bolts. No part numbers, torque specs, or model-year applicability are stated in the document itself; the vehicle attribution comes only from the uploader's gallery. Companion drawings in the same album (Bracket, Pinion Angle, RA C Dims, Radius Arm Frame Mounts_1) likely provide additional views of the same fabrication project.
