What are the CFM ratings of the Ingersoll Rand SS5L5 compressor?

Per the data plate: 21 CFM at 40 PSIG, 18.1 CFM at 90 PSIG, and 15.5 CFM at max pressure.

What is the maximum pressure and tank capacity of this compressor?

Maximum pressure is 135 PSI and tank capacity is 60 (gallons). The embossed tank plate shows MAWP 150 PSI at 450°F.

What are the electrical requirements for the SS5L5?

230 volts, 60 Hz, single phase. Amps are marked with an asterisk: see the motor/tank nameplate. If connected to a fuse-protected circuit, use time-delay fuses marked 'D'.

What is the serial number and pump speed shown?

Serial number CBV128270, with a pump speed of 950 (RPM). The stamped tank plate shows tank serial M155784, year 2011.

Does this unit meet California safety requirements?

Yes, the label states the unit conforms to California safety order 462(L)(2).

Home/ Registry/ Ford/ F-250/ 1992-1997/ “Sold Feb 2019”/ Photo supermotors.net/registry/media/880352

Ingersoll Rand SS5L5 Air Compressor Data Plate - 5HP 60 Gal 230V Specs

Ingersoll Rand air compressor data plate, model CBV128270, 60 PSIG rating

‹ ›

Spec/serial plate on an Ingersoll Rand industrial air compressor: model CBV128270, max pressure 60 PSIG, multilingual ratings for pump speed and tank capacity.

AI caption August 2011 · Photo 37 of 88

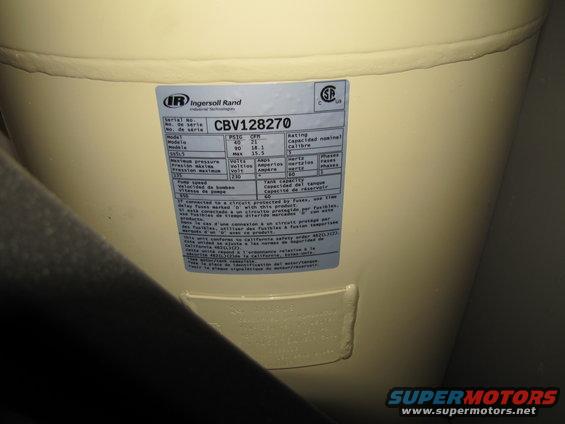

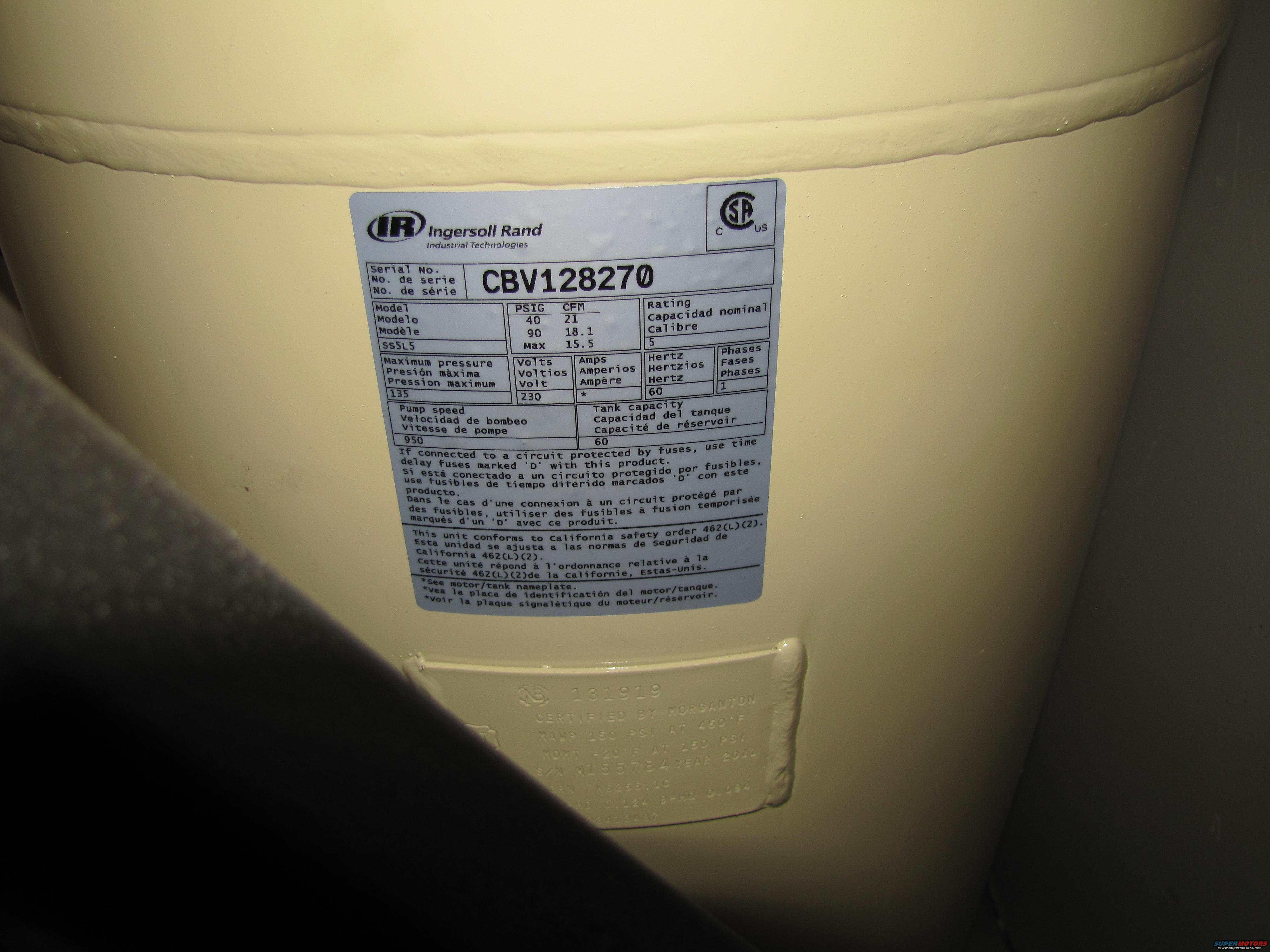

This photograph shows the data/specification plate on an Ingersoll Rand Industrial Technologies air compressor, model SS5L5, serial number CBV128270. The label lists key performance and electrical specifications: air delivery of 21 CFM at 40 PSIG, 18.1 CFM at 90 PSIG, and 15.5 CFM at max pressure; a rating of 5 (HP); maximum pressure of 135 PSI; 230 volts, single phase, 60 Hz (amperage marked with an asterisk directing the reader to the motor/tank nameplate); pump speed of 950 RPM; and a 60-gallon tank capacity. Multilingual (English/Spanish/French) notes advise using type 'D' time-delay fuses when connected to a fuse-protected circuit, and state that the unit conforms to California safety order 462(L)(2). Below the label, a painted-over embossed ASME-style tank plate is partially readable, showing National Board number 181919, 'Certified by Morganton,' MAWP 150 PSI at 450°F, MDMT -20°F at 150 PSI, tank serial M155784, and year 2011. This is shop equipment documentation, not a Ford vehicle document, though it was uploaded to a 1993 Ford F-250 gallery.

This document covers 2011, which may differ from this 1993 Ford F-250.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What are the CFM ratings of the Ingersoll Rand SS5L5 compressor?: Per the data plate: 21 CFM at 40 PSIG, 18.1 CFM at 90 PSIG, and 15.5 CFM at max pressure.
What is the maximum pressure and tank capacity of this compressor?: Maximum pressure is 135 PSI and tank capacity is 60 (gallons). The embossed tank plate shows MAWP 150 PSI at 450°F.
What are the electrical requirements for the SS5L5?: 230 volts, 60 Hz, single phase. Amps are marked with an asterisk: see the motor/tank nameplate. If connected to a fuse-protected circuit, use time-delay fuses marked 'D'.
What is the serial number and pump speed shown?: Serial number CBV128270, with a pump speed of 950 (RPM). The stamped tank plate shows tank serial M155784, year 2011.
Does this unit meet California safety requirements?: Yes, the label states the unit conforms to California safety order 462(L)(2).
