What fuse protects the radio in a 1995 Ford Bronco?

Fuse position A in the engine compartment fuse box, rated at 20 amps, protects the radio.

What amperage is the maxi-fuse for the rear window defrost on a 1995 Bronco?

Maxi-fuse position M, rated at 30 amps, protects the Rear Window Defrost.

Which maxi-fuse feeds the headlamps on a 1995 Bronco?

Maxi-fuse position R, rated 40 amps, protects the Main Light Switch and Headlamps.

What does fuse E protect in the 1995 Bronco engine compartment fuse box?

Fuse E (15 amps) protects the Heated Oxygen Sensor (HO2s), Backup Lamps, 4WABS, Trailer Battery Charge Relay, Daytime Running Lamps, and Speed Control.

Home/ Registry/ Ford/ Bronco/ 1987-1991/ “Eddie Bauer”/ Photo supermotors.net/registry/media/901327

1995 Ford Bronco Engine Compartment Fuse Box Diagram - Fuse & Relay Chart

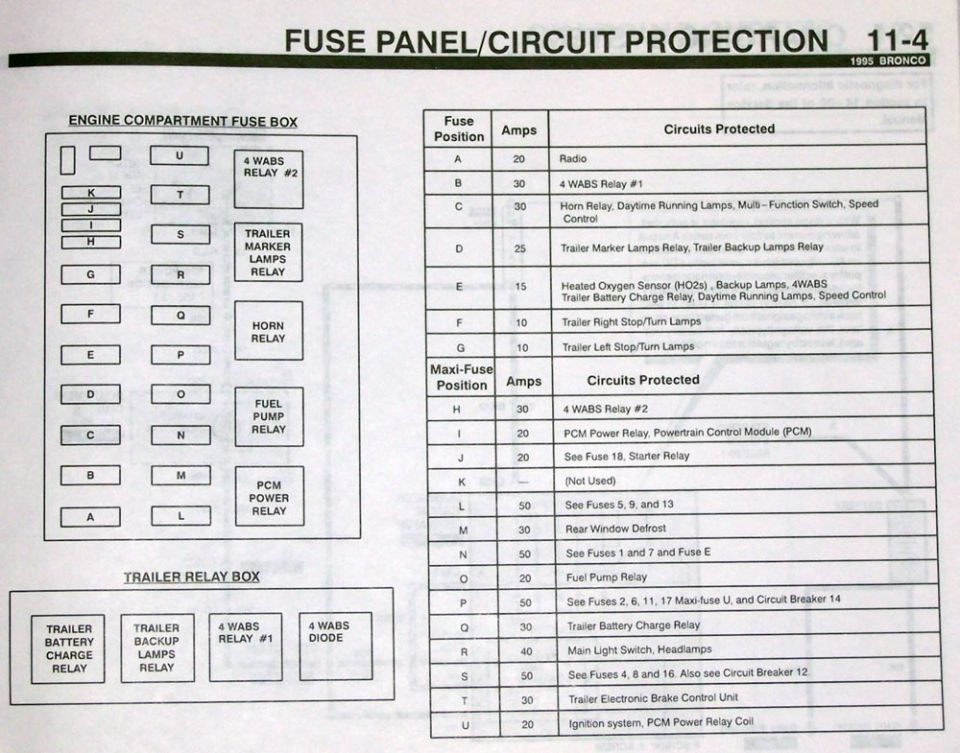

1995 Ford Bronco engine compartment fuse box and maxi-fuse layout and circuit chart, EVTM page 11-4

‹ ›

Engine-compartment fuse box and trailer relay box diagram with a fuse-position table listing amperage and protected circuits, including 4WABS relays, fuel pump relay and PCM power relay.

AI caption December 2011 · Photo 1050 of 1799

This document is page 11-4 of a 1995 Ford Bronco service reference covering the Fuse Panel/Circuit Protection section, specifically the engine compartment fuse box and trailer relay box. A layout diagram shows the physical arrangement of fuse and maxi-fuse positions A through U in the engine compartment box, along with relays for 4 WABS Relay #2, Trailer Marker Lamps, Horn, Fuel Pump, and PCM Power. A separate diagram shows the Trailer Relay Box containing the Trailer Battery Charge Relay, Trailer Backup Lamps Relay, 4 WABS Relay #1, and 4 WABS Diode. The accompanying table lists each fuse position (A–G) and maxi-fuse position (H–U) with its amperage rating and the circuits protected, such as the radio (20A, position A), horn/daytime running lamps (30A, position C), heated oxygen sensor and backup lamps (15A, position E), rear window defrost (30A maxi-fuse M), headlamps (40A maxi-fuse R), trailer electronic brake control unit (30A, T), and ignition system/PCM power relay coil (20A, U). Position K is not used. A reader can use this page to identify which under-hood fuse or maxi-fuse protects a given circuit and its correct amperage for troubleshooting or replacement.

This document covers 1995, which may differ from this 1990 Ford Bronco.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What fuse protects the radio in a 1995 Ford Bronco?: Fuse position A in the engine compartment fuse box, rated at 20 amps, protects the radio.
What amperage is the maxi-fuse for the rear window defrost on a 1995 Bronco?: Maxi-fuse position M, rated at 30 amps, protects the Rear Window Defrost.
Which maxi-fuse feeds the headlamps on a 1995 Bronco?: Maxi-fuse position R, rated 40 amps, protects the Main Light Switch and Headlamps.
What relays are located in the 1995 Bronco trailer relay box?: The Trailer Relay Box contains the Trailer Battery Charge Relay, Trailer Backup Lamps Relay, 4 WABS Relay #1, and the 4 WABS Diode.
What does fuse E protect in the 1995 Bronco engine compartment fuse box?: Fuse E (15 amps) protects the Heated Oxygen Sensor (HO2s), Backup Lamps, 4WABS, Trailer Battery Charge Relay, Daytime Running Lamps, and Speed Control.
