What fuse protects the radio in a 1995 Ford Bronco?

Fuse position A, a 20 amp fuse in the engine compartment fuse box, protects the radio.

Where is the fuel pump relay fuse in the 1995 Bronco engine compartment fuse box?

Maxi-fuse position O, rated at 20 amps, protects the Fuel Pump Relay. The Fuel Pump Relay itself is located in the right column of the engine compartment fuse box.

What amperage is the headlamp maxi-fuse on a 1995 Bronco?

Maxi-fuse position R is 40 amps and protects the Main Light Switch and Headlamps.

Which fuse position is not used in the 1995 Bronco engine compartment fuse box?

Position K is listed as (Not Used) with no amperage assigned.

Home/ Registry/ Ford/ Bronco/ 1987-1991/ “Eddie Bauer”/ Photo supermotors.net/registry/media/863654

1995 Ford Bronco Engine Compartment Fuse Box Diagram - Fuse & Relay Chart

1995 Ford Bronco engine compartment fuse box and maxi-fuse layout and circuit chart, EVTM page 11-4

‹ ›

Engine-compartment fuse box and trailer relay box diagram with a fuse-position table listing amperage and protected circuits, including 4WABS relays, fuel pump relay and PCM power relay.

AI caption April 2011 · Photo 694 of 1799

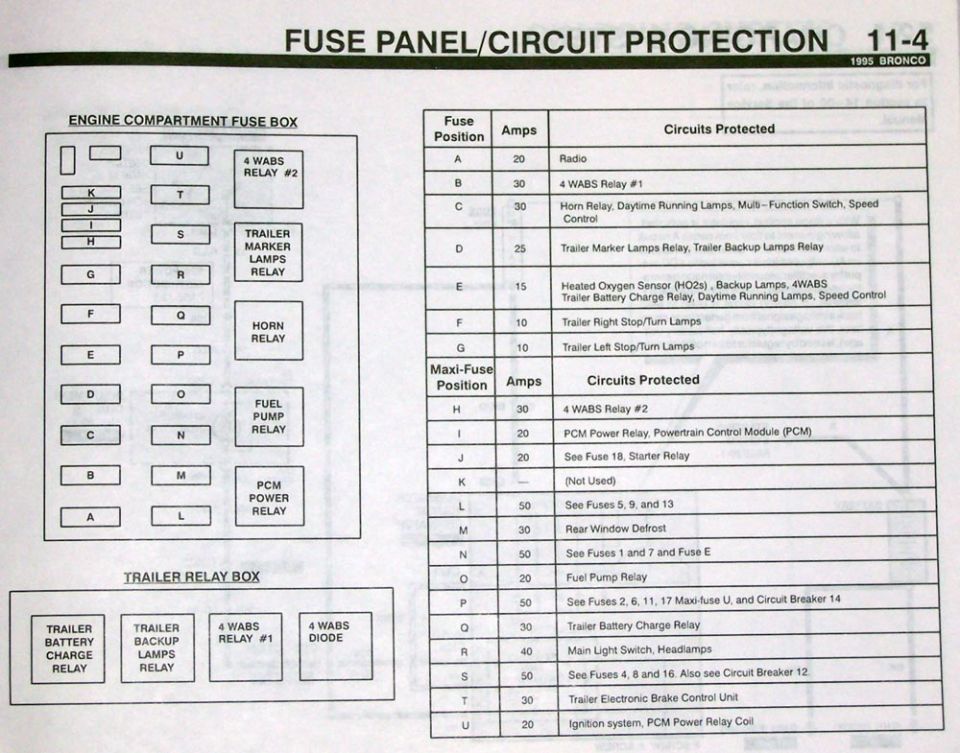

This is page 11-4, 'Fuse Panel/Circuit Protection,' from a 1995 Ford Bronco reference manual. It documents the engine compartment fuse box, showing the physical layout of fuse positions A–K (left column), fuse/maxi-fuse positions L–U (middle column), and five relays (4 WABS Relay #2, Trailer Marker Lamps Relay, Horn Relay, Fuel Pump Relay, and PCM Power Relay). A separate diagram shows the Trailer Relay Box containing the Trailer Battery Charge Relay, Trailer Backup Lamps Relay, 4 WABS Relay #1, and 4 WABS Diode. A detailed table lists each fuse position (A–G) with amperage ratings from 10 to 30 amps and the circuits protected, such as the radio (20A), horn relay/daytime running lamps (30A), and trailer stop/turn lamps (10A each). A second table covers maxi-fuse positions H–U, ranging from 20 to 50 amps, protecting circuits including the PCM power relay, rear window defrost, fuel pump relay, main light switch/headlamps, trailer electronic brake control unit, and ignition system. Several maxi-fuses feed interior fuse panel fuses (cross-referenced by number) and circuit breakers. Position K is marked as not used. Readers can use this page to identify fuse locations, ratings, and circuit assignments for the 1995 Bronco's underhood power distribution box.

This document covers 1995, which may differ from this 1990 Ford Bronco.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What fuse protects the radio in a 1995 Ford Bronco?: Fuse position A, a 20 amp fuse in the engine compartment fuse box, protects the radio.
Where is the fuel pump relay fuse in the 1995 Bronco engine compartment fuse box?: Maxi-fuse position O, rated at 20 amps, protects the Fuel Pump Relay. The Fuel Pump Relay itself is located in the right column of the engine compartment fuse box.
What amperage is the headlamp maxi-fuse on a 1995 Bronco?: Maxi-fuse position R is 40 amps and protects the Main Light Switch and Headlamps.
What relays are in the 1995 Bronco trailer relay box?: The Trailer Relay Box contains the Trailer Battery Charge Relay, Trailer Backup Lamps Relay, 4 WABS Relay #1, and the 4 WABS Diode.
Which fuse position is not used in the 1995 Bronco engine compartment fuse box?: Position K is listed as (Not Used) with no amperage assigned.
