1-Touch Up & Down on the driver's door harness from a '93 Bronco XLT

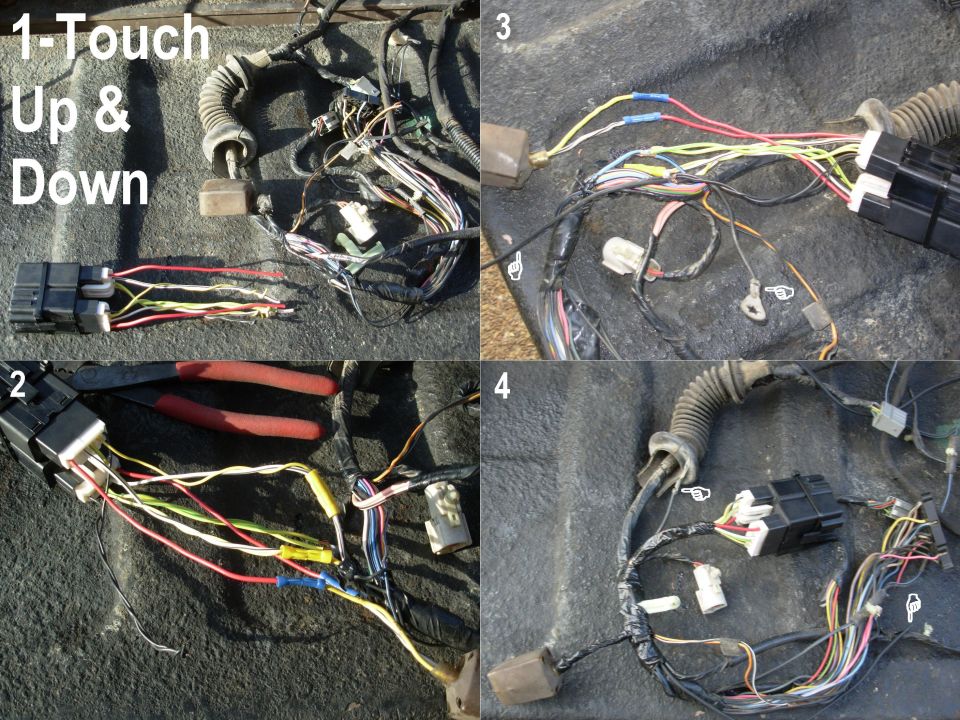

1. This mod requires two common Ford 1-touch modules with pigtail connectors. I zip-tied these together face-to-face and twisted the wires together that will be connected. Then I opened the harness where I'll be splicing.
2. Cut the motor wires and connect them to the modules' red wires. Then connect each cut harness wire to the Bk/Wh from the same module as the R wire is connected to. In this case, one module is connected to the door's Y wires; the other to the doors Bk/Wh wires.
3. Splice the ground & power wires from both modules to the door's Bk & LB/Bk, respectively. I also chose to add a new door ground wire (white pointers).
4. Tape up the splices & reattach any hangers.
