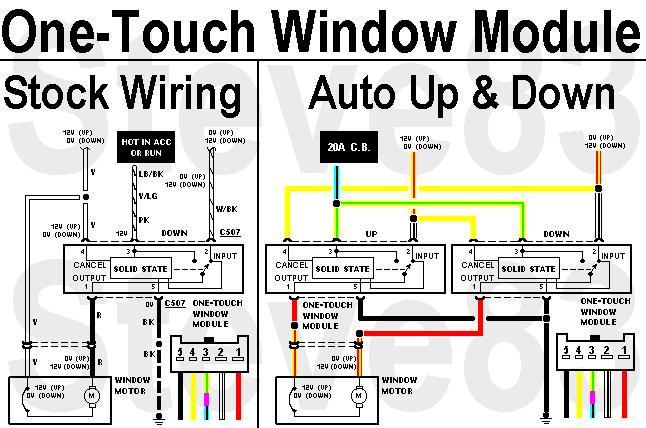

One-touch window module wiring schematic, stock versus auto up a…

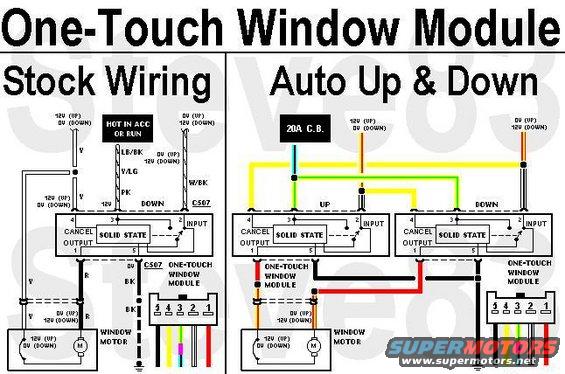

One-Touch Window Module Wiring
IF THE IMAGE IS TOO SMALL, click it.

These modules can be found in most Crown Vics/MGMs/LTCs up to ~'96, and many Taurus/Sables and T-Bird/Cougars of the same era. The module is about 1x2x3", usually in a blue or black case with a black connector in the driver's door. But many Ford modules are the same size & shape, with the same connector, so be careful. The most-common wire colors are indicated on the L, but others are possible. The colors indicated on the R side are for adding the modules to '80-96 F-series & Bronco doors.

This feature can be added to almost any reversible DC motor, like power windows, the Bronco tailgate window, power antenna, and even power seats. It'll also work on many other circuits to hold a hot feed for about 10sec after a 0.1-0.4sec hot pulse. The module self-cancels if the current draw exceeds some preset limit, which is how it knows to stop when the window hits the end of its travel, or an obstruction.

SEE THE NEXT SEVERAL PICS...

. . .
