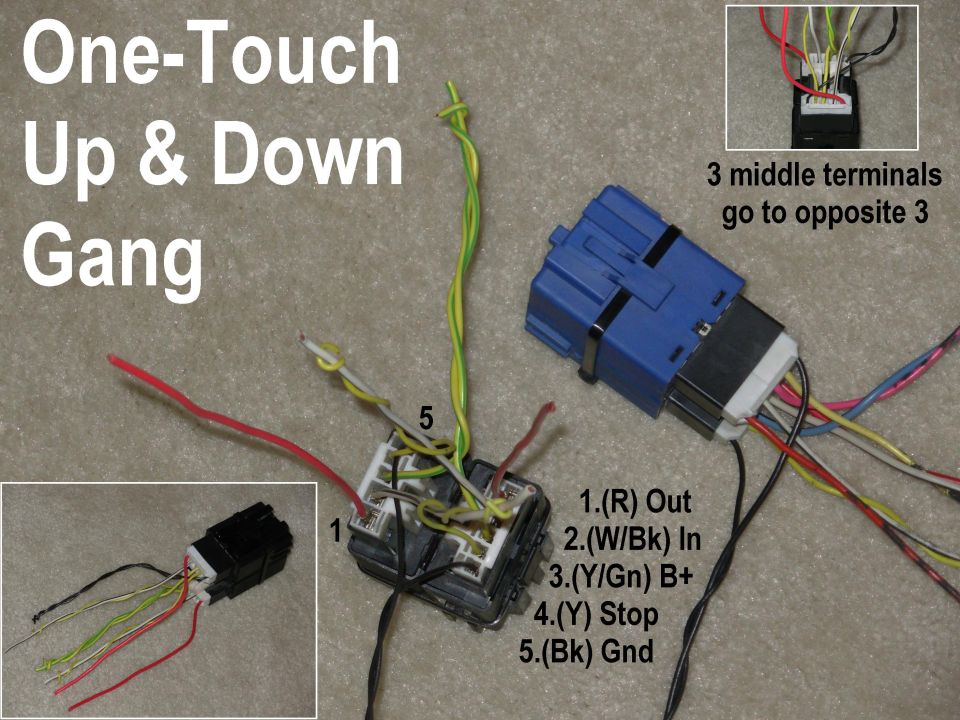

To make the modules work for 1-touch up AND down, gang 2 modules as shown. With the modules back-to-back, the 3 middle wires on each module go straight across to the other 3 middle wires. Then the reds go to the motor wires, & the blacks pair up.
.
.
.
