Driveshaft U-Joint Angle Alignment Diagram - Pinion Angle & Vibration Guide

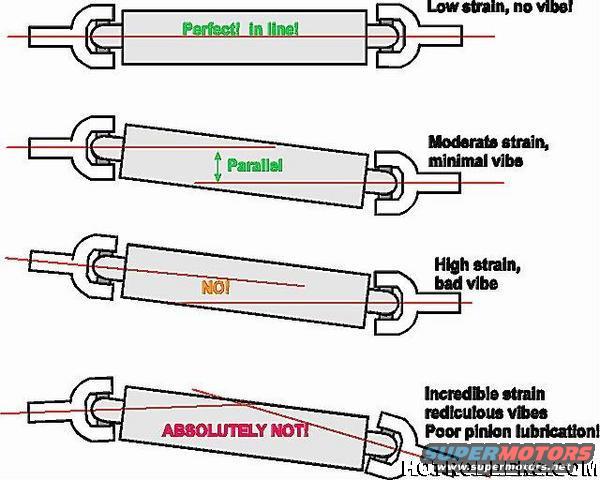

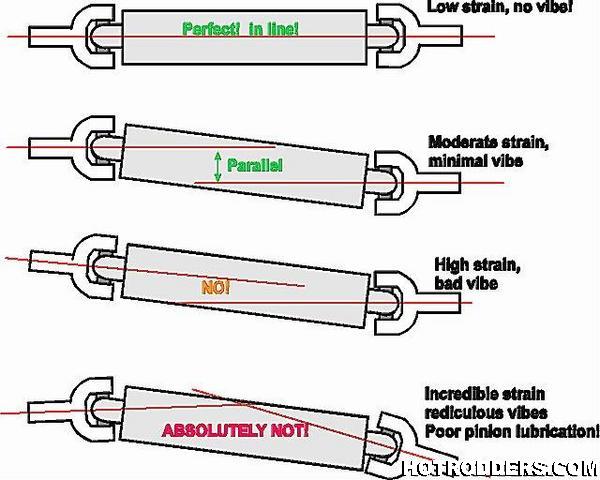

This is a graphical reference diagram (credited to HOTRODDERS.COM) illustrating four possible driveline/driveshaft alignment geometries between two U-joint yokes and the resulting strain and vibration for each. Four driveshaft assemblies are drawn, each with a red centerline showing the relative angles of the transmission output and pinion. The first configuration, labeled 'Perfect! in line!', shows the shafts perfectly in line and is rated 'Low strain, no vibe!'. The second, labeled 'Parallel', shows the input and output shafts offset but parallel (equal and opposite U-joint angles) and is rated 'Moderate strain, minimal vibe'. The third, labeled 'NO!', shows non-parallel angles and is rated 'High strain, bad vibe'. The fourth, labeled 'ABSOLUTELY NOT!', shows severely mismatched angles and warns of 'Incredible strain, rediculous vibes, Poor pinion lubrication!'. A reader learns that acceptable driveline setup requires the transmission output and pinion centerlines to be either perfectly in line or parallel to each other, and that any angular mismatch between them increases U-joint strain and driveline vibration, with extreme misalignment also compromising pinion lubrication. The document contains no year, make, model, part numbers, or measured angle values — it is a general driveline geometry guide.
