Hyundai Genesis Coupe 2.0T G4KF Knock Sensor & Starter Connector Locations

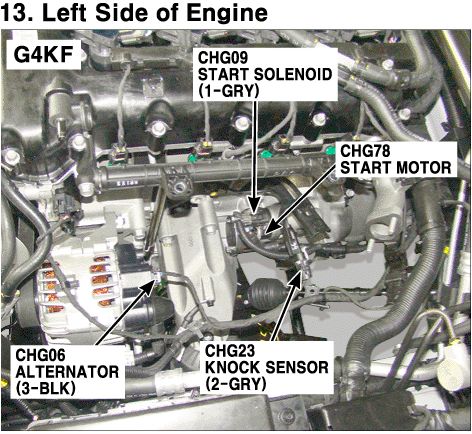

This document is a labeled photographic connector-location diagram titled "13. Left Side of Engine" for the G4KF engine (Hyundai's 2.0L turbo four-cylinder used in the Genesis Coupe). The photo shows the left side of the engine bay with callout boxes and arrows identifying four electrical connectors: CHG09, the start solenoid connector (1-pin, gray); CHG78, the start motor connection; CHG06, the alternator connector (3-pin, black); and CHG23, the knock sensor connector (2-pin, gray). Each callout indicates the connector designation, the component it serves, and (where given) the pin count and housing color. The arrows point to the physical locations of these connectors on the engine, with the alternator visible at the lower left, the starter area at center-right below the intake manifold and fuel rail, and the knock sensor connector near the starter. A reader can use this page to physically locate and identify the knock sensor connector (CHG23) and nearby starter/alternator connectors when performing diagnostics or repairs on this engine. This appears to be a page from a Hyundai electrical troubleshooting or harness connector location manual.
