C205 in-line connector C205F 14401 and C205M 14405 face views wi…

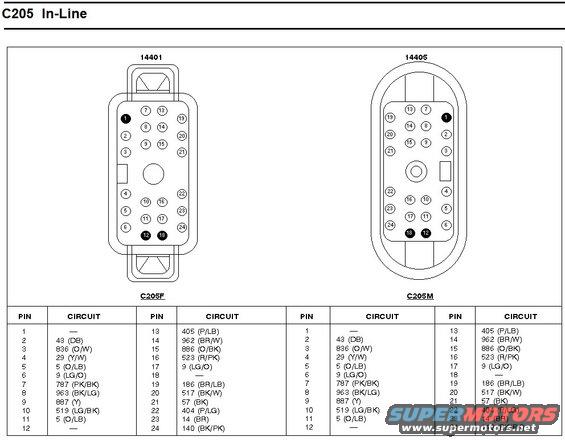

Wiring diagram of 24-pin C205 in-line connector showing C205F (14401) and C205M (14405) faces with circuit tables, from 43 (DB) to 140 (BK/PK).
Part of 1992-1996 Ford Bronco Wiring Diagrams
