What is the resistance of the rear axle VSS?

The diagram shows the Rear Axle VSS as 1330 Ω, connected via connector C404.

Which PCM pin receives the vehicle speed signal?

PCM connector C185, pin 3, receives the 679 GY/BK signal; a jumper wire (shown as a blue dashed line) was added to this connection.

What wire colors run between the rear axle sensor and the ABS module?

519 LG/BK (Rear Sensor Low) and 523 RPK (Rear Sensor High), routed through connector C205 pins 10 and 16.

Where are grounds G100 and G200 located?

G100 is at the LH core support; G200 is behind the RH cowl panel, reached via splice S216 in the main harness near the takeout to G200.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ 1996 Ford Bronco/ Photo supermotors.net/registry/media/1161741

Ford Bronco VSS to PCM Wiring Diagram - Rear Axle Sensor, PSOM, ABS Circuit

Ford speed control / VSS wiring diagram with ABS module, PSOM, rear axle VSS and PCM

‹ ›

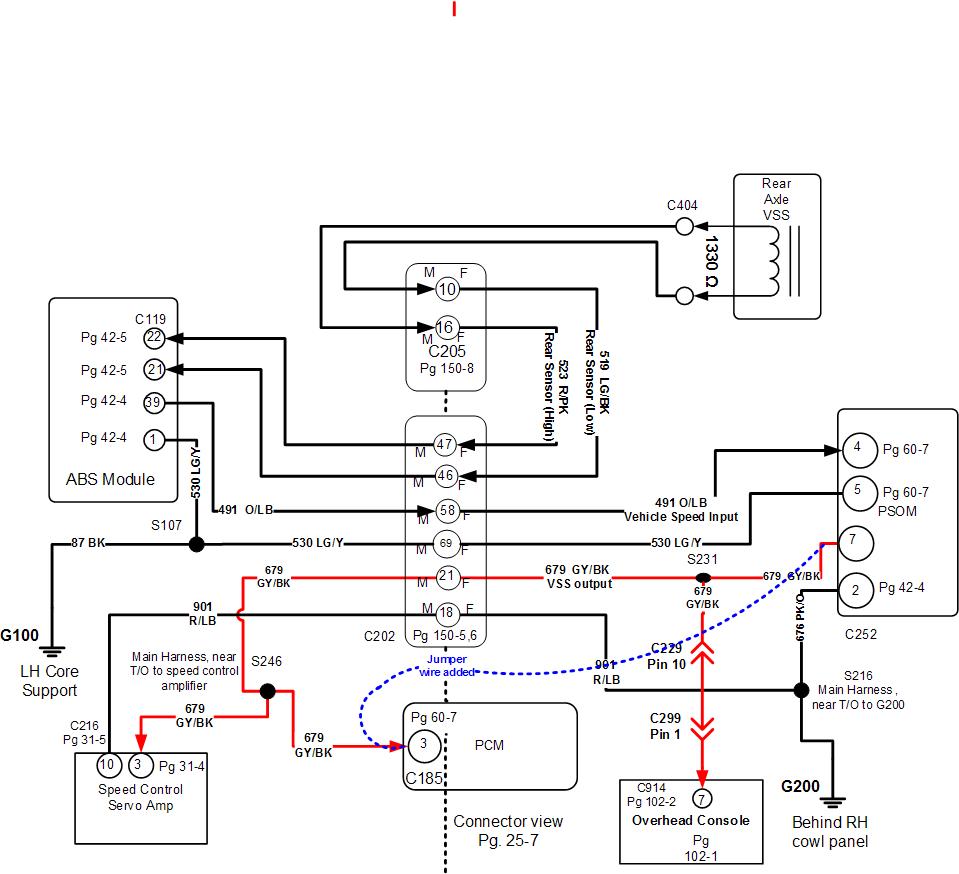

Ford VSS/speed-control wiring schematic showing rear axle VSS (1330 ohm), ABS module, PSOM, speed control servo amplifier and PCM with a jumper wire added on circuit 679 GY/BK VSS output.

AI caption August 2020 · Photo 408 of 413

This hand-annotated wiring schematic traces the Vehicle Speed Sensor (VSS) circuit from the Rear Axle VSS (1330 Ω, connector C404) through the Ford Bronco's electrical system to the PCM. Signal wires 519 LG/BK (Rear Sensor Low) and 523 RPK (Rear Sensor High) run through connector C205 (pins 10 and 16, Pg 150-8) to the ABS Module at C119 (pins 22, 21, 39, 1; Pgs 42-4/42-5). The ABS module outputs circuit 491 O/LB (Vehicle Speed Input) and 530 LG/Y through C202 (pins 58, 69) to the PSOM at C252 (pins 4, 5, 7, 2; Pgs 60-7 and 42-4). The PSOM's VSS output, circuit 679 GY/BK, passes through C202 pin 21 and splices S231 and S246 to the Speed Control Servo Amp (C216 pin 3, Pg 31-4/31-5), PCM (C185 pin 3, Pg 60-7), and Overhead Console (C914 pin 7, via C229 pin 10 and C299 pin 1, Pg 102-1/102-2). A blue dashed "Jumper wire added" annotation shows a modification connecting the 679 GY/BK signal directly to the PCM. Grounds shown are G100 (LH core support, 87 BK) and G200 (behind RH cowl panel, via S216, 901 R/LB and 676 PK/O). EVTM page references are included throughout.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What is the resistance of the rear axle VSS?: The diagram shows the Rear Axle VSS as 1330 Ω, connected via connector C404.
What wire carries the VSS output signal from the PSOM?: Circuit 679 GY/BK is labeled 'VSS output.' It passes through C202 pin 21 and splices S231 and S246 to the Speed Control Servo Amp (C216 pin 3) and the PCM (C185 pin 3).
Which PCM pin receives the vehicle speed signal?: PCM connector C185, pin 3, receives the 679 GY/BK signal; a jumper wire (shown as a blue dashed line) was added to this connection.
What wire colors run between the rear axle sensor and the ABS module?: 519 LG/BK (Rear Sensor Low) and 523 RPK (Rear Sensor High), routed through connector C205 pins 10 and 16.
Where are grounds G100 and G200 located?: G100 is at the LH core support; G200 is behind the RH cowl panel, reached via splice S216 in the main harness near the takeout to G200.
