Hyundai Genesis Coupe 2.0L G4KF MFI Control System Connectors (7) SD313-7
Connector pinout reference chart for an MFI control system showing connector faces, pin numbering and part codes.

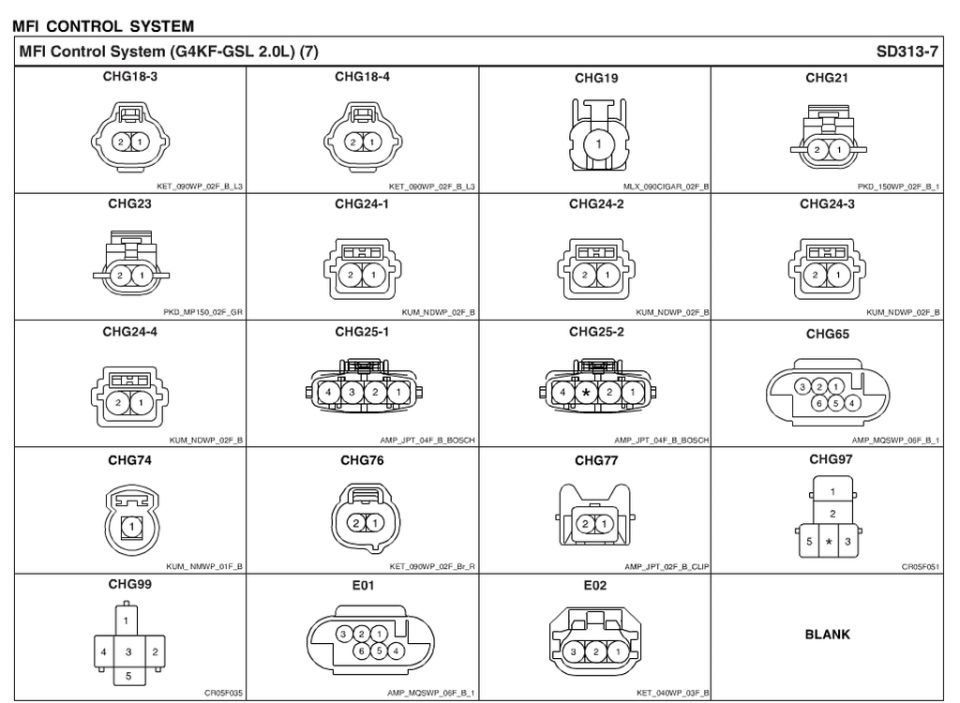

This document is page 7 (SD313-7) of the MFI (Multiport Fuel Injection) Control System connector reference for the G4KF-GSL 2.0L engine, showing connector face views used in the fuel injection wiring diagrams. It presents a grid of 19 connector illustrations plus one blank cell. Each cell shows the connector identifier (CHG18-3, CHG18-4, CHG19, CHG21, CHG23, CHG24-1 through CHG24-4, CHG25-1, CHG25-2, CHG65, CHG74, CHG76, CHG77, CHG97, CHG99, E01, and E02), a drawing of the connector housing with numbered pin cavities, and a connector type/part reference code beneath (such as KET_090WP_02F_B_L3, MLX_090CIGAR_02F_B, PKD_150WP_02F_B_1, KUM_NDWP_02F_B, AMP_JPT_04F_B_BOSCH, AMP_MQSWP_06F_B_1, KET_040WP_03F_B, CR05F051, and CR05F035). Most connectors are 1- or 2-pin; CHG25-1/CHG25-2 are 4-pin, CHG65 and E01 are 6-pin, and CHG97/CHG99 use a 5-cavity layout with blocked positions marked with an asterisk. A reader can use this page to identify connector shapes, pin numbering orientation, and housing types when tracing or repairing the MFI harness on this engine.
Is this accurate? Sign in to help verify it.
Frequently asked questions
- What engine does this MFI connector diagram cover?
- The page is titled 'MFI Control System (G4KF-GSL 2.0L) (7)', so it covers the G4KF-GSL 2.0L engine.
- What connector type is CHG25-1?
- CHG25-1 is a 4-pin connector (pins 4, 3, 2, 1) with reference code AMP_JPT_04F_B_BOSCH.
- How many pins does connector CHG65 have?
- CHG65 is a 6-pin connector (cavities 1-6 in two rows) with code AMP_MQSWP_06F_B_1.
- Which connectors on this page use the KUM_NDWP_02F_B housing?
- CHG24-1, CHG24-2, CHG24-3, and CHG24-4 all use the KUM_NDWP_02F_B 2-pin housing.
- What is the reference code for connector E02?
- E02 is a 3-pin connector with code KET_040WP_03F_B.
