Wiring diagram for a manual transmission starting system without…

‹ ›

Wire DiagramsView all 95

Power Distribution Module wiring diagram with relays, junction box and main MCU

Power Distribution Module wiring diagram with smart key module and start-stop switch

Photo of relay box with ESCL, heated glass, fog lamp and sub-start relay callouts

Data link details wiring diagram SD200-4 with CAN bus connector and color codes

Wiring diagram for vehicle data link connections

Connector pinout diagram labeled M02-D showing numbered terminal cavities

Photo 47 showing interior A-pillar trim with arrow pointing to connector MR01 near steering wheel

Wiring diagram for vehicle starting system

Hyundai/Kia passenger compartment fuse details SD120-1 schematic with fuse amp ratings and circuits

Electronic Stability Control ESC system wiring schematic SD588-2 with ECU, relays and connectors

Wiring diagram for courtesy and trunk lamps in a vehicle.

Diagnostic circuit diagram for Engine Control System, showing battery, relays, and ECM connections.

Connector pinout diagrams for connectors F57 and F58 showing 6-cavity terminal layouts

Head Lamps wiring diagram SD921-1 with junction boxes, multifunction switch and instrument cluster

Wiring diagram for G4KF-GSL 2.0L engine data link connections

95photos in this albumView all

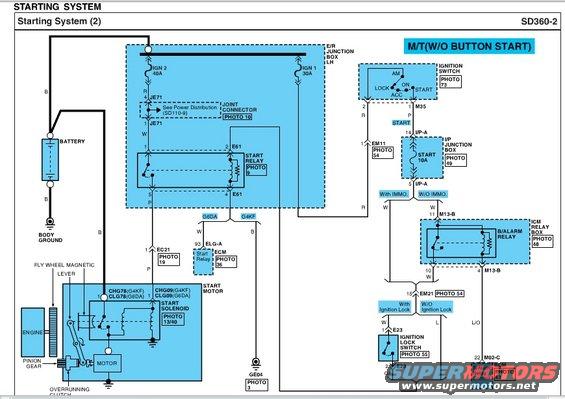

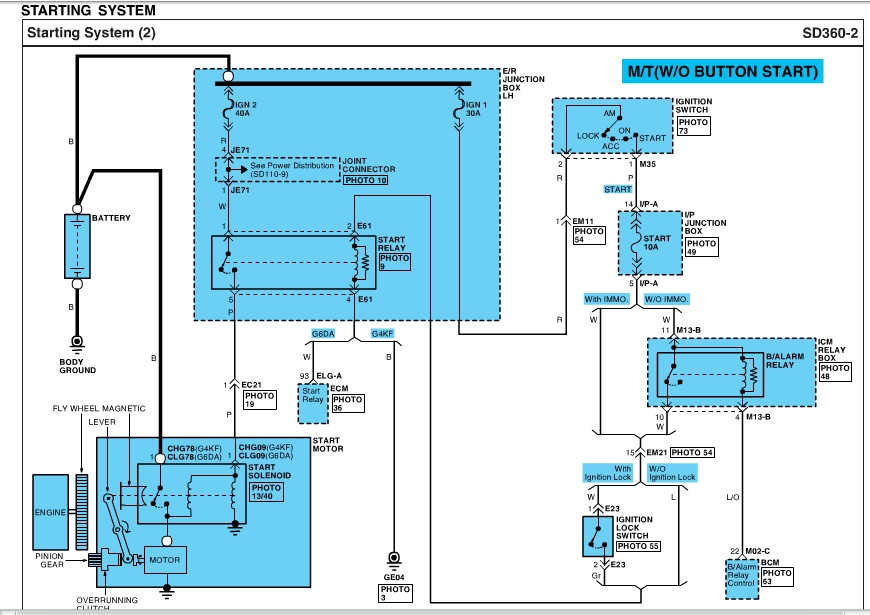

This is a wiring diagram for a starting system, specifically labeled "Starting System (2)" and "M/T (W/O BUTTON START)". It details electrical connections for components like the battery, starter motor, ignition switch, and various relays and junction boxes.
