G4KF-GSL 2.0L data link CAN wiring diagram, SD200-2, with ESC, A…

G4KF-GSL 2.0L data link CAN wiring diagram, SD200-2, with ESC, ABS, ECM and TCM
G4KF-GSL 2.0L data link CAN wiring diagram, SD200-2, with ESC, ABS, ECM and TCMOriginal file
G4KF-GSL 2.0L data link CAN wiring diagram, SD200-2, with ESC, ABS, ECM and TCM

Reference · 2010-2016 Genesis CoupeAll 85 wiring diagrams

2010 Hyundai Genesis Coupe Tail, Parking & License Lamps Wiring Diagram SD928-1 2010 Hyundai Genesis Coupe DRL Wiring Diagram SD958-1 - Daytime Running Lights Data link connector pinouts CHG-K, CHG-T, CLG-ZF, ELG-A, E03, E15, E45, F06, F98, M02-A, M02-C, M03-A G4KF-GSL 2.0L data link CAN wiring diagram, SD200-2, with ESC, ABS, ECM and TCM 2010 Hyundai Genesis Coupe Headlamp Wiring Diagram SD921-1 - Head Lamps (1) 2010 Hyundai Genesis Coupe Tail Lamp Connectors F57 & F58 Pinout Diagram Daytime running lights (DRL) connector views E11, E12, E57, M02-A, M02-B, M11 and M48-L, SD958-2 Hyundai Genesis Coupe BK2 Tail, Parking & License Lamp Wiring Diagram SD928-2 85wiring diagrams2010-2016 Hyundai Genesis Coupe More reference 2010 Hyundai Genesis Coupe PDM M51-A/M51-B & Rear Parking Buzzer Location PhotoManual page Hyundai 2.0L Timing Chain Tensioner Access Hole & Valve Clearance - EM-10Service procedure 2010 Hyundai Genesis Coupe Smart Key System Connector Pinouts (SD815-4)Schematic Hyundai Genesis Coupe BK Power Steering Pump Disassembly - Steering ST-20Exploded parts Hyundai Genesis Coupe Passenger Compartment Fuse Details Wiring Diagram SD120-1Fuse chart DOT Brake Pad Edge Codes Explained - EE FE FF GG HH Friction Ratings ChartSpec plate 2010 Hyundai Genesis Coupe Steering System Specs & Torque Values (ST-2)Torque spec 2010 Hyundai Genesis 3.8L V6 Throttle Body Coolant Hose Routing DiagramVacuum routing

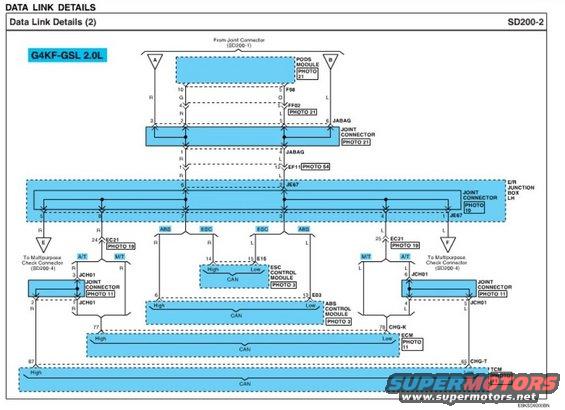

Data Link Details (2), SD200-2, G4KF-GSL 2.0L: CAN high/low wiring through joint connectors to ESC, ABS control module, ECM and TCM.

Part of 2010-2016 Hyundai Genesis Coupe Wiring Diagrams
