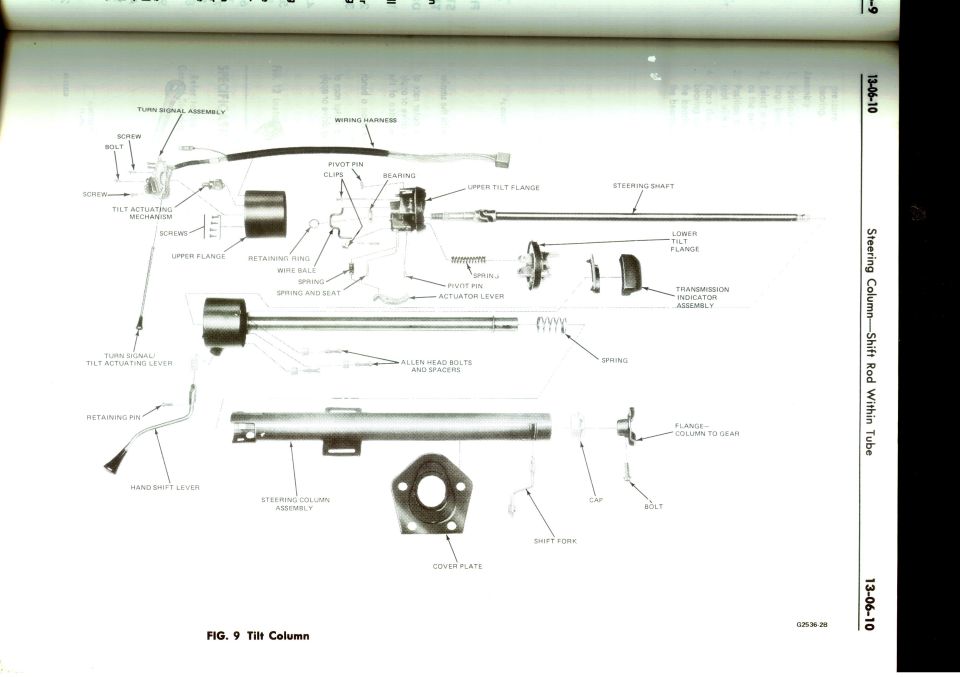

1979 Ford Bronco Tilt Steering Column Exploded Diagram - Fig. 9 (13-06-10)

Ford tilt steering column exploded parts diagram 13-06 Fig. 9 with actuator and shift fork
Ford tilt steering column exploded parts diagram 13-06 Fig. 9 with actuator and shift forkOriginal file
Ford tilt steering column exploded parts diagram 13-06 Fig. 9 with actuator and shift fork

Reference · 1978-1979 BroncoAll 79 exploded parts diagrams

Ford Bronco Tailgate Latch Release & Lock Control Exploded Diagram - Fig. 4 Ford Bronco Tailgate Installation Diagram - Exploded Parts & Part Numbers Ford Steering Column Installation Diagram & Disassembly - E-100-E-350 (13-06-7) 1979 Ford Bronco Tilt Steering Column Exploded Diagram - Fig. 9 (13-06-10) Ford Tilt Steering Column Disassembly & Assembly - Shift Rod Within Tube 13-06-9 Ford Bronco Steering Column Exploded Diagram & Disassembly - Shop Manual 13-06-8 Ford Tilt Steering Column Service - Wire Bale, Locking Lever & Pivot Pin 13-06-11 1979 Ford Bronco Tilt Steering Column Exploded Diagram - Fig. 9, Page 13-06-10 1978-79 Ford Bronco/Truck Rear Slider & Fixed Glass Exploded Parts Diagram 1977-79 Ford F100/F150/F250 & 1978-79 Bronco Upper Race Track Molding Parts 1977-79 Ford F100 F150 F250 & 1978-79 Bronco Lower Race Track Molding Catalog 1966-72 Ford F100/F250/F350 4x4 Engine Mounts & Insulators Diagram 240 300 352 360 79exploded parts diagrams1978-1979 Ford Bronco More reference 1979 Ford Bronco Radio Connector Wiring Diagram C-530 & C-532 PinoutsWiring diagram '79 Bronco color and trim selections chart with trim combination matrix and Tu-Tone color availability tableBrochure Ford F-Series SuperCab Dimensions & Curb Weights - F-100 F-150 F-250 F-350 SpecsSpec plate Ford Bronco F-100-F-350 Cruise Control Tests - Servo, Amplifier & Road Test 37-01-8Manual page Ford Bronco & F100-F350 Front Door Window Glass Removal - Shop Manual 42-04-3Service procedure Ford Wiring Circuit Color Codes 835-907 - Wire Descriptions & Colors ChartSchematic 1979 Bronco general specifications page with dimensioned body drawings, seat room and powertrain tableBlueprint 1979 Ford Bronco Fuse Panel Diagram - Fuse Positions F1-F12 & Amp RatingsFuse chart 1979 Ford Bronco & F100-F350 Vacuum Distribution Diagram - Hose RoutingVacuum routing Engine and Engine Overhaul page 3-16 with piston and ring specs and torque specifications tablesTorque spec

Ford steering column service (Fig.9): full exploded view of a tilt column showing turn-signal assembly, upper tilt flange, pivot pins, tilt actuator lever, Allen-head bolts/spacers, shift fork and column-to-gear flange.

Part of 1978-1979 Ford Bronco Exploded Parts Diagrams

AI caption · Photo 13 of 104

This document is page 13-06-10 from a Ford factory shop manual section titled "Steering Column: Shift Rod Within Tube." The page consists entirely of FIG. 9, "Tilt Column," a full-page exploded parts diagram (illustration reference G2536-2B) showing the complete disassembly of a tilt steering column with a column-mounted (hand) shift lever. Labeled components include the turn signal assembly with its screws and bolt, the tilt actuating mechanism, upper flange, wiring harness, pivot pins, clips, bearing, upper and lower tilt flanges, steering shaft, retaining ring, wire bale, multiple springs and a spring-and-seat, actuator lever, transmission indicator assembly, turn signal/tilt actuating lever, Allen head bolts and spacers, retaining pin, hand shift lever, steering column assembly, column-to-gear flange, cap, bolt, shift fork, and cover plate. A reader can use this figure to identify every component of the tilt column, understand the order and orientation in which the parts assemble, and as a visual reference during teardown or rebuild of the tilt steering column. It is one page of a multi-page set (13-06-07 through 13-06-11) covering steering column service.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What does Fig. 9 on page 13-06-10 show?
It is an exploded parts diagram of the tilt steering column for a column with the shift rod within the tube, showing all components from the turn signal assembly down to the column-to-gear flange.
What parts make up the tilt mechanism in this diagram?
The tilt actuating mechanism, upper tilt flange, lower tilt flange, pivot pins, clips, bearing, springs, spring and seat, actuator lever, and the turn signal/tilt actuating lever.
What fasteners are called out in the tilt column diagram?
Screws and a bolt for the turn signal assembly, screws for the upper flange area, Allen head bolts and spacers, a retaining pin, a retaining ring, and a bolt at the column-to-gear flange with a cap.
Does this diagram cover a column shift column?
Yes: it includes a hand shift lever, shift fork, transmission indicator assembly, and cover plate, indicating a column-shifted tilt steering column.
What is the illustration reference number for this figure?
G2536-2B.
