What is the wheelbase of the F-150 Regular Cab Styleside?

Per the table, the F-150 Regular Cab wheelbase is 116.8 inches for the short box and 133.0 inches for the long box (both 4x2 and 4x4); F-250 and F-350 Regular Cabs are 133.0 inches.

How long is the F-Series Styleside pickup bed?

Cargo body length at the floor (L505) is 82.1 inches for the nominal 6¾-foot box and 98.3 inches for the 8-foot box, with overall body lengths of 85.5 and 101.7 inches respectively.

What is the cargo volume of the F-Series Styleside box?

V5# cargo volume is 62.8 cu. ft. for the 6¾' box and 75.5 cu. ft. for the 8' box (the figure does not include allowance for wheelhouses).

What are the approach and departure angles for an F-350 4x4?

The F-350 4x4 shows an angle of approach (H106) of 42°, angle of departure (H107) of 29°, and ramp breakover angle (H147) of 24°.

How wide is the cargo box between the wheelhouses?

Cargo width at the wheelhouse (W201) is 50.8 inches on all Regular, Super and Crew Cab Styleside boxes; maximum inside box width (W502) is 70.0 inches.

Home/ Registry/ Ford/ Bronco/ 1980-1986/ “That dirty old truck”/ Photo supermotors.net/registry/media/1163830

Ford F-150/250/350 Dimensional Data - Body, Pickup Box & Cab Dimensions

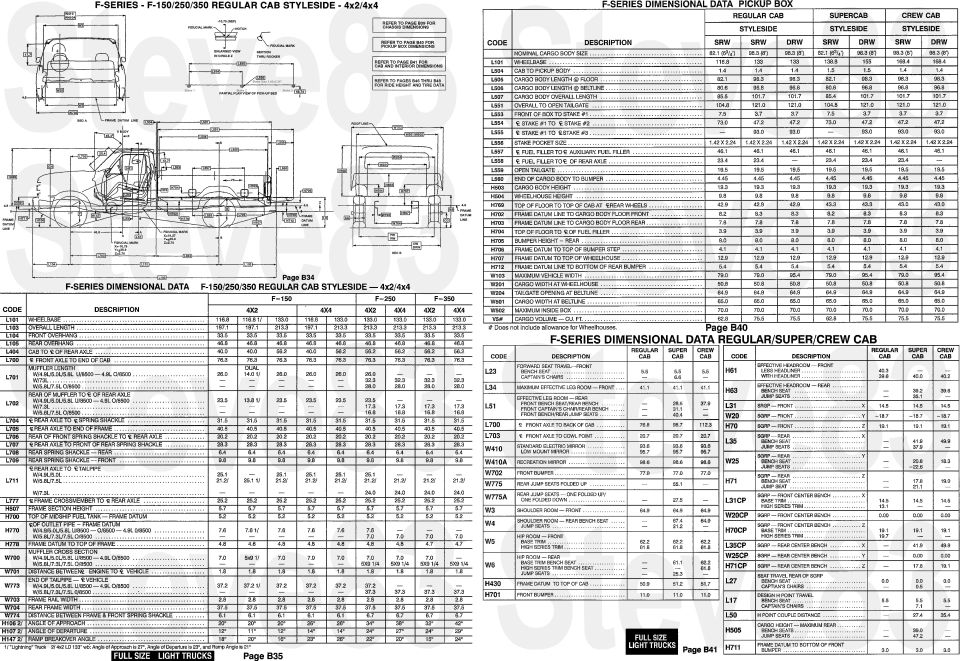

Ford F-Series dimensional data manual page with spec tables and dimensioned cab/box drawings

‹ ›

Reference · 1980-1986 BroncoAll 28 manual pages

1996 Ford Bronco/F-Series Starting System - Section 03-06 Contents

Ford F-150/250/350 Dimensional Data - Body, Pickup Box & Cab Dimensions

TSB 89-24-04 IAC diode air by-pass valve drawing with 1983-1988 EFI engine application charts

Ford 3G Alternator Output Curves - 95/130 Amp, Leece-Neville 165A, Mitsubishi 215A

TP sensor graph of signal voltage vs throttle shaft rotation with ±3% tolerance band

1994-1998 Ford truck, van and car refrigerant oil capacity chart in ounces and cc's by model and year

ZFI S5-47 and S5-42 transmission part number progression chart by application and year

Ford 300 Inline Six Manifold Removal/Install & Bolt Torque Sequence - Manual Pg 71

Ford 300 Inline Six Engine Exploded View & Flywheel Removal - Manual Page 73

Ford Bronco Carburetor Choke Cap & Fuel Line Replacement - Manual Page 156

Ford 7200 VV Variable Venturi Carburetor Diagram - Component Callouts (Manual Pg 150)

YFA 1-V Carburetor Diagrams - Feedback & Non-Feedback, Inline Six (Ford Bronco)

28manual pages1980-1986 Ford Bronco More reference

Wiring diagram

Ford accessories catalog page with cellular mobile telephone and 40-channel CB emergency radio

Brochure

Ford door certification label dated 11/95 with GVWR 6300LB, P235/75R15XL tires and VIN 1FMEU15H4TLA76236

Spec plate

1992-96 Ford F-150/F-250/F-350 2WD Front Sway Bar Diagram & Part Numbers

Exploded parts

1992 Ford E4OD Transmission Fault Code Diagnosis Chart - DTC List & Symptoms

Service procedure

Schematic

Trim panel hole layout photos for positions A, B and C with tape measure readings from the body line

Blueprint

Ford 1996 5.8L vehicle information decal with vacuum hose routing diagram and ASF-32P plug

Vacuum routing

Torque spec

'95 F150 fuse and relay chart with fuse panel layout, ATC and Maxi fuse amp tables

Fuse chart

F150/F250/F350 Standard Cab Fleetside 2WD/4WD Dimensional Data from the 1994 Body Builders' Layout Book
IF THE IMAGE IS TOO SMALL, click it.

See also:

Part of 1980-1986 Ford Bronco Manual Pages

Owner caption January 2021 · Photo 5819 of 6546

This document is a set of Ford factory body-engineering dimensional data pages (Pages B34, B35, B40 and B41 from a 'Full Size Light Trucks' reference) covering the F-Series F-150/250/350 Regular Cab Styleside in 4x2 and 4x4 configurations, plus SuperCab and Crew Cab pickup box and interior data. Page B34 shows annotated line drawings (front, side and rear views) with dimension codes and fiducial mark coordinates. Page B35 tabulates chassis/exterior dimensions by model and drivetrain, wheelbase (116.8/133.0 in), overall length (197.1/213.3 in), overhangs, muffler and tailpipe locations by engine (4.9L, 5.0L, 5.8L, 7.3L, 7.5L), frame widths, and approach/departure/ramp breakover angles, with footnotes for the 'Lightning' truck. Page B40 lists pickup box dimensions for Regular, Super and Crew Cab Styleside SRW/DRW bodies: cargo body lengths (82.1/98.3 in nominal 6¾'/8' boxes), tailgate opening, stake pocket size (1.42 x 2.24), cargo widths, heights, and cargo volume (62.8 or 75.5 cu ft). Page B41 covers cab interior dimensions, leg room, headroom, shoulder and hip room, seat travel, SGRP seating reference points, and mirror widths, for Regular, Super and Crew Cabs. A reader can determine nearly any factory body, box, or interior dimension for these trucks.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What is the wheelbase of the F-150 Regular Cab Styleside?: Per the table, the F-150 Regular Cab wheelbase is 116.8 inches for the short box and 133.0 inches for the long box (both 4x2 and 4x4); F-250 and F-350 Regular Cabs are 133.0 inches.
How long is the F-Series Styleside pickup bed?: Cargo body length at the floor (L505) is 82.1 inches for the nominal 6¾-foot box and 98.3 inches for the 8-foot box, with overall body lengths of 85.5 and 101.7 inches respectively.
What is the cargo volume of the F-Series Styleside box?: V5# cargo volume is 62.8 cu. ft. for the 6¾' box and 75.5 cu. ft. for the 8' box (the figure does not include allowance for wheelhouses).
What are the approach and departure angles for an F-350 4x4?: The F-350 4x4 shows an angle of approach (H106) of 42°, angle of departure (H107) of 29°, and ramp breakover angle (H147) of 24°.
How wide is the cargo box between the wheelhouses?: Cargo width at the wheelhouse (W201) is 50.8 inches on all Regular, Super and Crew Cab Styleside boxes; maximum inside box width (W502) is 70.0 inches.
