E4OD Pump Assembly (Exploded) IF THE IMAGE IS TOO SMALL, click…

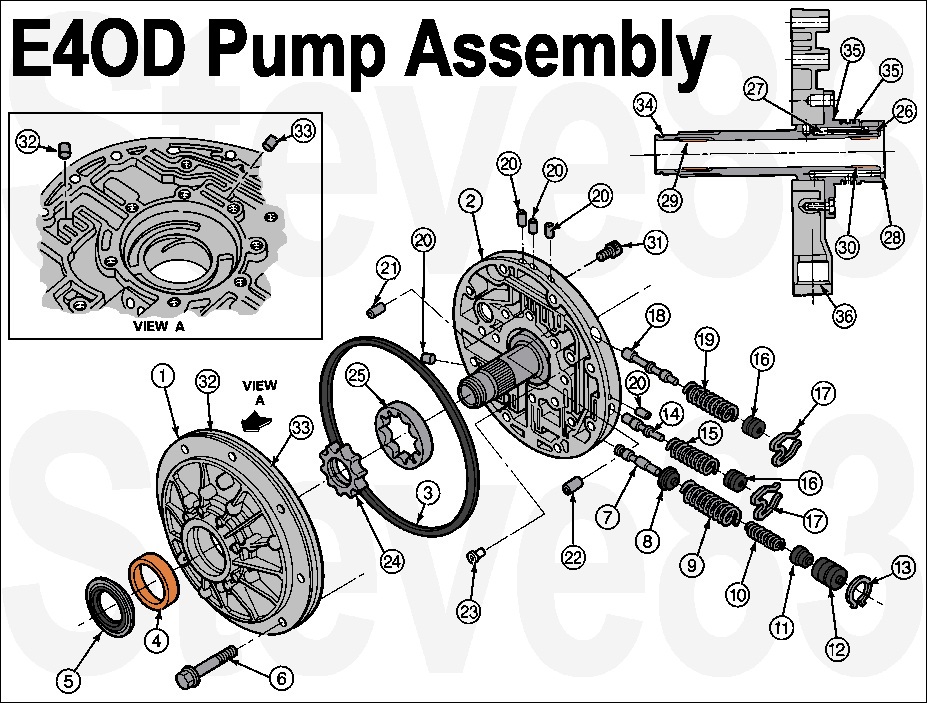

E4OD Pump Assembly (Exploded)
IF THE IMAGE IS TOO SMALL, click it.

1 - Pump Body (Part of 7A103)
2 - Body and Support Assembly (Part of 7A103)
3 - Front Oil Pump Seal, O-Ring - 7A248
4 - Front Oil Pump Bushing (Part of 7A103)
5 - Front Oil Pump Seal, Small - 7A248
6 - Bolt and Washer Assembly (9 Req'd) - N805260-S
7 - Main Regulator Valve (Part of 7A103)
8 - Spring Retainer (Part of 7A103)
9 - Outer Spring (Part of 7A103)
10 - Inner Spring (Part of 7A103)
11 - Main Regulator Booster Valve (Part of 7A103)
12 - Main Regulator Booster Sleeve (Part of 7A103)
13 - Retainer (Part of 7A103)
14 - Converter Regulator Valve (Part of 7A103)
15 - Spring (Part of 7A103)
16 - Plug (Part of 7A103)
17 - Clip (Part of 7A103)
18 - Converter Clutch Control Valve (Part of 7A103)
19 - Spring (Part of 7A103)
20 - Solid Cup Plug (Part of 7A103)
21 - Orificed Cup Plug (Part of 7A103)
22 - Orificed Cup Plug (Part of 7A103)
23 - Air Bleed Check Valve Assembly (Part of 7A103)
24 - Inner Gerotor Gear (Part of 7A103)
25 - Outer Gerotor Gear (Part of 7A103)
26 - Orifice Cup Plug - N805802
27 - Valve Assembly (Part of 7A103)
28 - Solid Cup Plug (Part of 7A103)
29 - Bushing, Front - 7B261
30 - Rear Input Shaft Bushing (Part of 7A103)
31 - Bolt M8 (11 Req'd) (Part of 7A103)
32 - Orificed Cup Plug (Part of 7A103)
33 - Orificed Cup Plug (Part of 7A103)
34 - Seal Conv. Clutch - 7L323
35 - Seal Coast Clutch - 7G402
36 - Inlet Tube Bore (Part of 7A103)
