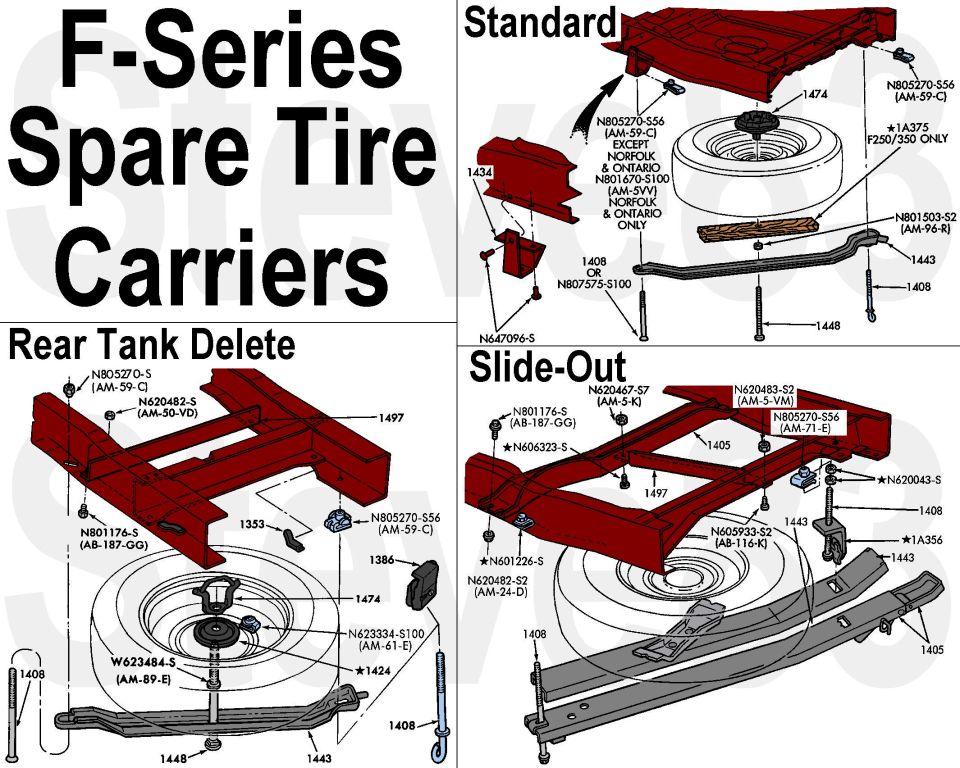

Diagram of Ford F-Series spare tire carriers standard, tank dele…
Pickup Spare Tire Carriers
IF THE IMAGE IS TOO SMALL, click it.
.
.
.
.
.
Tray F5TZ1443AA
Mount bolt E4TZ1408D
J-bolt E2TZ1408C
The center hold-down bolt F2TZ1448A/EOTZ1448C looks like a carriage bolt, but has a special diamond shoulder instead of square. Very few trucks have the drop bracket 1434 in the STANDARD view; most simply have a long 1408 bolt.
Speed nut N801503S2(AM96R)
Knob E9TZ1474A
The wood spacer 1A375 is only used on heavy trucks with the spare-tire-delete option.
