What axle does this diagram cover?

The Dana 44-IFS Twin Traction Beam front drive axle for Ford Bronco and F-150 4x4 with automatic hublocks.

What is the Ford base part number for the Dana 44 IFS camber adjuster?

Item 46, part number 3B404, is the camber adjuster.

What are the part numbers for the steering knuckle?

Item 69: 3130 for the right-hand knuckle and 3131 for the left-hand knuckle.

What parts make up the spindle bearing and locknut hardware?

Spindle 3105 (item 57), bearing 3123 (item 58), seal 1175 (item 59), inner locknut 1195 (item 75), retainer 1196 (item 76), and outer locknut 1197 (item 77).

What part numbers are listed for the front axle shaft assemblies?

Item 49 lists shaft assembly 3219 for the right-hand side and 3220 for the left-hand side; item 1 also shows 3219 as the RH shaft.

Home/ Registry/ Ford/ Bronco/ 1980-1986/ “That dirty old truck”/ Photo supermotors.net/registry/media/1172431

Dana 44 IFS TTB Front Axle Exploded Diagram - Ford Bronco & F-150 4x4 Parts

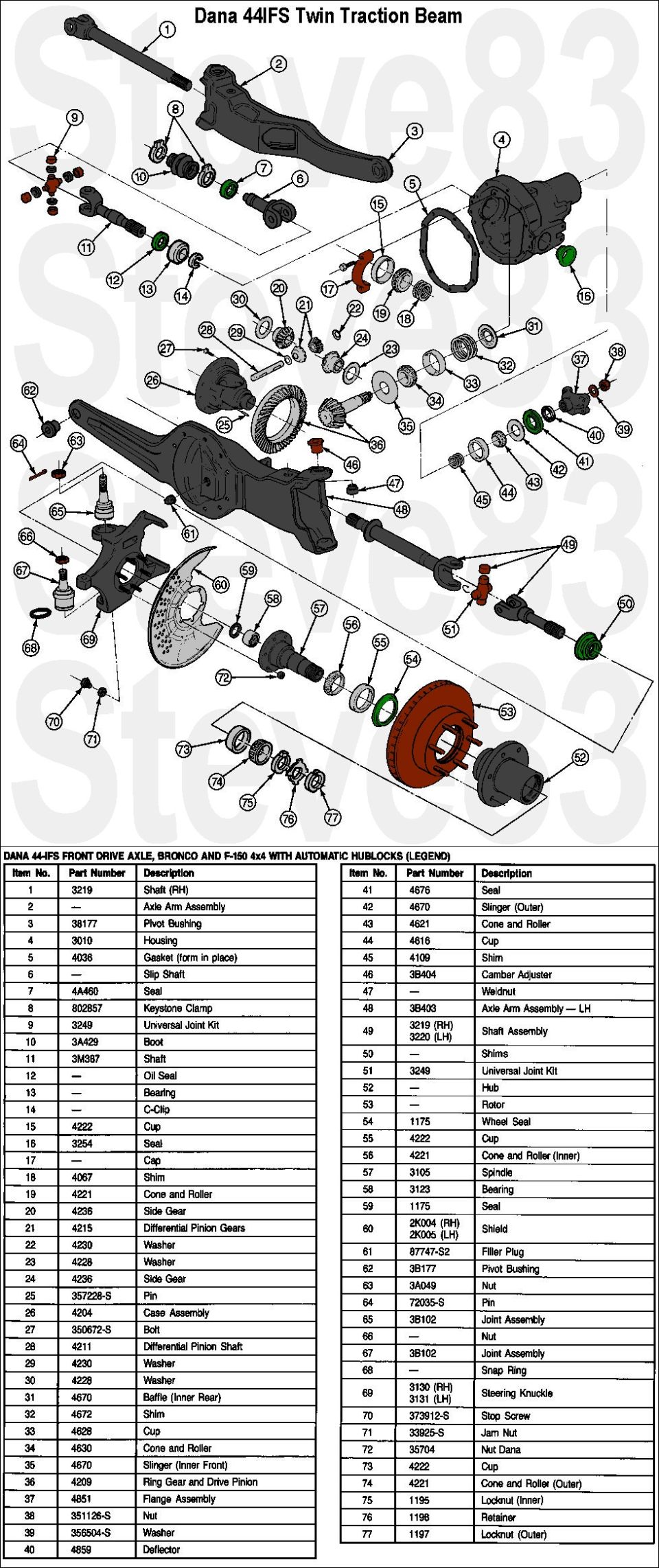

Dana 44 IFS Twin Traction Beam exploded parts diagram with numbered components and parts list

‹ ›

Reference · 1980-1986 BroncoAll 61 exploded parts diagrams

Ford 4.9L Intake Manifold Installation Diagram - Parts & Torque Specs (TSB 87-08-16)

1978-1996 Ford Bronco Tailgate Internals Diagram - Window Regulator & Parts

1994-96 Ford Bronco Tailgate Carpet Panel Diagram - Pushpins & Access Cover

Dana 44 IFS TTB Front Axle Exploded Diagram - Ford Bronco & F-150 4x4 Parts

1994-1997 Ford F-Series/Bronco RKE, Anti-Theft & Amp Module Mounting Diagram

Ford 8.8" Semi-Floating Rear Axle Exploded Diagram: Parts & Part Numbers

Dana 50 IFS Front Axle Exploded Parts Diagram - Ford Part Numbers

Ford FS-6 A/C Compressor Exploded Diagram - Clutch, Front & Rear Head Parts

61exploded parts diagrams1980-1986 Ford Bronco More reference

Wiring diagram

Ford accessories catalog page with cellular mobile telephone and 40-channel CB emergency radio

Brochure

Ford door certification label dated 11/95 with GVWR 6300LB, P235/75R15XL tires and VIN 1FMEU15H4TLA76236

Spec plate

1992 Ford E4OD Transmission Fault Code Diagnosis Chart - DTC List & Symptoms

Service procedure

Schematic

1996 Ford Bronco/F-Series Starting System - Section 03-06 Contents

Manual page

Trim panel hole layout photos for positions A, B and C with tape measure readings from the body line

Blueprint

Ford 1996 5.8L vehicle information decal with vacuum hose routing diagram and ASF-32P plug

Vacuum routing

Torque spec

'95 F150 fuse and relay chart with fuse panel layout, ATC and Maxi fuse amp tables

Fuse chart

Dana 44IFS-HD Exploded (Twin Traction Beam, TTB)
IF THE IMAGE IS TOO SMALL, click it.

See also:
What's the DIFF?
Dana Axle Expert
Dana 44IFS p.121
. . . . . . .

Upper BJs: Ford F6TZ3V049AA/4C3Z3049DA, Motorcraft MCS10339, Spicer 2001257
Lower BJs: Ford F6TZ3V050CB, Motorcraft MCS10253, Spicer 2001258, TRW JBJ7011
Camber Cam: ACDelco 49K6526, McQuay-Norris AA3951, Moog K80108

'92-96 spindle studs (5 req'd per spindle) 36326-1 (3/8-24 x 1.312)
'92-96 spindle stud nuts (5 req'd per spindle) 35704 (3/8-24)

The procedure to install the steering knuckle is:
1) Assemble knuckle to axle arm assembly. Install camber adjuster on the stud of the front suspension upper ball joint with the arrow pointing outboard for "positive" camber, pointed inboard for "negative" camber.
2) Install new nut on bottom socket finger-tight. Install and tighten nut on top socket finger-tight. Tighten bottom nut to 47 N-m (35 ft-lb).
3) Tighten top nut to 136 N-m (100 ft-lb), then advance nut until castellation aligns with cotter pin hole. Install cotter pin. NOTE: Do not loosen top nut to install cotter pin.
4) Retighten bottom nut to 150 N-m (111 ft-lb).

Ford 8.8" axle uses 10 lug studs D6AZ-1107-A ('83-00)
Dana 44IFS uses 10 lug studs D6TZ-1107-A ('83-96)
Ford TIB axle uses 10 lug studs F4UZ-1107-A ('94-96)

D44IFS Bills of Material (Dana Part Numbers):

610062-1 Standard 3.00 80 1/2-ton
610062-2 Standard 3.00 80 1/2-ton
610062-3 Standard 3.50 80 1/2-ton
610062-4 Standard 3.50 80 1/2-ton
610062-5 Trac Lok 3.50 80 1/2-ton
610062-6 Trac Lok 3.50 80 1/2-ton
610062-7 Standard 3.00 80 1/2-ton
610062-8 Standard 3.00 80 1/2-ton
610062-9 Standard 3.50 80 1/2-ton
610062-10 Standard 3.50 80 1/2-ton
610062-11 Trac Lok 3.50 80 1/2-ton
610062-12 Trac Lok 3.50 80 1/2-ton
610062-13 Standard 3.00 80 1/2-ton
610062-14 Standard 3.00 80 1/2-ton
610062-15 Standard 3.50 80 1/2-ton
610062-16 Standard 3.50 80 1/2-ton
610062-17 Trac Lok 3.50 80 1/2-ton
610062-18 Trac Lok 3.50 80 1/2-ton
610062-19 Standard 3.00 80 1/2-ton
610063-1 Standard 3.54 80 3/4-ton
610063-2 Standard 3.54 80 3/4-ton
610063-3 Trac Lok 3.54 80 3/4-ton
610063-4 Trac Lok 3.54 80 3/4-ton
610063-5 Standard 4.09 80 3/4-ton
610063-6 Standard 3.54 80 3/4-ton
610146-1 Standard 3.00 81 3/4 & 1-ton
610146-2 Trac Lok 3.00 81 3/4 & 1-ton
610146-3 Standard 3.54 81 3/4 & 1-ton
610146-4 Trac Lok 3.54 81 3/4 & 1-ton
610146-5 Standard 3.00 81 3/4 & 1-ton
610146-6 Standard 3.54 81 3/4 & 1-ton
610146-7 Standard 3.54 81 3/4 & 1-ton
610146-8 Standard 4.09 81 3/4 & 1-ton
610146-9 Trac Lok 3.54 81 3/4 & 1-ton
610185-1 Standard 3.00 81 & 82 1/2-ton
610185-2 Standard 3.00 81 & 82 1/2-ton
610185-3 Standard 3.50 81 & 82 1/2-ton
610185-4 Standard 3.50 81 & 82 1/2-ton
610185-5 Trac Lok 3.50 81 & 82 1/2-ton
610185-6 Trac Lok 3.50 81 & 82 1/2-ton
610185-7 Standard 3.50 81 & 82 1/2-ton
610185-8 Standard 3.00 81 & 82 1/2-ton
610185-9 Standard 3.00 81 & 82 1/2-ton
610185-10 Standard 3.50 81 & 82 1/2-ton
610185-11 Standard 3.50 81 & 82 1/2-ton
610185-12 Trac Lok 3.50 81 & 82 1/2-ton
610185-13 Standard 3.50 81 & 82 1/2-ton
610185-14 Standard 3.07 81 & 82 1/2-ton
610185-15 Standard 3.07 81 & 82 1/2-ton
610185-16 Trac Lok 3.54 81 & 82 1/2-ton
610185-17 Standard 3.54 81 & 82 1/2-ton
610185-18 Standard 3.54 81 & 82 1/2-ton
610166-1 Standard 3.50 81.5 & 82 F150 SnowPlow
610166-2 Standard 3.50 81.5 & 82 F150 SnowPlow
610166-3 Trac Lok 3.00 81.5 & 82 F150 SnowPlow
610168-1 Standard 3.00 83 1/2-ton
610168-2 Standard 3.50 83 1/2-ton
610168-3 Trac Lok 3.50 83 1/2-ton
610168-4 Standard 3.00 83 1/2-ton
610168-5 Standard 3.00 83 1/2-ton
610168-6 Standard 3.50 83 1/2-ton
610168-7 Standard 3.50 83 1/2-ton
610168-8 Trac Lok 3.50 83 1/2-ton
610168-9 Standard 3.07 83 1/2-ton
610168-10 Standard 3.07 83 1/2-ton
610168-11 Trac Lok 3.54 83 1/2-ton
610168-12 Standard 3.54 83 1/2-ton
610168-13 Standard 3.54 83 1/2-ton
610167-2 Standard 3.50 83 F150 SnowPlow
610167-4 Standard 3.54 83 F150 SnowPlow
610169-1 Standard 3.00 83 3/4 & 1-ton
610169-2 Standard 3.54 83 3/4 & 1-ton
610169-3 Standard 3.00 83 3/4 & 1-ton
610169-4 Standard 3.54 83 3/4 & 1-ton
610169-5 Standard 3.54 83 3/4 & 1-ton
610169-6 Standard 4.09 83 3/4 & 1-ton
610169-7 Trac Lok 3.54 83 3/4 & 1-ton
610178-1 Standard 3.07 84 1/2-ton
610178-2 Standard 3.07 84 1/2-ton
610178-3 Trac Lok 3.54 84 1/2-ton
610178-4 Standard 3.54 84 1/2-ton
610178-5 Standard 3.54 84 1/2-ton
610178-9 Standard 3.07 84 1/2-ton
610178-10 Standard 3.07 84 1/2-ton
610178-11 Trac Lok 3.54 84 1/2-ton
610178-12 Trac Lok 3.54 84 1/2-ton
610178-13 Trac Lok 3.54 84 1/2-ton
610177-1 Standard 3.54 84 F150 SnowPlow
610177-4 Standard 3.54 84 F150 SnowPlow
610179-1 Standard 3.54 84 3/4 & 1-ton
610179-2 Standard 3.54 84 3/4 & 1-ton
610179-3 Standard 3.54 84 3/4 & 1-ton
610179-4 Standard 3.54 84 3/4 & 1-ton
610179-5 Standard 3.54 84 3/4 & 1-ton
610179-6 Standard 4.09 84 3/4 & 1-ton
610179-7 Trac Lok 3.54 84 3/4 & 1-ton
610179-8 Trac Lok 3.54 84 3/4 & 1-ton
610198-1 Standard 3.07 84.5 & 85 1/2-ton
610198-2 Standard 3.07 84.5 & 85 1/2-ton
610198-3 Trac Lok 3.54 84.5 & 85 1/2-ton
610198-4 Standard 3.54 84.5 & 85 1/2-ton
610198-5 Standard 3.54 84.5 & 85 1/2-ton
610198-9 Standard 3.07 84.5 & 85 1/2-ton
610198-10 Standard 3.07 84.5 & 85 1/2-ton
610198-11 Trac Lok 3.54 84.5 & 85 1/2-ton
610198-12 Standard 3.54 84.5 & 85 1/2-ton
610198-13 Standard 3.54 84.5 & 85 1/2-ton
610198-14 Standard 3.50 84.5 & 85 1/2-ton
610198-15 Standard 3.50 84.5 & 85 1/2-ton
610198-16 Trac Lok 3.50 84.5 & 85 1/2-ton
610198-17 Standard 4.09 84.5 & 85 1/2-ton
610198-18 Trac Lok 4.09 84.5 & 85 1/2-ton
610197-1 Standard 3.54 84.5 & 85 F150 SnowPlow
610197-4 Standard 3.54 84.5 & 85 F150 SnowPlow
610197-5 Standard 3.50 84.5 & 85 F150 SnowPlow
610199-1 Standard 3.54 84.5 & 85 3/4-ton
610199-2 Standard 3.54 84.5 & 85 3/4-ton
610199-3 Standard 3.54 84.5 & 85 3/4-ton
610199-4 Standard 3.54 84.5 & 85 3/4-ton
610199-5 Standard 3.54 84.5 & 85 3/4-ton
610199-6 Standard 4.09 84.5 & 85 3/4-ton
610199-7 Trac Lok 3.54 84.5 & 85 3/4-ton
610199-8 Standard 4.09 84.5 & 85 3/4-ton
610199-9 Trac Lok 4.09 84.5 & 85 3/4-ton
610199-10 Trac Lok 4.09 84.5 & 85 3/4-ton
610229-1 Standard 3.54 85 3/4-ton
610229-2 Standard 3.54 85 3/4-ton
610229-3 Standard 3.54 85 3/4-ton
610229-4 Trac Lok 3.54 85 3/4-ton
610229-5 Standard 4.09 85 3/4-ton
610229-6 Trac Lok 4.09 85 3/4-ton
610231-1 Standard 3.54 85 3/4 & 1-ton
610231-2 Standard 3.54 85 3/4 & 1-ton
610231-3 Standard 4.09 85 3/4 & 1-ton
610231-4 Trac Lok 3.54 85 3/4 & 1-ton
610231-5 Standard 4.09 85 3/4 & 1-ton
610231-6 Trac Lok 4.09 85 3/4 & 1-ton
610241-1 Standard 3.07 85.5 1/2-ton
610241-2 Trac Lok 3.54 85.5 1/2-ton
610241-3 Standard 3.54 85.5 1/2-ton
610241-4 Standard 3.50 85.5 1/2-ton
610241-5 Trac Lok 3.50 85.5 1/2-ton
610241-6 Standard 4.09 85.5 1/2-ton
610241-7 Trac Lok 4.09 85.5 1/2-ton
610242-1 Standard 3.54 85.5 F150 SnowPlow
610242-2 Standard 3.50 85.5 F150 SnowPlow
610243-1 Standard 3.54 88.5 3/4-ton
610243-2 Standard 3.54 88.5 3/4-ton
610243-3 Standard 4.09 88.5 3/4-ton
610243-4 Trac Lok 3.54 88.5 3/4-ton
610243-5 Standard 4.09 88.5 3/4-ton
610243-6 Trac Lok 4.09 88.5 3/4-ton
610261-1 Standard 3.07 86 1/2-ton
610261-2 Standard 3.54 86 1/2-ton
610261-3 Standard 3.50 86 1/2-ton
610262-1 Standard 3.07 86 1/2-ton
610262-2 Trac Lok 3.54 86 1/2-ton
610262-3 Standard 3.54 86 1/2-ton
610262-4 Standard 3.50 86 1/2-ton
610262-5 Trac Lok 3.50 86 1/2-ton
610262-6 Standard 4.09 86 1/2-ton
610262-7 Trac Lok 4.09 86 1/2-ton
610263-1 Standard 3.54 86 F150 SnowPlow
610263-2 Standard 3.50 86 F150 SnowPlow
610264-1 Standard 3.54 86 & 87 3/4-ton
610264-2 Standard 3.54 86 & 87 3/4-ton
610264-3 Standard 4.09 86 & 87 3/4-ton
610264-4 Trac Lok 3.54 86 & 87 3/4-ton
610264-5 Standard 4.09 86 & 87 3/4-ton
610264-6 Trac Lok 4.09 86 & 87 3/4-ton
610267-1 Standard 3.07 87 & 88 1/2-ton
610267-2 Trac Lok 3.54 87 & 88 1/2-ton
610267-3 Standard 3.54 87 & 88 1/2-ton
610267-4 Standard 3.50 87 & 88 1/2-ton
610267-6 Standard 4.09 87 & 88 1/2-ton
610268-1 Standard 3.07 87 & 88 1/2-ton
610268-2 Standard 3.54 87 & 88 1/2-ton
610266-1 Standard 3.54 87 & 88 SnowPlow
610266-2 Standard 3.50 87 & 88 SnowPlow
610306-1 Standard 3.54 88 3/4-ton
610306-2 Standard 4.09 88 3/4-ton
610309-1 Standard 3.07 88.5 F150 SnowPlow
610309-2 Trac Lok 3.54 88.5 F150 SnowPlow
610309-3 Standard 3.54 88.5 F150 SnowPlow
610309-4 Standard 4.09 88.5 F150 SnowPlow
610311-1 Standard 3.54 88.5 - 91 1/2-ton
610311-2 Standard 4.09 88.5 - 91 1/2-ton
610310-1 Standard 3.07 88.5 - 92 1/2-ton
610310-2 Standard 3.54 88.5 - 92 1/2-ton
610335-1 Standard 3.07 88.5 - 92 1/2-ton
610335-2 Trac Lok 3.54 88.5 - 92 1/2-ton
610335-3 Standard 3.54 88.5 - 92 1/2-ton
610335-4 Standard 4.09 88.5 - 92 1/2-ton
610407-1 Standard 3.07 92.5 1/2-ton
610407-3 Standard 3.54 92.5 1/2-ton
610408-1 Standard 3.07 92.5 1/2-ton
610408-3 Standard 3.54 92.5 1/2-ton
610408-4 Standard 4.09 92.5 1/2-ton
610408-6 Trac Lok 3.54 92.5 1/2-ton
610408-7 Standard 3.07 92.5 1/2-ton
610408-9 Standard 3.54 92.5 1/2-ton
610411-1 Standard 3.07 93 & 93.5 Bronco
610411-2 Trac Lok 3.54 93 & 93.5 Bronco
610411-3 Standard 3.54 93 & 93.5 Bronco
610411-4 Standard 4.09 93 & 93.5 Bronco
610411-7 Standard 3.07 93 & 93.5 Bronco
610411-8 Standard 3.54 93 & 93.5 Bronco
610414-1 Standard 3.07 93 & 93.5 F150
610414-3 Standard 3.54 93 & 93.5 F150
610414-4 Standard 4.09 93 & 93.5 F150
610414-6 Trac Lok 3.54 93 & 93.5 F150
610414-7 Standard 3.07 93 & 93.5 F150
610414-9 Standard 3.54 93 & 93.5 F150
610443-3 Standard 3.54 94 - 96 Bronco
610443-9 Standard 3.54 94 - 96 Bronco
610447-3 Standard 3.54 94 - 96 Bronco
610447-9 Standard 3.54 94 - 96 Bronco
610447-10 Standard 3.54 94 - 96 Bronco
610444-1 Standard 3.07 94 F150
610444-2 Standard 3.31 94 F150
610444-3 Standard 3.54 94 F150
610444-4 Standard 4.09 94 F150
610444-5 Trac Lok 3.31 94 F150
610444-6 Trac Lok 3.54 94 F150
610444-7 Standard 3.07 94 F150
610444-8 Standard 3.31 94 F150
610444-9 Standard 3.54 94 F150
610446-1 Standard 3.07 95 & 96 F150
610446-2 Standard 3.31 95 & 96 F150
610446-3 Standard 3.54 95 & 96 F150
610446-5 Trac Lok 3.31 95 & 96 F150
610446-6 Trac Lok 3.54 95 & 96 F150
610446-10 Standard 3.07 95 & 96 F150
610446-11 Standard 3.31 95 & 96 F150
610446-12 Standard 3.54 95 & 96 F150
610608-1 Standard 3.54 96.5 Bronco
610608-2 Standard 3.54 96.5 Bronco
610607-1 Standard 3.07 96.5 F150
610607-2 Standard 3.31 96.5 F150
610607-3 Standard 3.54 96.5 F150
610607-4 Standard 4.09 96.5 F150
610607-5 Trac Lok 3.31 96.5 F150
610607-6 Trac Lok 3.54 96.5 F150
610607-7 Standard 3.07 96.5 F150
610607-8 Standard 3.31 96.5 F150
610607-9 Standard 3.54 96.5 F150

Part of 1980-1986 Ford Bronco Exploded Parts Diagrams

Owner caption June 2024 · Photo 6414 of 6546

This document is an exploded parts diagram and legend for the Dana 44-IFS Twin Traction Beam front drive axle used on Ford Bronco and F-150 4x4 trucks equipped with automatic hublocks. The top portion shows a detailed exploded illustration of the entire axle assembly with 77 numbered callouts covering the axle arms, differential housing, ring gear and drive pinion, differential case, side gears and pinion gears, bearings, cups, shims, seals, slip shaft, axle shafts (RH/LH), universal joint kits, camber adjuster, pivot bushings, spindle, steering knuckle, ball joints (joint assemblies), rotor, hub, wheel bearings, and spindle locknuts/retainer. The lower portion is a two-column legend table listing each item number with its Ford base part number (where applicable) and description, for example, item 4 housing (3010), item 36 ring gear and drive pinion (4209), item 46 camber adjuster (3B404), item 57 spindle (3105), item 69 steering knuckle (3130 RH / 3131 LH), and items 75-77 inner locknut, retainer, and outer locknut (1195/1196/1197). A reader can use this diagram to identify part names, base part numbers, and assembly order for rebuilding or servicing the Dana 44-IFS front axle, hub, spindle, and knuckle components.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What axle does this diagram cover?: The Dana 44-IFS Twin Traction Beam front drive axle for Ford Bronco and F-150 4x4 with automatic hublocks.
What is the Ford base part number for the Dana 44 IFS camber adjuster?: Item 46, part number 3B404, is the camber adjuster.
What are the part numbers for the steering knuckle?: Item 69: 3130 for the right-hand knuckle and 3131 for the left-hand knuckle.
What parts make up the spindle bearing and locknut hardware?: Spindle 3105 (item 57), bearing 3123 (item 58), seal 1175 (item 59), inner locknut 1195 (item 75), retainer 1196 (item 76), and outer locknut 1197 (item 77).
What part numbers are listed for the front axle shaft assemblies?: Item 49 lists shaft assembly 3219 for the right-hand side and 3220 for the left-hand side; item 1 also shows 3219 as the RH shaft.
